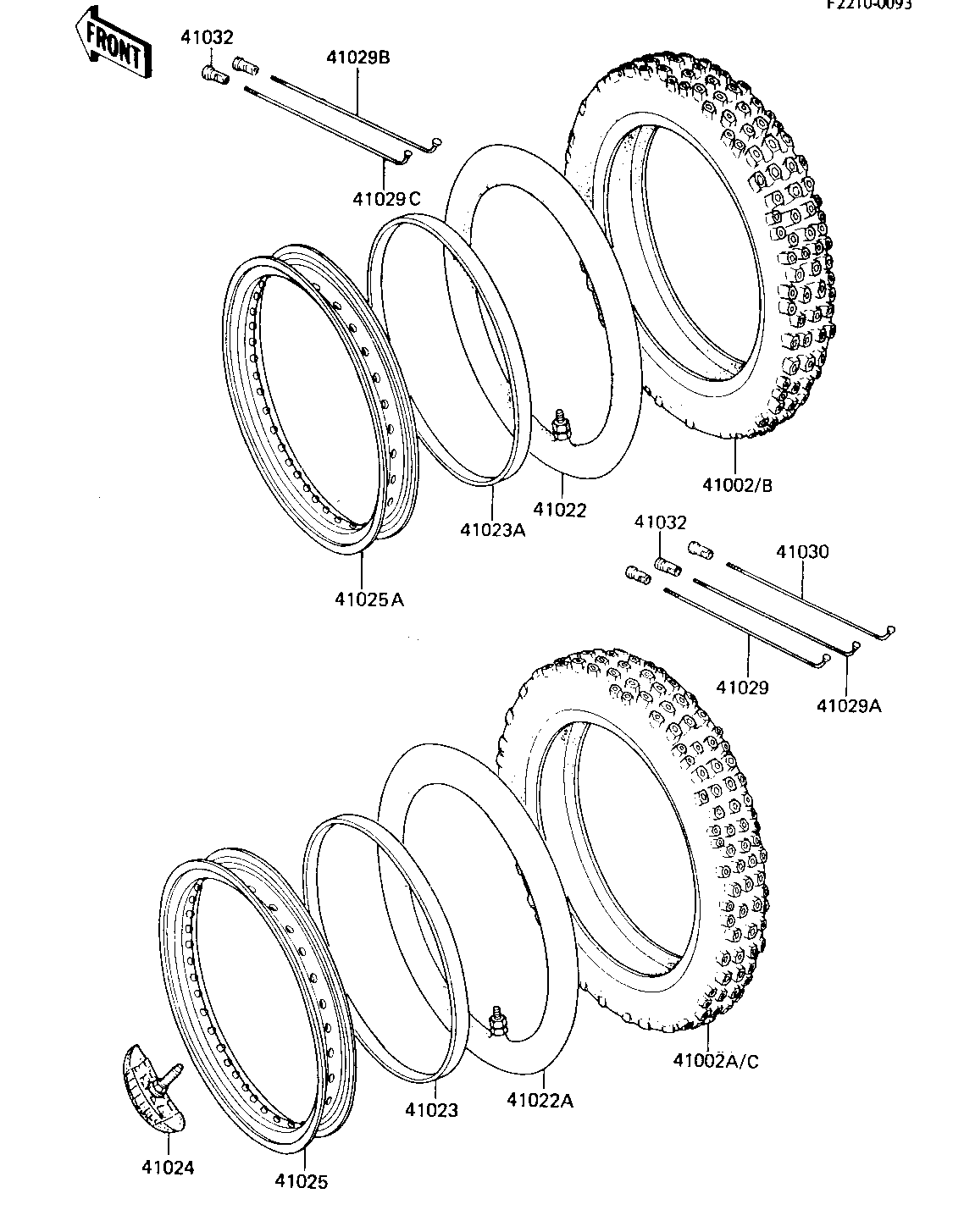

1985 KX80 - WHEELS/TIRES ('84 KX80-E2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TIRE | 41002 | 41002-1574 | 1 | (OPTION) | |
| TIRE 410-14 K490 R | 41002A | 41002-1222 | 1 | (OPTION) | |
| TIRE 275-17 K790 F | 41002B | 41002-1409 | 1 | ||
| TIRE 410-14 K790 R | 41002C | 41002-1410 | 1 | ||
| TUBE,TIRE,2.75-17 | 41022 | 41022-1039 | 1 | ||
| TUBE 275/410/425-14 | 41022A | 41022-042 | 1 | ||
| BAND-RIM,FR | 41023 | 41023-1067 | 1 | ||
| BAND,RIM,4.10-14 | 41023A | 41023-1025 | 1 | ||
| RIM,FR,1.40X17 | 41025A | 41025-1170 | 1 | ||
| SPOKE-INNER | 41029 | 41029-1078 | 8 | ||
| SPOKE-INNER | 41029A | 41029-1079 | 16 | ||
| SPOKE-INNER,FR,189MMX | 41029B | 41029-1113 | 14 | ||
| SPOKE-INNER,FR,185MMX | 41029C | 41029-1114 | 14 | ||
| SPOKE-OUTER | 41030 | 41030-1059 | 8 | ||
| NIPPLE-SPOKE | 41032 | 41032-1052 | 60 |
