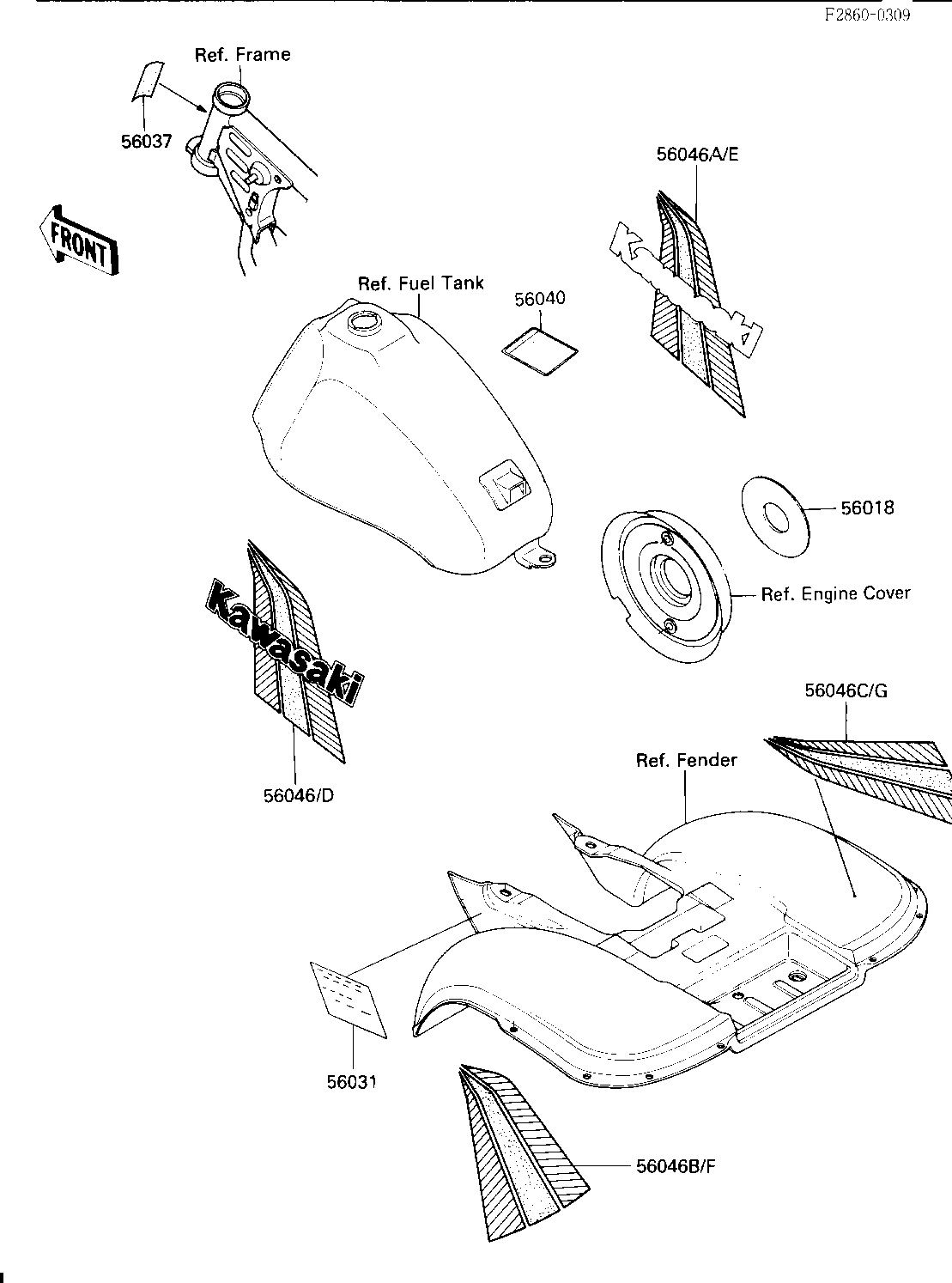

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,GENERATOR COVER | 56018 | 56018-1397 | 1 | ||
| LABEL-CHAIN TENSION | 56031 | 56031-4007 | 1 | ||
| LABEL,SPECIFICATION | 56037 | 56037-1293 | 1 | ||
| LABEL-WARNING,IMPORTA | 56040 | 56040-1127 | 1 | ||
| PATTERN,F-TANK,LH.EBN | 56046 | 56046-1220 | 1 | ||
| PATTERN,F-TANK,RH.EBN | 56046A | 56046-1221 | 1 | ||
| PATTERN,RR-FDR,LH,EBN | 56046B | 56046-1222 | 1 | ||
| PATTERN,RR-FDR,RH,EBN | 56046C | 56046-1223 | 1 | ||
| PATTERN,F-TANK,LH,RED | 56046D | 56046-1224 | 1 | ||
| PATTERN,F-TANK,RH,RED | 56046E | 56046-1225 | 1 | ||
| PATTERN,F-TANK,LH,RED | 56046F | 56046-1226 | 1 | ||
| PATTERN,F-TANK,RH,RED | 56046G | 56046-1227 | 1 |
