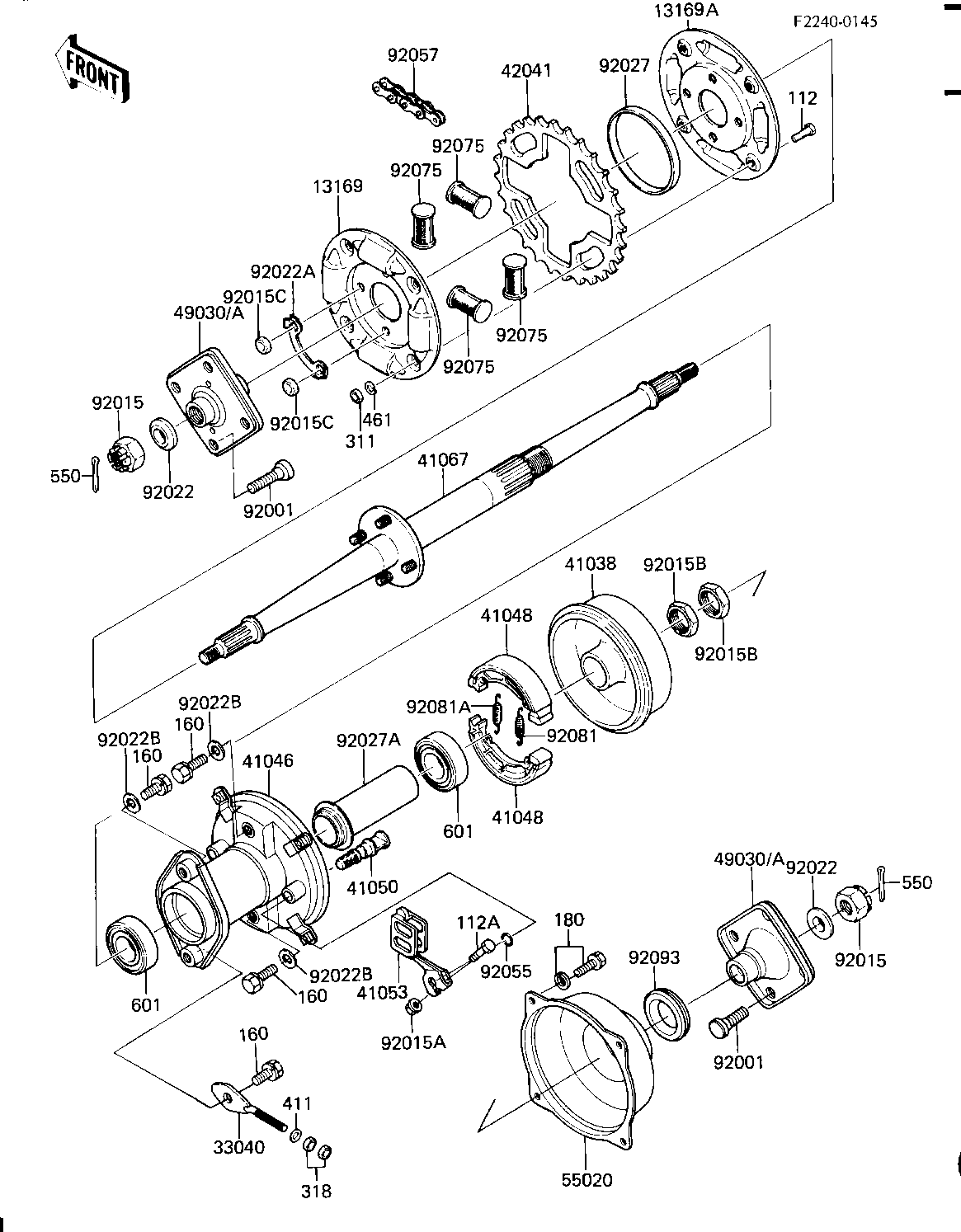

1986 KLT110 - REAR HUB/AXLE/BRAKE/CHAIN (KLT110-A1/A2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE,RR SPROCKETT 13169 13169-1754 1
PLATE-SPROCKET GUIDE 13169A 13169-4021 1
ADJUSTER-CHAIN 33040 33040-4006 1
DRUM 41038 41038-4010 1
HOUSING,BEARING 41046 41046-4006 1
SHOE-BRAKE,RR 41048 41048-1025 2
CAM SHAFT,REAR BRAKE 41050 42026-026 1
LEVER-BRAKE CAM 41053 41053-4004 1
AXLE-ASSY 41067 41067-4011 1
SPROCKET-HUB 42041 42041-4006 1
HUB,RR 49030A 49030-4022-8T 2
GUARD,RR-BRAKE-DRUM 55020 55020-4036 1
BOLT,LUG 92001 92001-4006 8
NUT,14MM 92015 42045-020 2
NUT-6MM 92015A 92015-1078 1
NUT,LOCK,32MM 92015B 92015-1493 2
NUT,10MM 92015C 92015-1429 4
WASHER 92022 92022-1229 2
WASHER,LOCK 92022A 92022-4025 2
WASHER,12.5X28X4.5 92022B 92022-4037 3
COLLAR,102X109X9 92027 92027-1731 1
COLLAR 92027A 92027-4025 1
"0" RING,11MM 92055 92055-004 1
DR CHAIN,EK428SH 100L 92057 92057-4010 1
DAMPER 92075 92075-4034 4
SPRING,BRAKE SHOE 92081 92081-1550 1
SPRING,BRAKE SHOE 92081A 92081-1766 1
SEAL 92093 92093-4008 1
BOLT-UPSET,6X12 112 112G0612 4
1BOLT-UPSET 112A 112H0640 1
BOLT-FINE-WS 160 160H1225 4
BOLT-UPSET-WS 180 180D0612 4
NUT 6MM 311 311B0600 4
NUT 8MM 318 318G0800 2
WASHER PLAIN 8MM 411 411B0800 1
WASHER SPRING 6MM 461 461F0600 4
PIN,COTTER 550 550D3230 2
BEARING-BALL 601 601A6007UU 2
