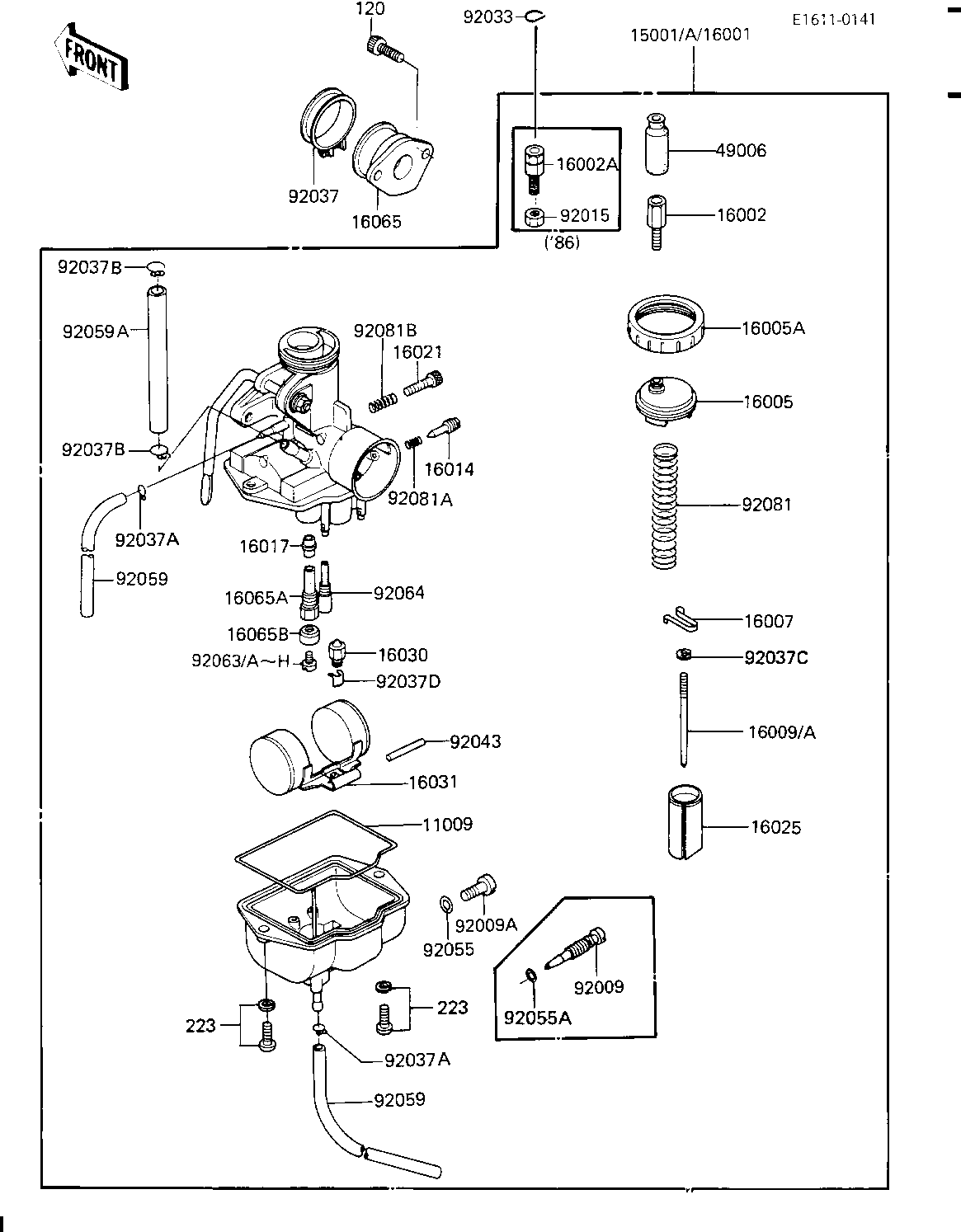

1986 KLT110 - CARBURETOR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FLOAT CHAMBER 11009 11009-1375 1
CARBURETOR-ASSY 15001 15001-1139 1 CN
CARBURETOR-ASSY 15001A 15001-1214 1 US
ADJUSTER-CABLE 16002 16002-1051 1 CN
ADJUSTER-CABLE 16002A 16002-1056 1 US
TOP-CHAMBER,MIXING 16005 16005-1052 1
TOP-CHAMBER,MIXING 16005A 16005-1053 1
SEAT-SPRING 16007 16007-1103 1
NEEDLE-JET 16009 16009-1217 1 CN
NEEDLE-JET,N17B 16009A 16009-1286 1 US
SCREW-PILOT AIR 16014 16014-1051 1
JET-NEEDLE 16017 16017-1211 1
SCREW-THROTTLE STOP 16021 16021-1102 1
VALVE-THROTTLE,C.A 3. 16025 16025-1103 1
VALVE-FLOAT 16030 16030-1052 1
FLOAT 16031 16031-1053 1
HOLDER-CARBURETOR 16065 16065-1067 1
HOLDER-CARBURETOR,NEE 16065A 16065-1105 1
HOLDER-CARBURETOR,NEE 16065B 16065-1106 1
BOOT,CABLE ADJUSTER 49006 49006-1157 1 CN
SCREW,DRAIN 92009 92009-1095 1
NUT,CABLE ADJUST LOCK 92015 92015-1574 1 US
CIRCLIP 92033 92036-018 1 US
CLAMP,CONNECTOR 92037 92037-1127 1
CLAMP,TUBE,OVERFLOW 92037A 92037-1142 2
CLAMP,TUBE 92037B 92037-1682 2
CLAMP,JET NEEDLE 92037C 92037-1401 1
CLAMP,FLOAT VALVE 92037D 92037-1476 1
PIN,FLOAT 92043 92043-1209 1
"O" RING,DRAIN SCREW 92055A 92055-1053 1
TUBE,3.5X6.5X330,OVER 92059 92059-1380 2
TUBE,5.3X10.5X180 92059A 92059-1381 1
JET-MAIN,#102 92063 92063-1301 1 CN
JET-MAIN,#102 92063A 92063-1301 1 US
JET-MAIN,#98 92063B 92063-1302 1 US
JET-MAIN,#98 92063C 92063-1302 1 CN
JET-MAIN,#100 92063D 92063-1303 1 (RACING USE ONLY)
JET-MAIN,#105 92063E 92063-1304 1 CN
JET-MAIN,#108 92063F 92063-1305 1 CN
JET-MAIN,#95 92063G 92063-1320 1 US
JET-MAIN,#92 92063H 92063-1321 1 US
JET-PILOT 92064 92064-1102 1
SPRING,THROTTLE VALVE 92081 92081-1630 1
SPRING,PILOT AIR SCRE 92081A 92081-1631 1
SPRING,STOP SCREW 92081B 92081-1632 1
BOLT,6X14 120 120P0614 2
SCREW-PAN HEAD,4X12MM 223 223B0412 2
