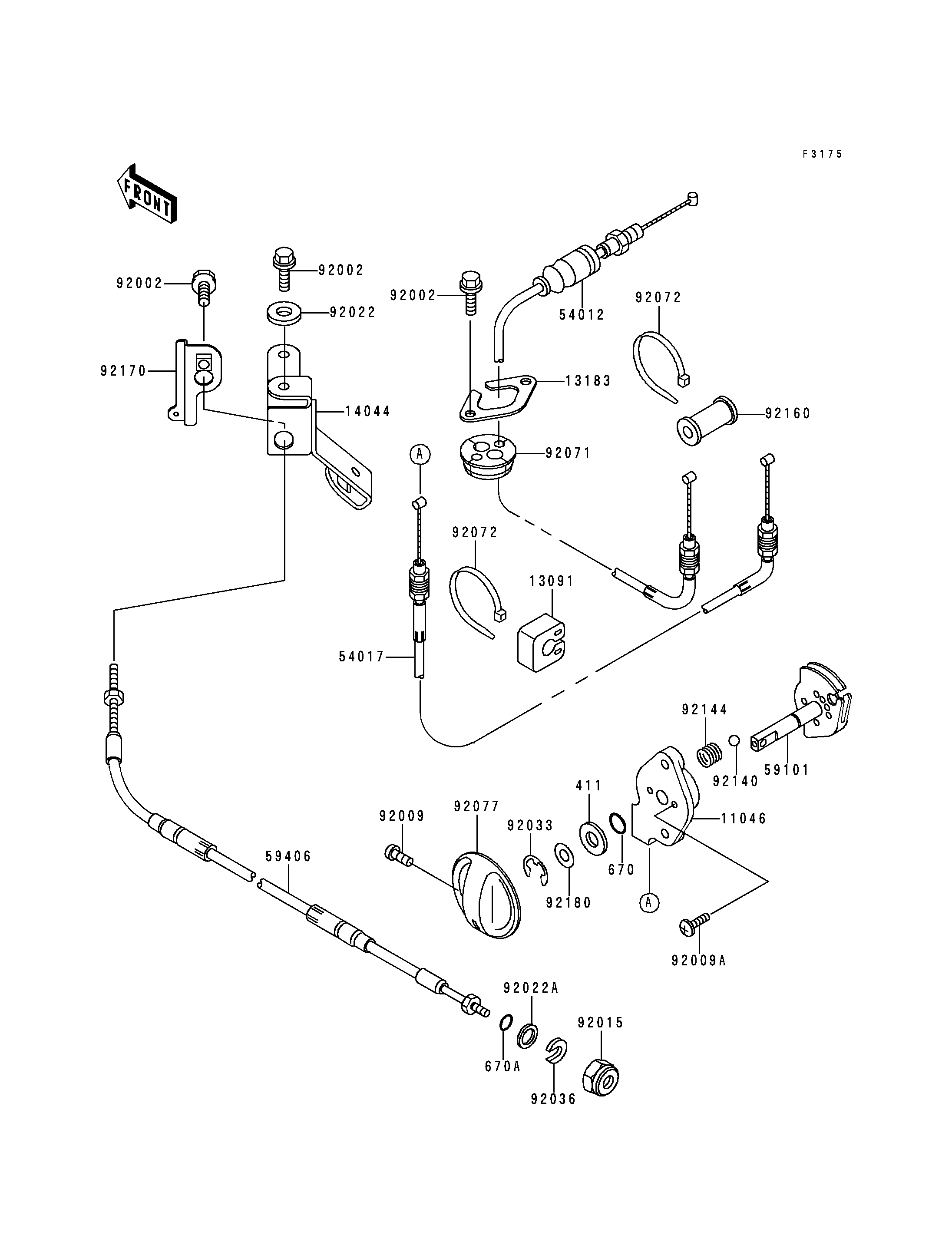

1998 Xi Sport - Cables

DOWNLOAD PDF
SELECT A NEW PART
411
670
670A
11046
13091
13183
14044
54012
54017
59101
59406
92002
92002
92002
92009
92009A
92015
92022
92022A
92033
92036
92071
92072
92072
92077
92140
92144
92160
92170
92180
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER-PLAIN,8MM 411 411S0800 1
O RING,8MM 670 670B1508 1
O RING,11MM 670A 670B2011 1
BRACKET,STARTER CABLE 11046 11046-3712 1
HOLDER 13091 13091-3780 1
PLATE 13183 13183-3810 1
HOLDER-CABLE 14044 14044-3718 1
CABLE-THROTTLE 54012 54012-3744 1
CABLE-STARTER 54017 54017-3725 1
REEL,STARTER CABLE 59101 59101-3704 1
CABLE-STRG 59406 59406-3728 1
BOLT,6X16 92002 92002-3728 5
SCREW,4X8 92009 92009-3729 1
SCREW,5X16 92009A 92009-3789 2
NUT,20MM 92015 92015-526 1
WASHER,6.5X20X1.5 92022 92022-3710 2
WASHER 92022A 92022-535 1
RING-SNAP,7MM 92033 92033-3704 1
RING-SNAP 92036 92036-501 1
GROMMET,HARNESS 92071 92071-3790 1
BAND 92072 92072-3778 2
KNOB 92077 92077-3717 1
BALL,3MM 92140 92140-3702 2
SPRING 92144 92144-3712 2
DAMPER 92160 92160-1129 1
CLAMP,CABLE 92170 92170-3733 1
SHIM,8.5X18X0.15 92180 92180-3702 AR
