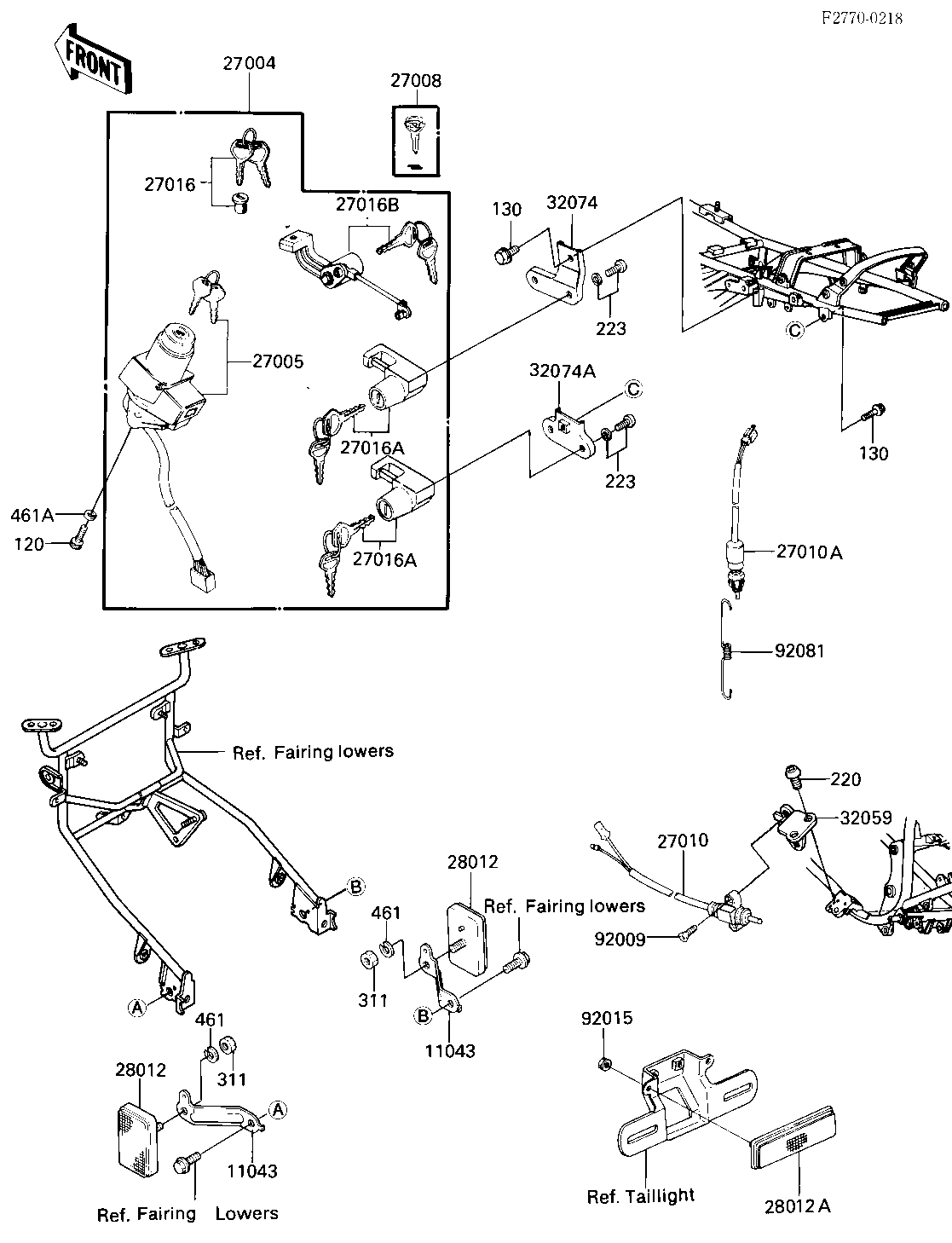

1985 GPz 750 Turbo - IGNITION SWITCH/LOCKS/REFLECTORS
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET-B,REFLECTOR | 11043 | 11043-1456 | 2 | ||
| SWITCH-ASSY | 27004 | 27004-5211 | 1 | ||
| SWITCH-ASSY-IGNITION | 27005 | 27005-5035 | 1 | ||
| KEY-LOCK,BLANK | 27008 | 27008-1103 | 1 | (OPTION) | |
| SWITCH,SIDE STAND | 27010 | 27010-1065 | 1 | ||
| SWITCH,BRAKE LAMP | 27010A | 27010-1093 | 1 | ||
| LOCK-ASSY,FUEL TANK | 27016 | 27016-5068 | 1 | ||
| LOCK-ASSY,HELMET | 27016A | 27016-5070 | 2 | ||
| LOCK-ASSY,SEAT | 27016B | 27016-5071 | 1 | ||
| REFLECTOR,REFLEX(FRON | 28012 | 28012-1003 | 2 | ||
| REFLECTOR,REAR REFLEX | 28012A | 28012-1005 | 1 | ||
| BRACKET-SWITCH,SIDE S | 32059 | 32059-1056 | 1 | ||
| BRACKET-LOCK,HELMET,F | 32074 | 32074-1058 | 1 | ||
| BRACKET-LOCK,HELMET,R | 32074A | 32074-1059 | 1 | ||
| SCREW,5X16 | 92009 | 92009-1305 | 2 | ||
| NUT,FLANGED,5MM | 92015 | 92015-1259 | 2 | ||
| SPRING,BRAKE LAMP SW | 92081 | 92081-1146 | 1 | ||
| BOLT-SOCKET | 120 | 120T0616 | 2 | ||
| BOLT,FLANGED,6X10 | 130 | 130B0610 | 2 | ||
| SCREW-PAN-CROS,5X12,B | 220 | 220C0512 | 2 | ||
| SCREW-PAN-WS-CROS | 223 | 223B0508 | 4 | ||
| NUT,5MM | 311 | 311B0500 | 2 | ||
| WASHER SPRING 5MM | 461 | 461F0500 | 2 | ||
| WASHER SPRING 6MM | 461A | 461F0600 | 2 |
