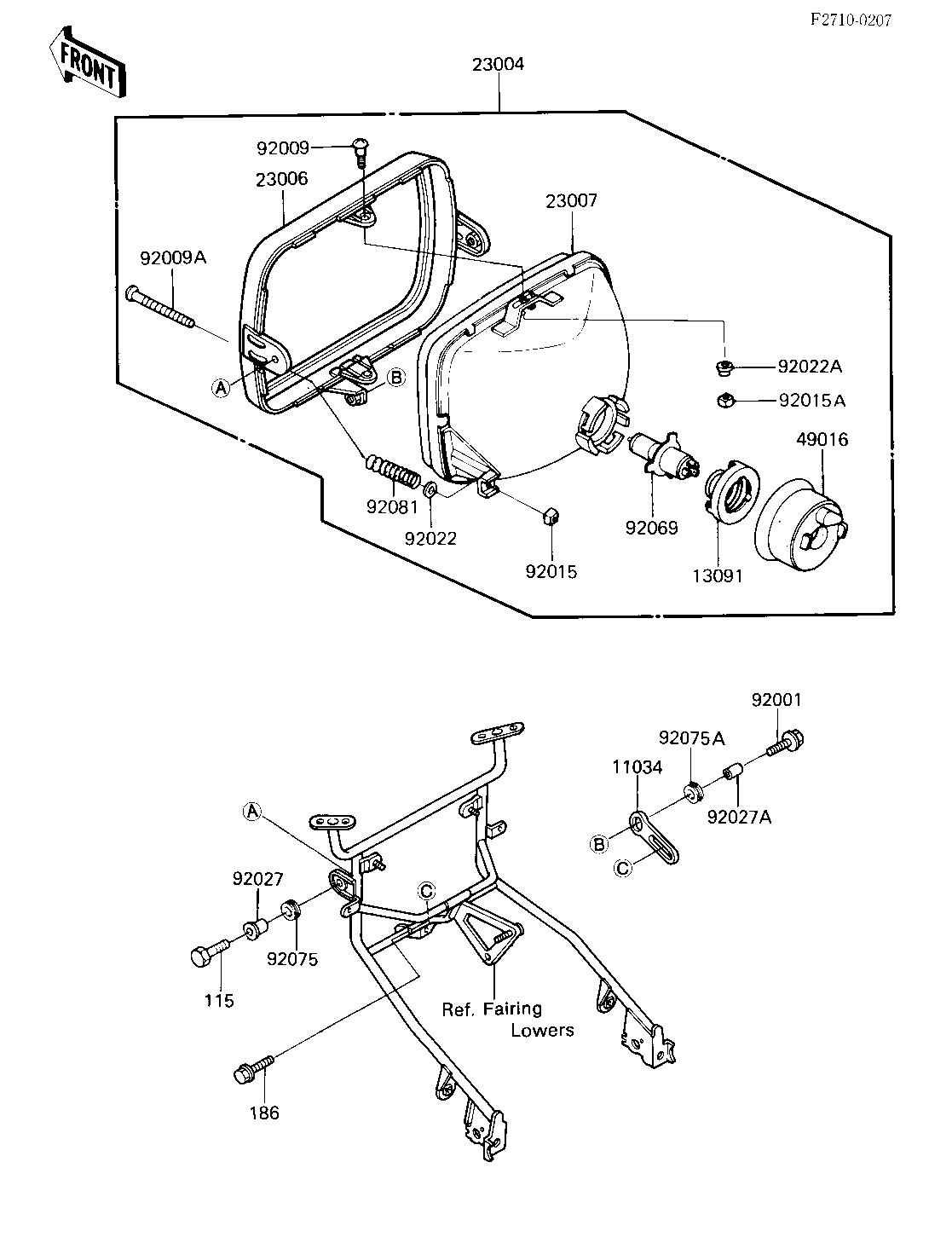

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,HEAD LIGHT | 11034 | 23064-022 | 1 | ||
| HOLDER,HEAD LAMP SOCK | 13091 | 13091-1036 | 1 | ||
| LAMP-HEAD | 23004 | 23004-1151 | 1 | ||
| RIM-LAMP | 23006 | 23006-1051 | 1 | ||
| LENS-COMP | 23007 | 23007-1041 | 1 | ||
| COVER,HEAD LAMP SOCKE | 49016 | 49016-1023 | 1 | ||
| BOLT,6X22 | 92001 | 92002-1262 | 1 | ||
| SCREW-PAN HEAD,5X12 | 92009 | 23019-023 | 2 | ||
| SCREW,HEAD LAMP LENS | 92009A | 92009-1047 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 92015 | 23023-018 | 1 | ||
| NUT,HEAD LAMP RIM FIT | 92015A | 23020-023 | 2 | ||
| WASHER | 92022 | 23021-004 | 1 | ||
| WASHER-PLAIN,5MM | 92022A | 23021-012 | 1 | ||
| COLLAR,FUEL TANK FITT | 92027 | 92027-1134 | 2 | ||
| COLLAR,REAR FENDER | 92027A | 92027-162 | 1 | ||
| BULB,12V-60/55W | 92069 | 92069-1002 | 1 | ||
| DAMPER | 92075 | 92160-1007 | 2 | ||
| DAMPER RUBBER,RR FENR | 92075A | 92075-209 | 1 | ||
| SPRING,HEAD LAMP LENS | 92081 | 92081-1103 | 1 | ||
| BOLT-SMALL-UPSET 8X25 | 115 | 115G0825 | 2 | ||
| BOLT | 186 | 186B0614 | 1 |
| BRACKET,HEAD LIGHT | |
| REF # | 11034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,HEAD LAMP SOCK | |
| REF # | 13091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LAMP-HEAD | |
| REF # | 23004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM-LAMP | |
| REF # | 23006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LENS-COMP | |
| REF # | 23007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,HEAD LAMP SOCKE | |
| REF # | 49016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X22 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN HEAD,5X12 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,HEAD LAMP LENS | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,HEAD LAMP RIM FIT | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN,5MM | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,FUEL TANK FITT | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,REAR FENDER | |
| REF # | 92027A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BULB,12V-60/55W | |
| REF # | 92069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,RR FENR | |
| REF # | 92075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,HEAD LAMP LENS | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-SMALL-UPSET 8X25 | |
| REF # | 115 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 186 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
