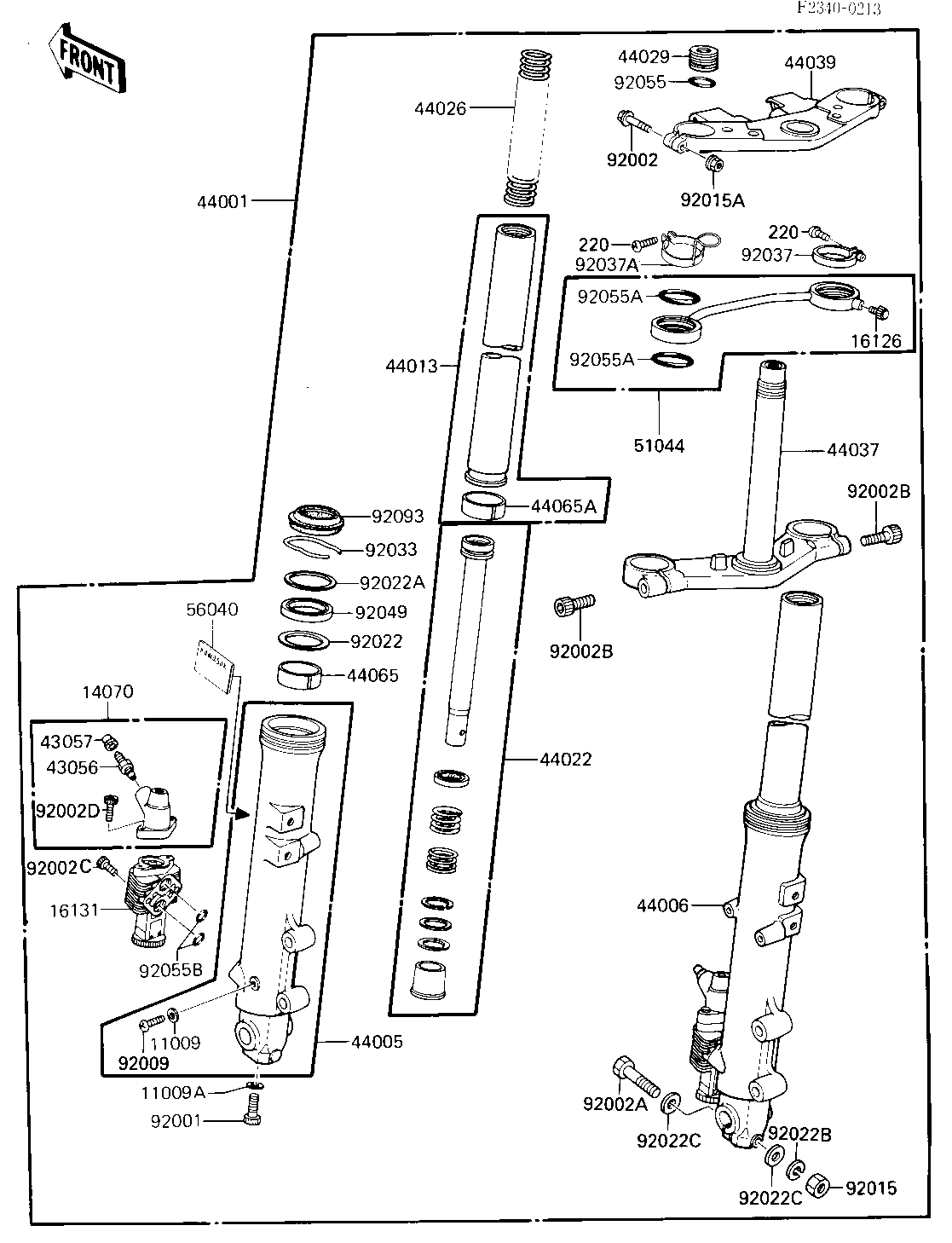

1985 GPz 750 Turbo - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET FORK DRAIN PLG 11009 44045-002 2
GASKET,FORK CYLINDER 11009A 44045-057 2
BODY-BREATHER,FORK 14070 14070-1055 2
VALVE AIR 16126 16126-1052 1
BODY-VALVE,RELIEF 16131 16131-1054 2
BREEDER 43056 43056-003 2
CAP,BREEDER 43057 43057-003 2
FORK-FRONT 44001 44001-1504 1
PIPE-LEFT FORK OUTER 44005 44005-1130 1
PIPE-RIGHT FORK OUTER 44006 44006-1130 1
PIPE-FORK INNER 44013 44013-1208 2
CYLINDER-FORK 44022 44022-1157 2
SPRING-FRONT FORK 44026 44026-1263 2
SEAT-FORK SPRING 44029 44029-1035 2
HOLDER-FORK UNDER 44037 44037-1154 1
HOLDER-FORK UPPER 44039 44039-1073 1
BUSHING-FRONT FORK 44065 44065-1051 2
BUSHING-FRONT FORK 44065A 44065-1058 2
TUBE-ASSY,AIR,FORK 51044 51044-1027 1
LABEL-WARNING,FRONT F 56040 56040-1030 1
BOLT-FORK CYLINDER 92001 44041-040 2
BOLT,FLANGED,8X55 92002 92002-1158 2
BOLT,8X60 92002A 92002-1163 1
BOLT,SOCKET,12X30 92002B 92002-1164 2
BOLT,SOCKET,6X16 92002C 92002-1166 4
BOLT,SOCKET,5X12 92002D 92002-1289 4
SCREW,4X8 92009 92009-1324 2
NUT,8MM 92015 92015-1400 1
NUT,FLANGED,8MM 92015A 92015-1408 2
WASHER,FORK OUTER PIP 92022 92022-1455 2
WASHER,FORK OUTER PIP 92022A 92022-1524 2
BOLT,THROTTLE STOP SC 92002B 92002-1552 1
WASHER,PLAIN,8MM 92002C 92022-1554 1
SNAP RING,FORK OUTER 92033 92033-1047 2
CLAMP,FRONT FORK 92037 92037-1454 1
CLAMP,LH 92037A 92037-1499 1
SEAL-OIL,FORK OUTER T 92049 92049-1372 2
RING-O,FORK SPRING SE 92055 92055-1132 2
RING-O,TUBE ASSY 92055A 92055-1164 4
RING-O,ANTI-DIVE UNIT 92055B 92055-1201 4
SEAL,FORK OUTER TUBE 92093 92093-1314 2
SCREW-PAN-CROS 220 220C0412 2
