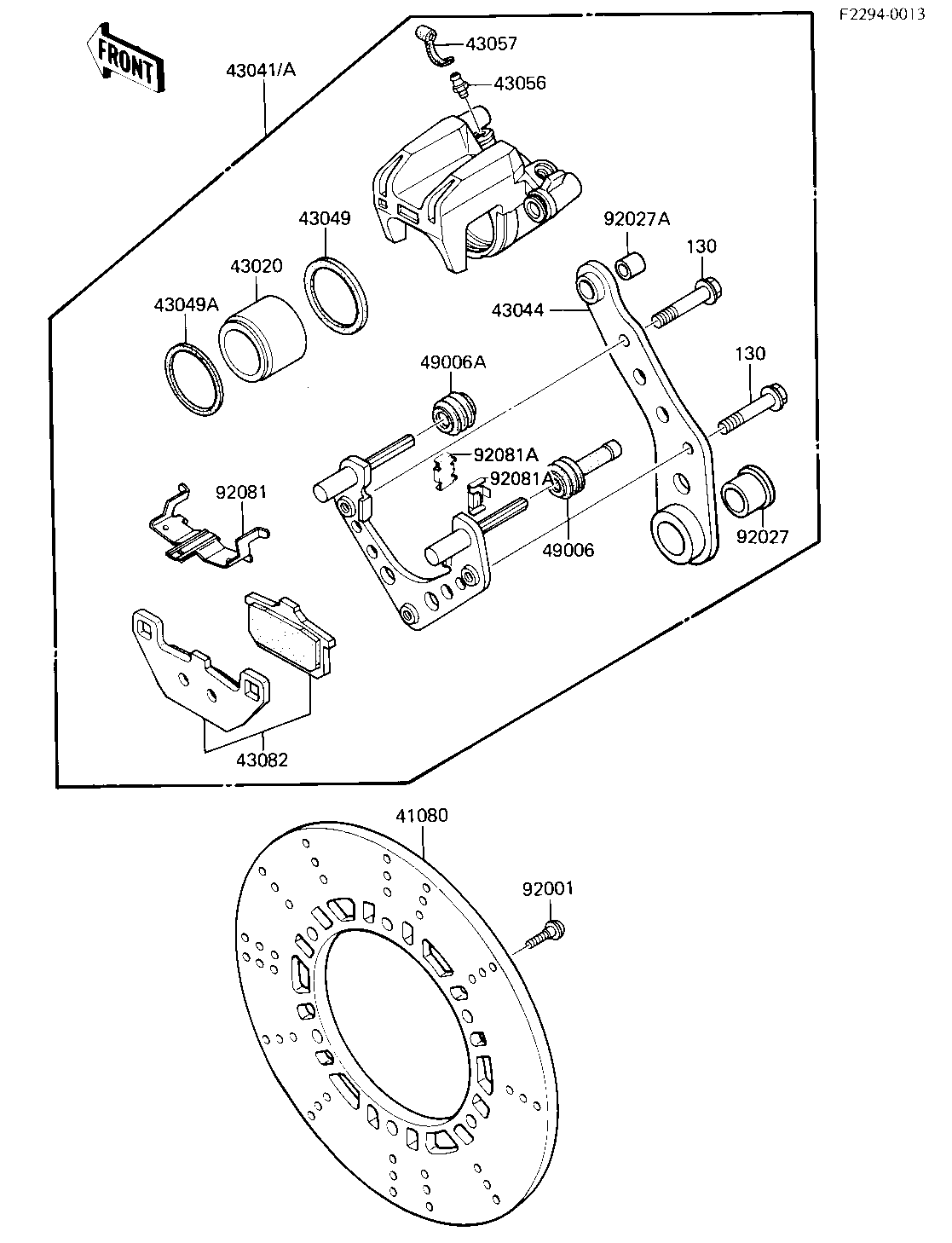

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DISC,RR,SILVER 41080 41080-1113 1
PISTON-COMP-BRAKE 43020 43020-1066 1
CALIPER-ASSY,RR 43041A 43041-1186 1
HOLDER-COMP-CALIPER,R 43044 43044-1038 1
RING,PISTON SEAL 43049 43049-002 1
PACKING,PISTON 43049A 43049-1028 1
BREEDER 43056 43056-003 1
CAP,BREEDER 43057 43057-003 1
PAD-ASSY-BRAKE 43082 43082-1062 1
BOOT,CALIPER 49006 49006-1094 1
BOOT,CALIPER 49006A 49006-1095 1
BOLT,SOCKET,8X30 92001 92001-1951 6
COLLAR,RR CALIPER,ID= 92027 92027-1655 1
COLLAR,10.5X18X17 92027A 92027-1656 1
SPRING,PAD 92081 92081-1525 1
SPRING,PAD STOPPER 92081A 92081-1661 2
BOLT-FLANGED,10X14 130 130G1014 2
