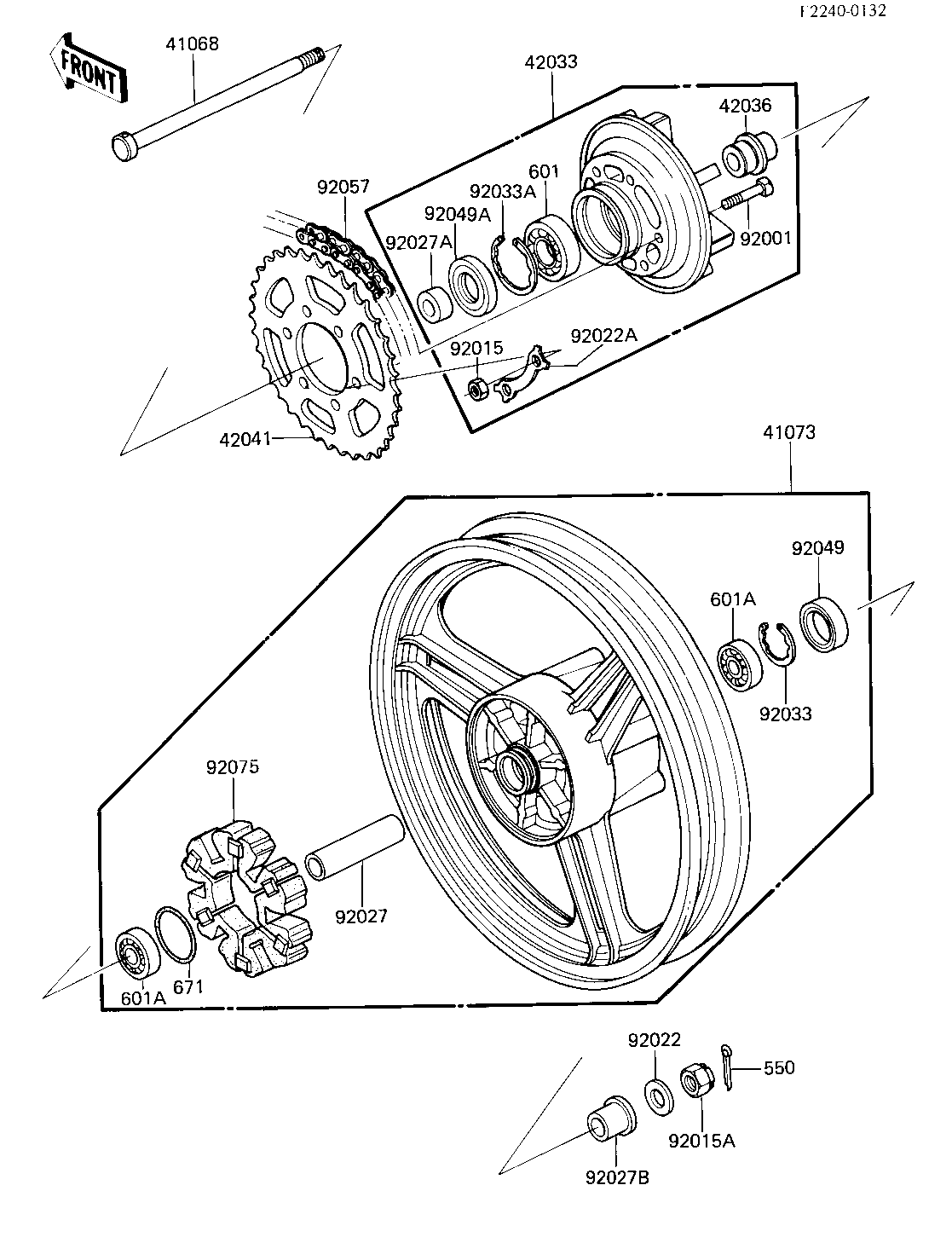

1985 GPz 750 Turbo - REAR WHEEL/HUB/CHAIN
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
AXLE,RR | 41068 | 41068-1126 | 1 | ||
WHEEL-ASSY,RR,SOLID,F | 41073 | 41073-1216-B1 | 1 | ||
COUPLING-ASSY,RR HUB, | 42033 | 42033-1055 | 1 | ||
SLEEVE,RR HUB L=33M/M | 42036 | 42036-1036 | 1 | ||
SPROCKET-HUB,46T | 42041 | 42041-1163 | 1 | ||
BOLT | 92001 | 92001-161 | 6 | ||
NUT 10MM | 92015 | 42045-005 | 6 | ||
NUT CASTLE,16MM | 92015A | 92015-055 | 1 | ||
WASHER SLEEVE | 92022 | 42046-009 | 1 | ||
WASHER,LOCK | 92022A | 92022-1212 | 3 | ||
COLLAR,17.2X25X96 | 92027 | 92027-1555 | 1 | ||
COLLAR,RR AXLE,LH | 92027A | 92027-1562 | 1 | ||
COLLAR,17X28X33 | 92027B | 92027-1566 | 1 | ||
CIRCLIP,47M/M | 92033 | 92033-1042 | 1 | ||
CIRCLIP,62M/M | 92033A | 92033-1044 | 1 | ||
OIL SEAL | 92049 | 92050-027 | 1 | ||
OIL SEAL | 92049A | 92050-027 | 1 | ||
DR CHAIN EK630 98L | 92057 | 92057-1152 | 1 | ||
SHOCK DAMPER,REAR HUB | 92075 | 42014-033 | 1 | ||
PIN-COTTER,4.0X35 | 550 | 550D4035 | 1 | ||
BALL BEARING,#6206 | 601 | 601B6206 | 1 | ||
BRG,BALL,#6303ZZC3 | 601A | 601B6303ZZ | 2 | ||
"0" RING,65MM | 671 | 671B2565 | 1 |
