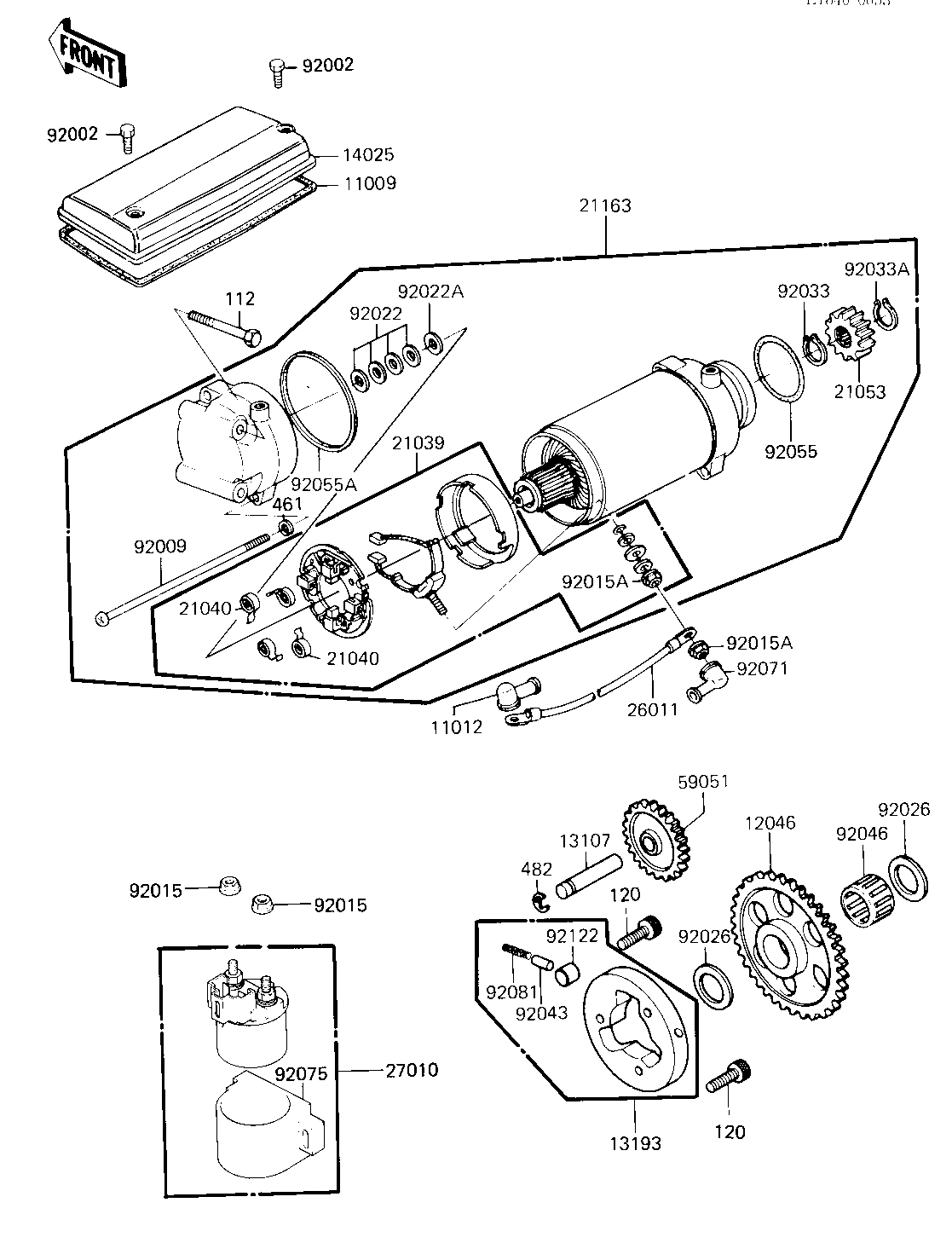

1985 GPz 750 Turbo - STARTER MOTOR/STARTER CLUTCH
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,STARTER COVER | 11009 | 21166-003 | 1 | ||
CAP,TERMINAL | 11012 | 11012-1354 | 1 | ||
SPROCKET,STARTER,58T | 12046 | 12046-1032 | 1 | ||
SHAFT,IDLE GEAR | 13107 | 21143-003 | 1 | ||
CLUTCH-ASSY-ONEWAY | 13193 | 13193-1012 | 1 | ||
COVER,STARTER,F.BLACK | 14025 | 14025-1441 | 1 | ||
BRUSH,CARBON | 21039 | 21039-1053 | 1 | ||
SPRING-BRUSH | 21040 | 21040-1003 | 4 | ||
PINION,STARTER | 21053 | 21053-004 | 1 | ||
STARTER-ELECTRIC | 21163 | 21163-1057 | 1 | ||
WIRE,STARTER MOTOR | 26011 | 26011-1073 | 1 | ||
SWITCH,MAGNETIC | 27010 | 27010-1235 | 1 | ||
GEAR,IDLE,29T | 59051 | 21167-004 | 1 | ||
BOLT,6X10 | 92002 | 92002-1098 | 2 | ||
SCREW,PAN HEAD,6X130 | 92009 | 21099-006 | 2 | ||
NUT-6MM | 92015 | 92015-1078 | 2 | ||
NUT-6MM | 92015A | 92015-1078 | 2 | ||
WASHER,THRUST,0.2T | 92022 | 21025-011 | 4 | ||
WASHER,THRUST,0.8T | 92022A | 92022-1132 | 1 | ||
SPACER,25X36X3.2 | 92026 | 92026-1025 | 2 | ||
CIRCLIP | 92033 | 92033-034 | 1 | ||
CIRCLIP,13M/M | 92033A | 92033-037 | 1 | ||
PIN | 92043 | 92043-087 | 3 | ||
BRG,NEEDLE,K253017 | 92046 | 92046-056 | 1 | ||
"0" RING,40M/M | 92055 | 21027-008 | 1 | ||
"0" RING,STARTER MOTR | 92055A | 92055-1086 | 1 | ||
GROMMET,CORD | 92071 | 21017-017 | 1 | ||
DAMPER MAG SWITCH SHK | 92075 | 21064-002 | 1 | ||
SPRING | 92081 | 92081-110 | 3 | ||
ROLLER | 92122 | 92122-004 | 3 | ||
BOLT-UPSET | 112 | 112G0660 | 2 | ||
BOLT,SOCKET,8X12 | 120 | 120P0812 | 3 | ||
WASHER SPRING 6MM | 461 | 461F0600 | 2 | ||
CIRCLIP 12MM | 482 | 482K0200 | 1 |
