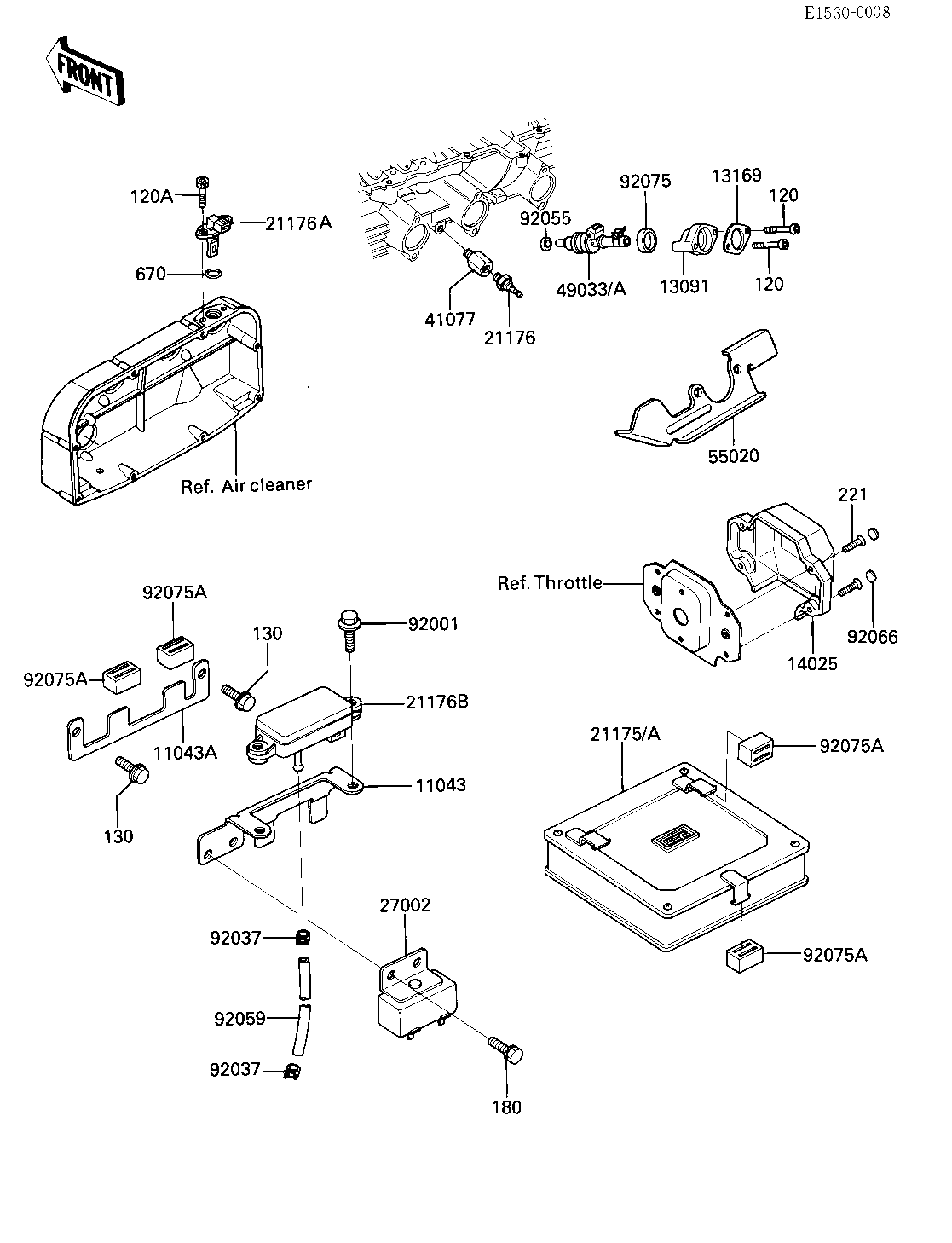

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-B,SENSOR 11043 11043-1231 1
BRACKET,SENSOR 11043A 11043-1473 1
HOLDER,FUEL INJECTOR 13091 13091-1092 4
PLATE,FUEL INJECTOR,B 13169 13169-1434 4
COVER,THROTTLE SENSOR 14025 14025-1753 1
CONTROL UNIT-ELECTRON 21175 21175-1051 1 CA,US
CONTROL UNIT-ELECTRONIC (Canad 21175A 21175-1053 1 CN
SENSOR-TEMPERATURE 21176 21176-1002 1
SENSOR,AIR TEMPERATUR 21176A 21176-1051 1
SENSOR,PRESSURE 21176B 21176-1052 1
RELAY ASSY 27002 27002-1007 1
ADAPTER,SENSOR 41077 41077-1004 1
NOZZLE-INJECTION 49033 49033-1052 4 CA,US
49033-1052 (Canada) 49033A 49033-1053 4 CN
GUARD,FUEL INJECTOR 55020 55020-1185 7
BOLT 92001 92001-1826 2
CLAMP,TUBE 92037 92037-1461 2
INSULATOR,FUEL INJECT 92055 92055-1082 4
TUBE,4X9X80 92059 92059-1365 1
PLUG,THR SENSOR COVER 92066 92066-1107 4 CA,US
INSULATOR,FUEL INJECT 92075 92075-1240 4
DAMPER,CONTROL UNIT 92075A 92075-1312 5
BOLT-SOCKET 120 120S0540 8
BOLT-SOCKET 120A 120S0610 2
BOLT-FLANGED,6X12,BLA 130 130J0612 2
BOLT 6X12 180 180B0612 2
SCREW-CSK-CROS 221 221C0310 4
"O" RING,12MM 670 670B2012 1
