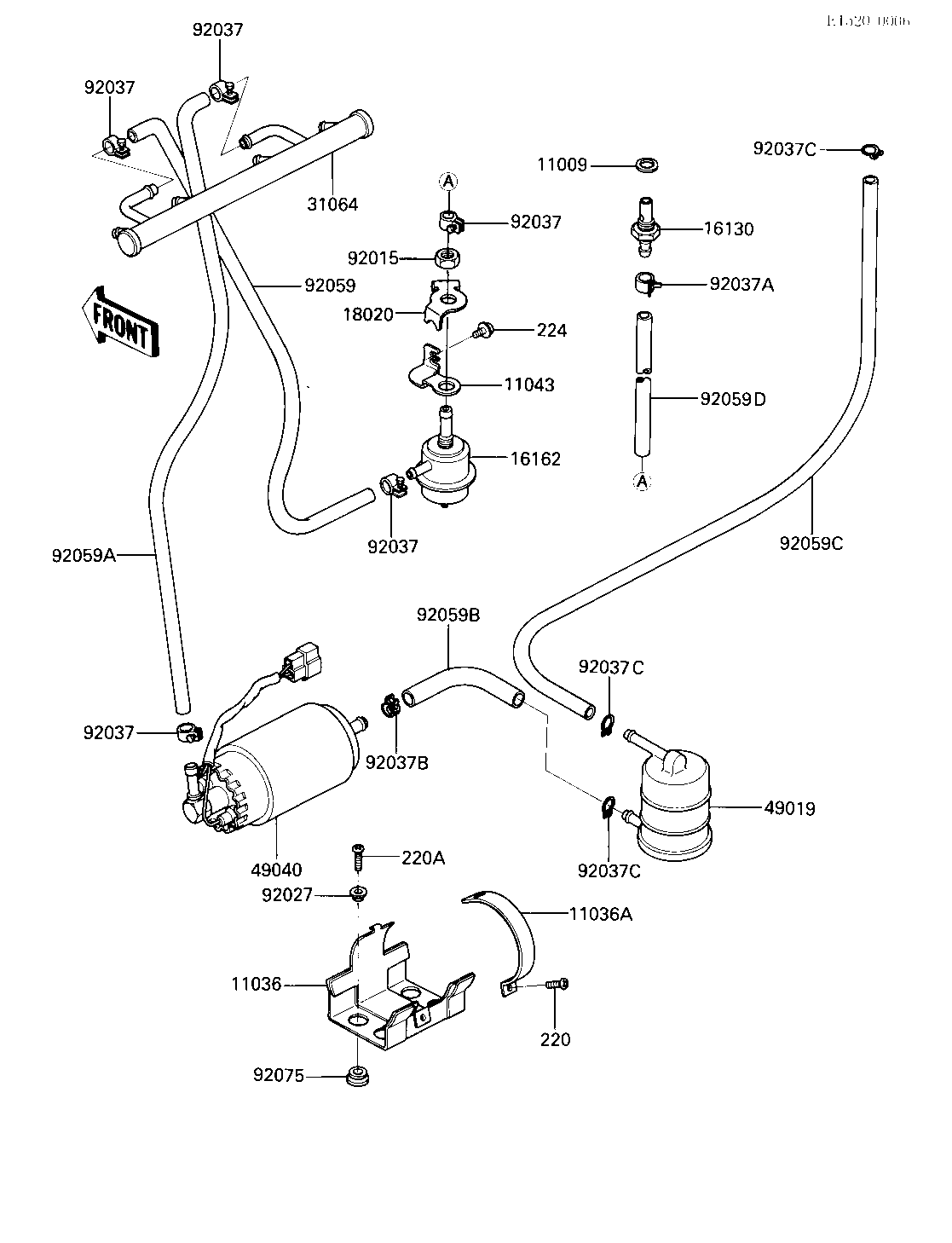

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,RELIEF VLV FIT | 11009 | 11009-1182 | 1 | ||
BRACKET-A,FUEL PUMP,L | 11036 | 11036-1632 | 1 | ||
BRACKET-A,FUEL PUMP,U | 11036A | 11036-1633 | 1 | ||
BRACKET-B,FUEL REGULA | 11043 | 11043-1230 | 1 | ||
VALVE ASSY,RELIEF | 16130 | 16130-1002 | 1 | ||
REGULATOR-FUEL | 16162 | 16162-1051 | 1 | ||
BAFFLE,FUEL REGULATOR | 18020 | 18020-1125 | 1 | ||
PIPE-COMP,FUEL | 31064 | 31064-1005 | 1 | ||
FILTER,FUEL | 49019 | 49019-1001 | 1 | ||
PUMP-FUEL | 49040 | 49040-1051 | 1 | ||
NUT,12MM | 92015 | 92015-1395 | 1 | ||
COLLAR | 92027 | 92027-194 | 4 | ||
CLAMP | 92037 | 92037-1178 | 5 | ||
CLAMP | 92037A | 92037-1181 | 1 | ||
CLAMP,FUEL TUBE,ID-15 | 92037B | 92037-1365 | 1 | ||
CLAMP,FUEL TUBE | 92037C | 92037-1271 | 3 | ||
TUBE,7.5X13.5X272 | 92059 | 92059-1121 | 1 | ||
TUBE,FUEL PUMP,L=330 | 92059A | 92059-1176 | 1 | ||
TUBE,FILTER-PUMP | 92059B | 92059-1361 | 1 | ||
TUBE,7.5X13.5X470 | 92059C | 92059-1362 | 1 | ||
TUBE,7.5X13.5X190 | 92059D | 92059-1363 | 1 | ||
DAMPER RUBBER | 92075 | 92075-277 | 4 | ||
SCREW-PAN-CROS | 220 | 220B0514 | 1 | ||
SCREW PAN HEAD 6X20 | 220A | 220B0620 | 4 | ||
SCREW-PAN-WP-CROS | 224 | 224C0508 | 2 |
