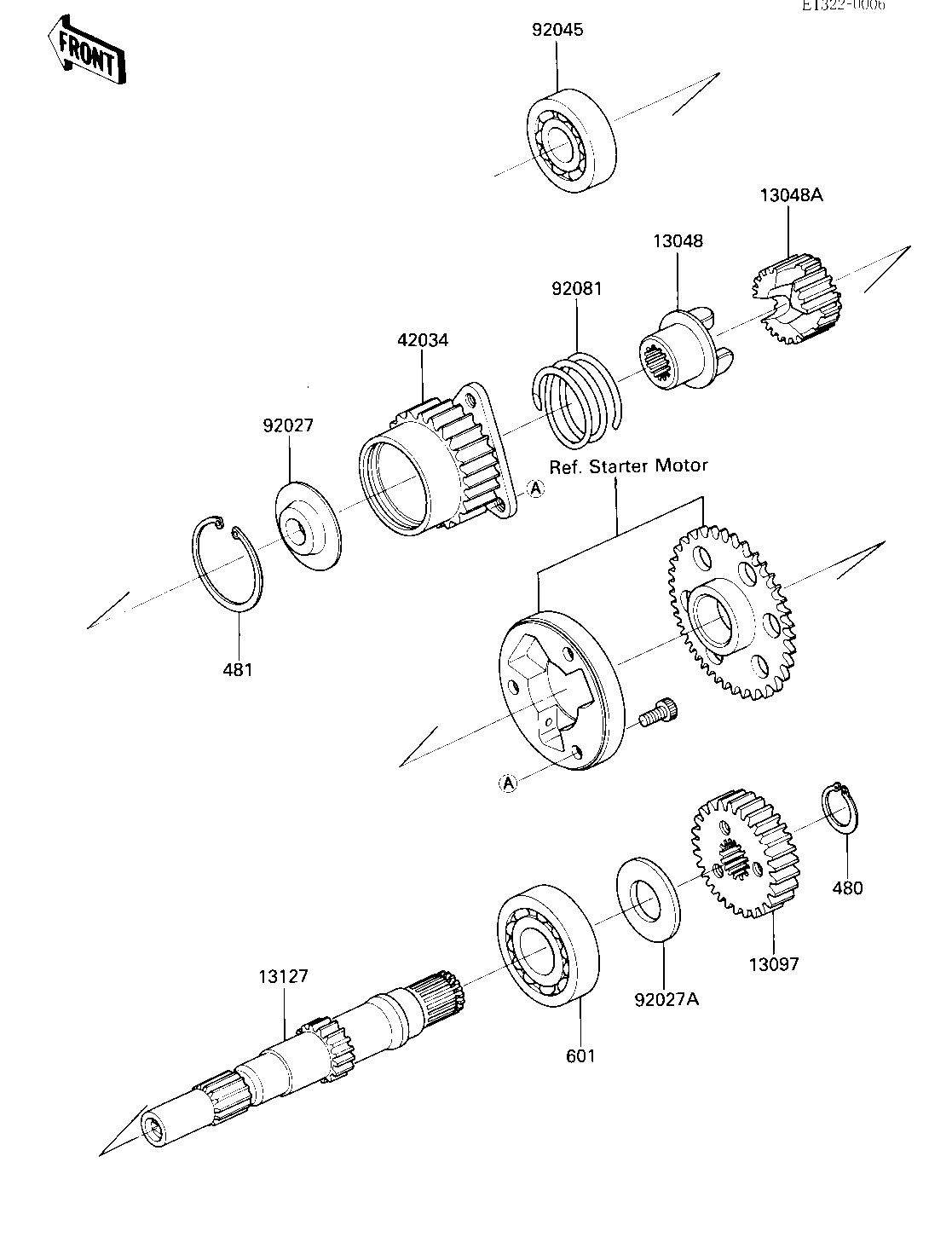

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAM-DAMPER,MALE 13048 13048-1051 1
CAM-DAMPER,FEMALE 13048A 13048-1052 1
GEAR-PRIMARY SPUR,31T 13097 13097-1077 1
SHAFT-TRANSMISSION IN 13127 13127-1102 1
COUPLING,SECONDARY SH 42034 42034-1052 1
COLLAR,COUPLING 92027 92027-1664 1
COLLAR,23X46X4.5 92027A 92027-1782 1
BEARING,BALL 92045 92045-1006 1
SPRING,CAM DAMPER 92081 92081-1605 1
CIRCLIP,22MM 480 480J2200 1
CIRCLIP,47M/M 481 92033-1042 1
BEARING BALL #6305 601 601B6305 1
