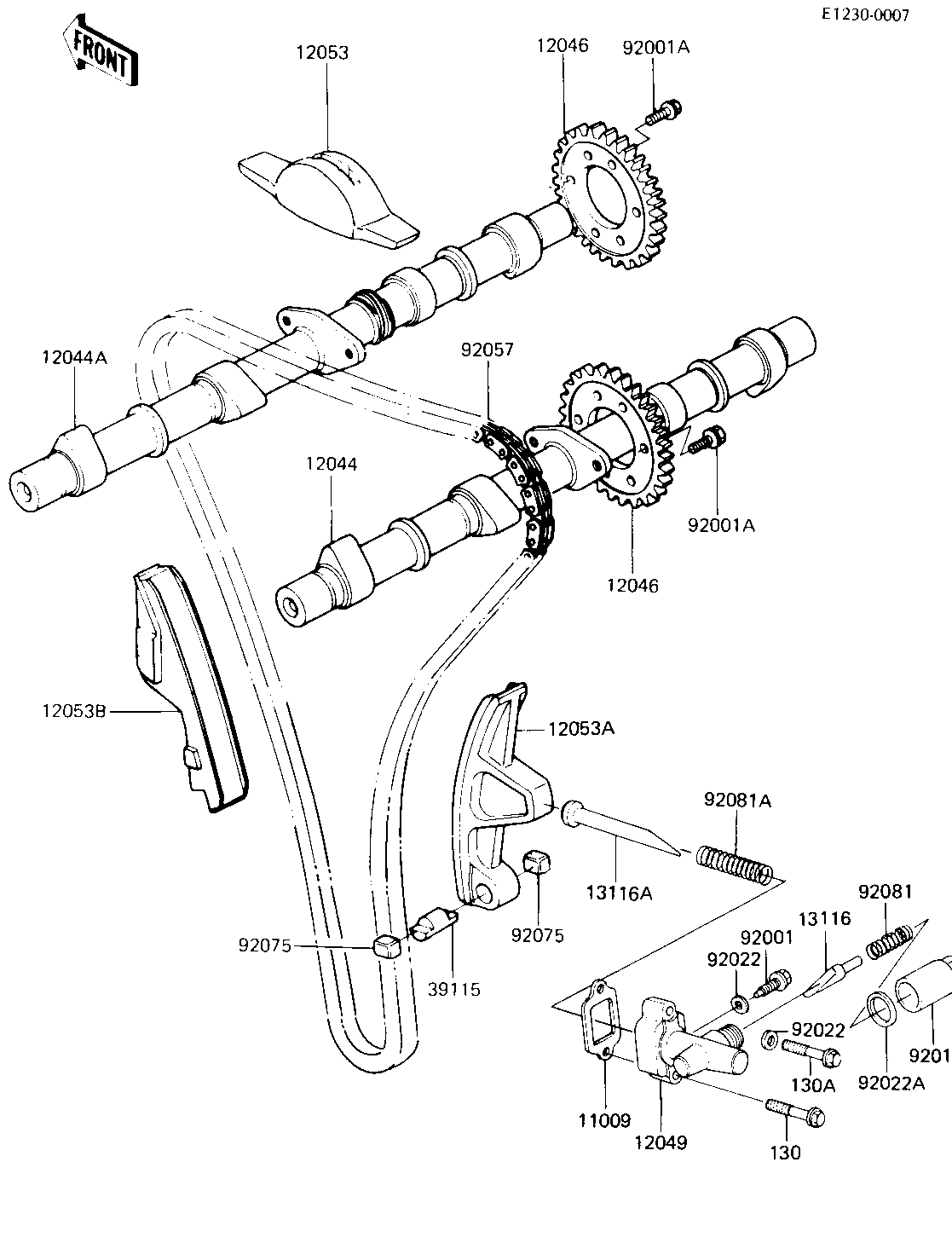

1985 GPz 750 Turbo - CAMSHAFTS/CHAIN/TENSIONER
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,TENSIONER | 11009 | 11009-1980 | 1 | ||
CAM SHAFT,INLET | 12044 | 12044-012 | 1 | ||
CAM SHAFT,EXHAUST | 12044A | 12044-013 | 1 | ||
SPROCKET,CAMSHAFT 46T | 12046 | 12046-1021 | 2 | ||
TENSIONER,CAM CHAIN | 12049 | 12049-1015 | 1 | ||
GUIDE,CHAIN UPPER | 12053 | 12053-1038 | 1 | ||
GUIDE-CHAIN REAR | 12053A | 12053-1054 | 1 | ||
GUIDE-CHAIN,FR | 12053B | 12053-1058 | 1 | ||
ROD,PUSH,CAM CHAIN | 13116 | 13116-1012 | 1 | ||
ROD-PUSH,TENSIONER | 13116A | 13116-1036 | 1 | ||
SHAFT,CAM CHAIN GUIDE | 39115 | 12052-003 | 1 | ||
BELT,TENSIONER ADJUST | 92001 | 92001-1155 | 1 | ||
BOLT,SPROCKET FITTING | 92001A | 92003-208 | 4 | ||
CAP,TENSIONER,18M/M | 92015 | 92015-1100 | 1 | ||
WASHER OIL PUMP BANJO | 92022 | 92022-077 | 2 | ||
WASHER,18.3X24X1.4T | 92022A | 92022-1175 | 1 | ||
CHAIN,CAM,82RH2015-15 | 92057 | 92057-1319 | 1 | ||
DAMPER,CAM CHAIN GUID | 92075 | 92075-1314 | 2 | ||
SPRING,TENSIONER | 92081 | 92081-1302 | 1 | ||
SPRING,TENSIONER | 92081A | 92081-1374 | 1 | ||
BOLT,FLANGED,6X30 | 130 | 130G0630 | 1 | ||
BOLT,FLANGED,6X35 | 130A | 130H0635 | 1 |
