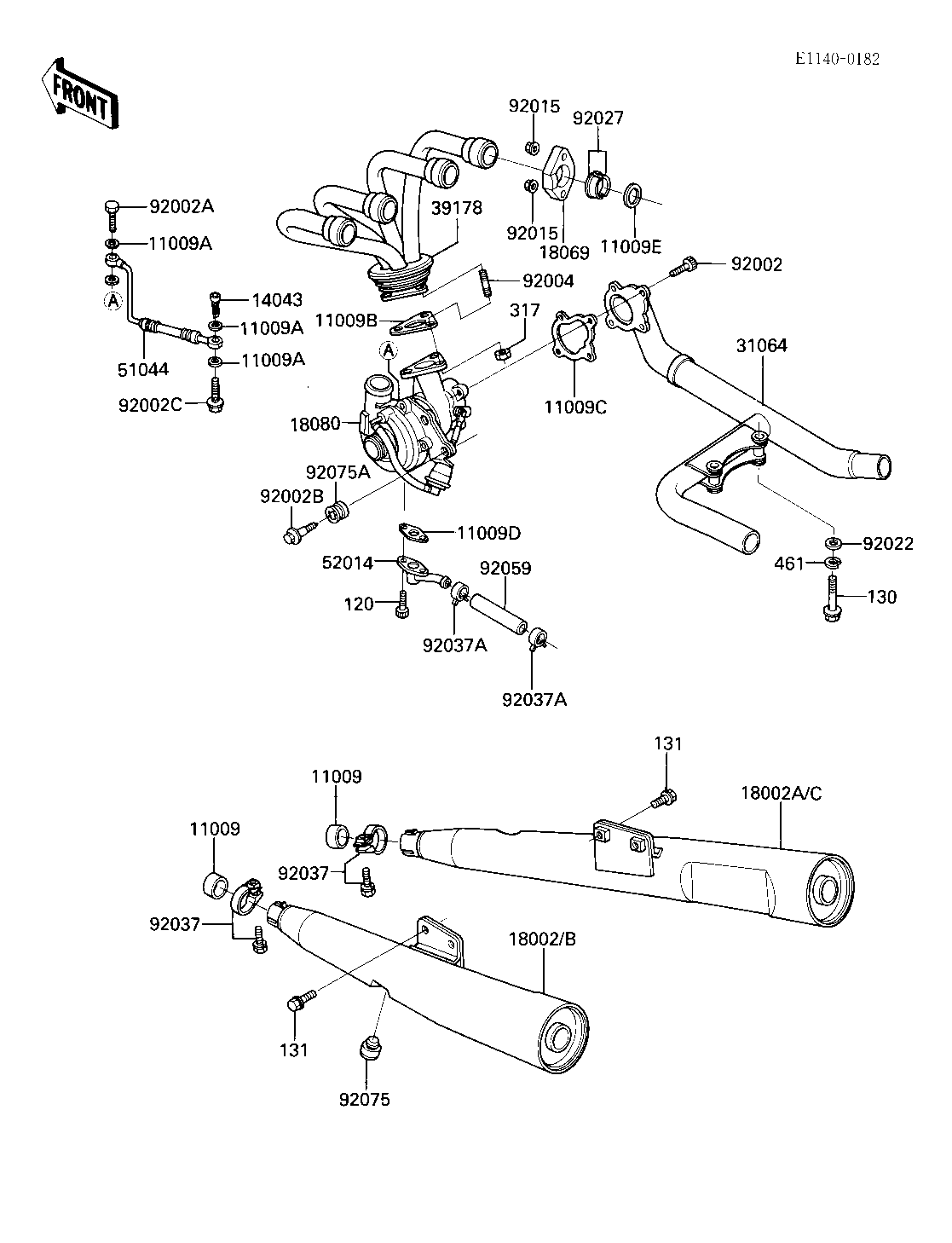

1985 GPz 750 Turbo - MUFFLERS/TURBOCHARGER
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,MANIFOLD EXHAU | 11009 | 11060-1068 | 2 | ||
GASKET,10X14.5X1.5 | 11009A | 11009-1105 | 4 | ||
GASKET,EXHAUST MANIFO | 11009B | 11009-1353 | 1 | ||
GASKET,PIPE COMP | 11009C | 11009-1354 | 1 | ||
GASKET,ELBOW | 11009D | 11009-1358 | 1 | ||
GASKET,EXHAUST PIPE H | 11009E | 11009-1408 | 4 | ||
FILTER,OIL | 14043 | 14043-1052 | 1 | ||
BODY-COMP-MUFFLER,LH | 18002 | 18002-1508 | 1 | CA,US | |
CA,USBODY-COMP-MUFFLER,RH | 18002A | 18002-1509 | 1 | ||
CNBODY-COMP-MUFFLER,LH (Canada) | 18002B | 18002-1510 | 1 | ||
CNBODY-COMP-MUFFLER,RH (Canada) | 18002C | 18002-1511 | 1 | ||
HOLDER-EXHAUST PIPE,F | 18069 | 18069-1029 | 4 | ||
TURBOCHARGER-ASSY | 18080 | 18080-1052 | 1 | ||
PIPE-COMP | 31064 | 31064-1055 | 1 | ||
MANIFOLD-COMP-EXHAUST | 39178 | 39178-1073 | 1 | ||
TUBE-ASSY | 51044 | 51044-1051 | 1 | ||
ELBOW | 52014 | 52014-1051 | 1 | ||
BOLT,SOCKET,8X16 | 92002 | 92002-1146 | 4 | ||
BOLT,BANJO,10X26 | 92002A | 92002-1147 | 1 | ||
BOLT | 92002B | 92002-1148 | 2 | ||
BOLT,10X35 | 92002C | 92002-1172 | 1 | ||
STUD,8X18 | 92004 | 92004-1130 | 3 | ||
NUT,LOCK,8MM | 92015 | 92015-1380 | 8 | ||
WASHER,10.5X26X2.3,BL | 92022 | 92022-1396 | 2 | ||
COLLAR,L=14.5,BLACK | 92027 | 92027-1456 | 8 | ||
CLAMP,MUFFLER,BLACK | 92037 | 92037-1270 | 2 | ||
CLAMP | 92037A | 92037-1460 | 2 | ||
TUBE,15X22.4X95 | 92059 | 92059-1360 | 1 | ||
DAMPER RUBB MAIN STAD | 92075 | 92075-015 | 1 | ||
DAMPER | 92075A | 92075-1563 | 2 | ||
BOLT-SOCKET | 120 | 120S0612 | 2 | ||
BOLT-FLANGED,8X55 | 130 | 130J0855 | 2 | ||
BOLT-FLANGED,8X25,BLA | 131 | 131J0825 | 4 | ||
NUT | 317 | 317R0800 | 3 | ||
WASHER-SPRING,8MM,BLA | 461 | 461K0800 | 2 |
