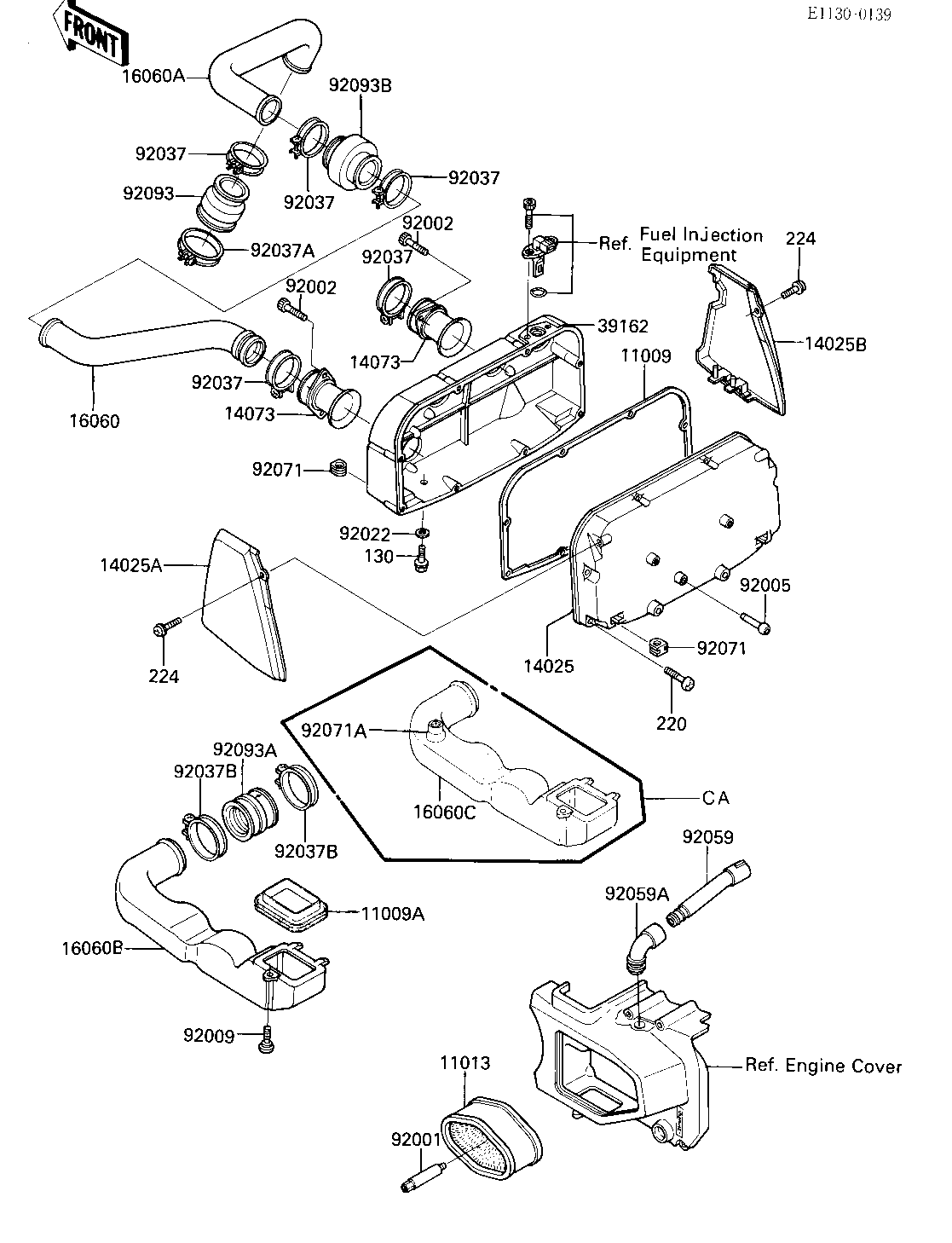

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,INTAKE SILENCE | 11009 | 11009-1362 | 1 | ||
| GASKET,INTAKE PIPE | 11009A | 11009-1407 | 1 | ||
| ELEMENT-AIR FILTER | 11013 | 11013-1103 | 1 | ||
| COVER,INTAKE SILENCER | 14025 | 14025-1760 | 1 | ||
| COVER,INTAKE SILENCER | 14025A | 14025-1775 | 1 | ||
| COVER,INTAKE SILENCER | 14025B | 14025-1776 | 1 | ||
| DUCT | 14073 | 14073-1152 | 5 | ||
| PIPE-INTAKE | 16060 | 16060-1055 | 1 | ||
| PIPE-INTAKE | 16060A | 16060-1056 | 1 | ||
| PIPE-INTAKE | 16060B | 16060-1059 | 1 | CN,US | |
| PIPE-INTAKE,AIR FILTE | 16060C | 16060-1060 | 1 | CA | |
| SILENCER-INTAKE | 39162 | 39162-1051 | 1 | ||
| BOLT,ELEMENT | 92001 | 92001-1964 | 1 | ||
| BOLT,SOCKET,6X14 | 92002 | 92002-1192 | 10 | ||
| FITTING,INTAKE SILENC | 92005 | 92005-1103 | 1 | ||
| SCREW | 92009 | 92009-1258 | 1 | ||
| WASHER OIL PUMP BANJO | 92022 | 92022-077 | 1 | ||
| CLAMP,HOLDER | 92037 | 92037-077 | 8 | ||
| CLAMP,ID=53,BLACK | 92037A | 92037-1304 | 1 | ||
| CLAMP,CARBURETOR | 92037B | 92037-1021 | 2 | ||
| TUBE,BREATHER | 92059 | 92059-1358 | 1 | ||
| TUBE,CHAIN COVER | 92059A | 92059-1359 | 1 | ||
| GROMMET,AIR FILTER | 92071 | 92071-1109 | 4 | ||
| GROMMET,AIR FILTER | 92071A | 92071-1112 | 1 | CA | |
| SEAL,TURBOCHARGER,OUT | 92093 | 92093-1152 | 1 | ||
| SEAL,TURBOCHARGER,IN | 92093A | 92093-1153 | 1 | ||
| SEAL,INTAKE PIPE | 92093B | 92093-1158 | 1 | ||
| BOLT-FLANGED | 130 | 130C0608 | 1 | ||
| SCREW-PAN-CROS, 6X20 | 220 | 220C0620 | 8 | ||
| SCREW-PAN-WP-CROS | 224 | 224C0508 | 2 |
