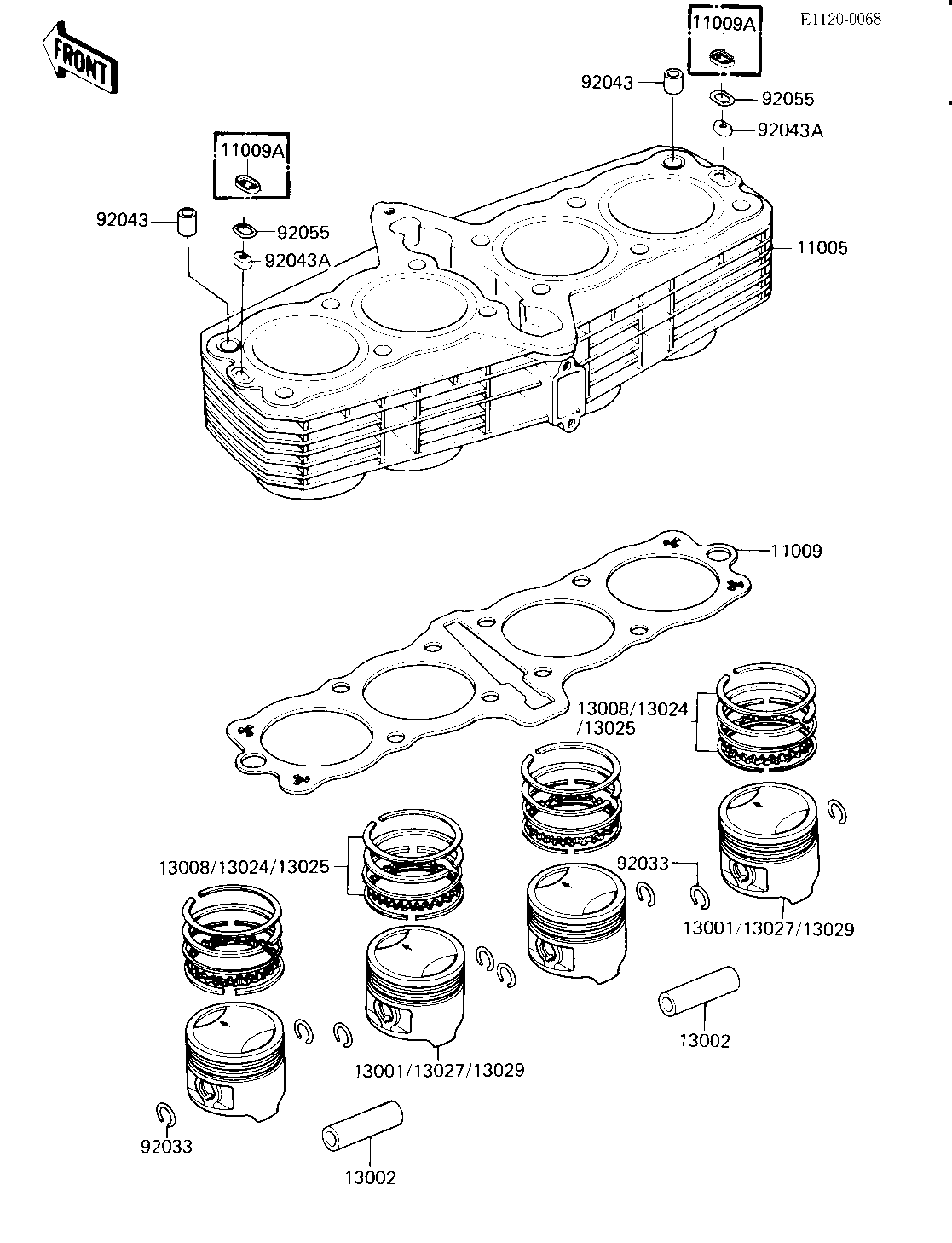

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CYLINDER-ENGINE,F.BLA 11005 11005-1306 1
GASKET,CYLINDER BASE 11009 11060-1144 1
GASKET,OIL LINE 11009A 11009-1419 2
PISTON-ENGINE,STD 13001 13001-1165 4
PIN-PISTON 13002 13002-1053 4
RING-SET-PISTON,STD 13008 13008-5046 4
RING-SET PISTON LL,01 13024 13024-5022 4
RING-SET PISTON L,0/S 13025 13025-5022 4
PISTON-ENGINE LL,O/S 13027 13027-1113 4
PISTON-ENGINE L,O/S 0 13029 13029-1112 4
RING-SNAP,PISTON PIN 92033 92033-1161 8
PIN,11X14X12.3 92043 92043-1266 2
