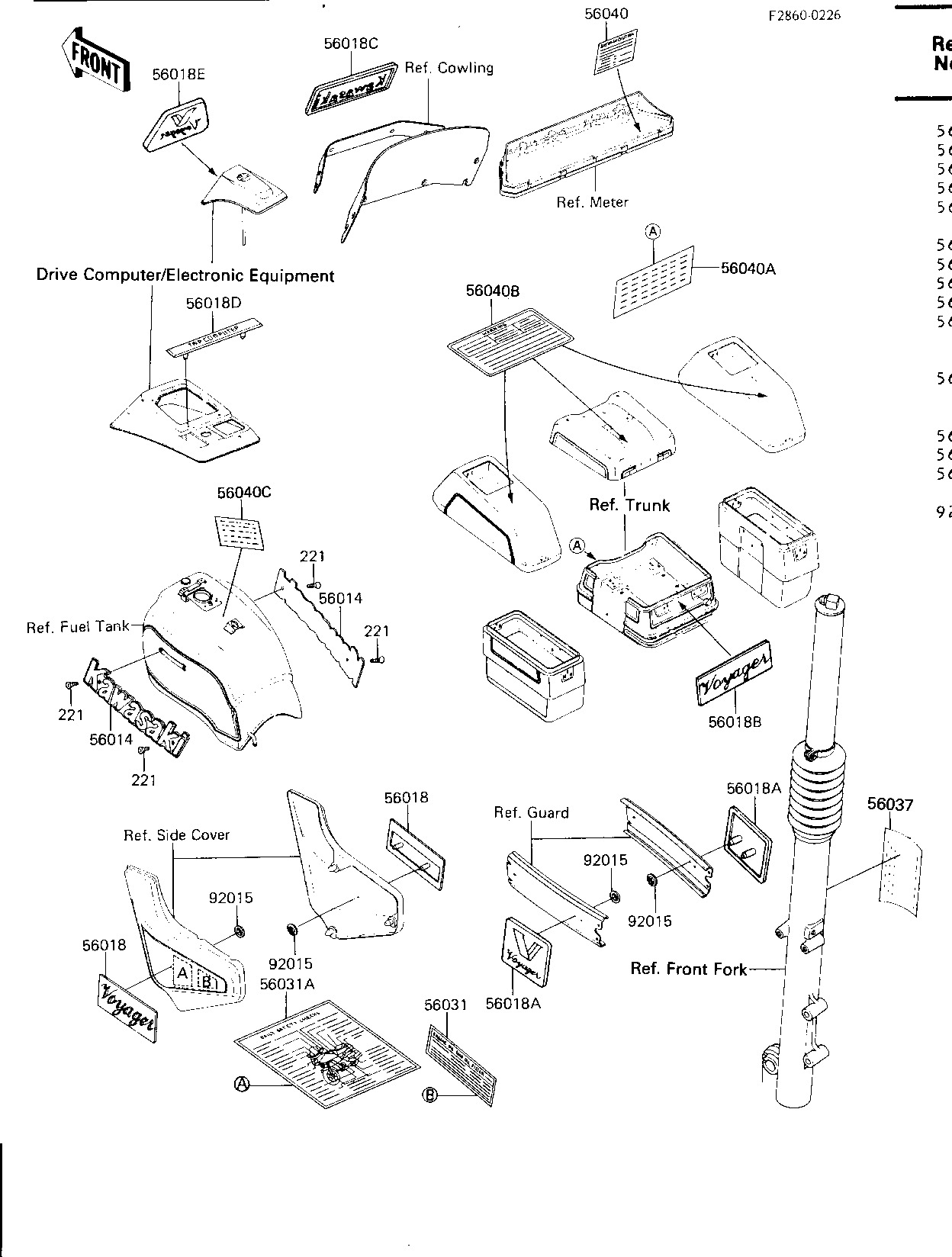

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM,FUEL TANK | 56014 | 56014-1058 | 2 | ||
| MARK,SIDE COVER,"VOYA | 56018 | 56018-1421 | 2 | ||
| MARK,SIDEBAG | 56018A | 56018-1422 | 2 | ||
| MARK,TRUNK,"VOYAGER" | 56018B | 56018-1423 | 1 | ||
| MARK,COWLING,"KAWASAK | 56018C | 56018-1424 | 1 | ||
| MARK,TRIP COMPUTER | 56018D | 56018-1425 | 1 | ||
| MARK,QUARTER SENSOR C | 56018E | 56018-1426 | 1 | ||
| LABEL,OIL&OIL FILTER | 56031 | 56031-1321 | 1 | ||
| LABEL-MANUAL,DAILY SA | 56031A | 56031-1323 | 1 | ||
| LABEL,TIRE & LOAD | 56037 | 56037-1265 | 1 | ||
| LABEL,BRAKE-IN | 56040 | 56040-1007 | 1 | ||
| LABEL-WARNING,TRUNK A | 56040A | 56040-1109 | 1 | ||
| LABEL-WARNING,MAXIMUM | 56040B | 56040-1114 | 3 | ||
| LABEL-WARNING,FUEL TK | 56040C | 56040-1121 | 1 | CA | |
| NUT,LOCK,3MM | 92015 | 92018-005 | 8 | ||
| SCREW-CSK-CROS | 221 | 221C0306 | 4 |
