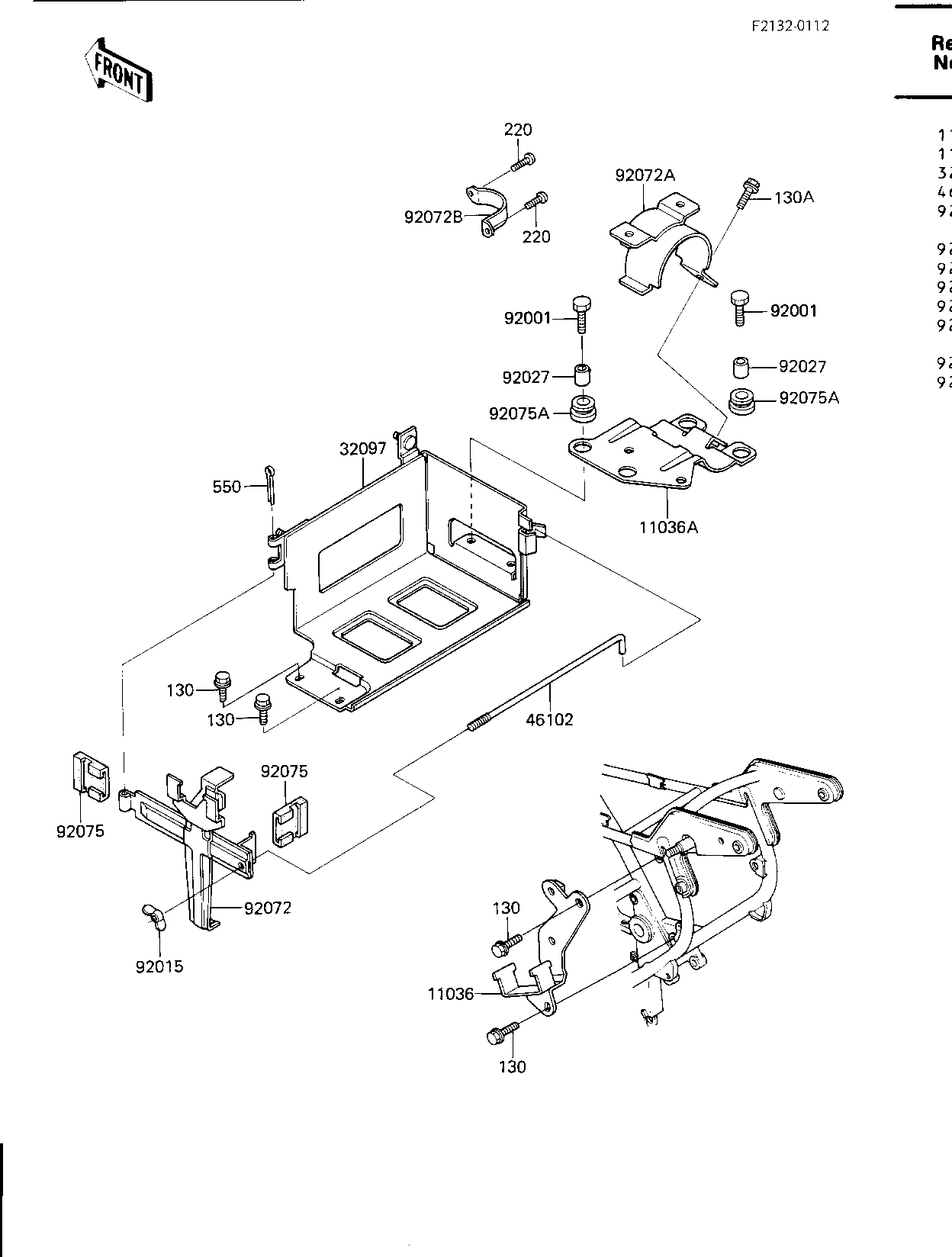

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET-A,REGULATOR | 11036 | 11036-1973 | 1 | ||
| BRACKET-A,FUEL PUMP | 11036A | 11036-1974 | 1 | ||
| CASE-BATTERY | 32097 | 32097-1066 | 1 | ||
| ROD | 46102 | 46102-1065 | 1 | ||
| BOLT,6X20 | 92001 | 92001-1773 | 4 | ||
| NUT,AIR CLEANER CAP | 92015 | 92016-062 | 1 | ||
| COLLAR 6.8X10X10.5 | 92027 | 92027-120 | 4 | ||
| BAND,BATTERY | 92072 | 92072-1098 | 1 | ||
| BAND,FUEL PUMP | 92072A | 92072-1099 | 1 | ||
| BAND,FILTER | 92072B | 92072-1100 | 1 | ||
| DAMPER,BATTERY BAND | 92075 | 92075-1476 | 2 | ||
| DAMPER RUBBER | 92075A | 92075-277 | 4 | ||
| BOLT-FLANGED,6X10,BLA | 130 | 130C0610 | 4 | ||
| BOLT-FLANGED,6X12 | 130A | 130C0612 | 1 | ||
| SCREW PAN HEAD 4X10 | 220 | 220B0410 | 2 | ||
| PIN-COTTER,4.0X35 | 550 | 550D4035 | 1 |
