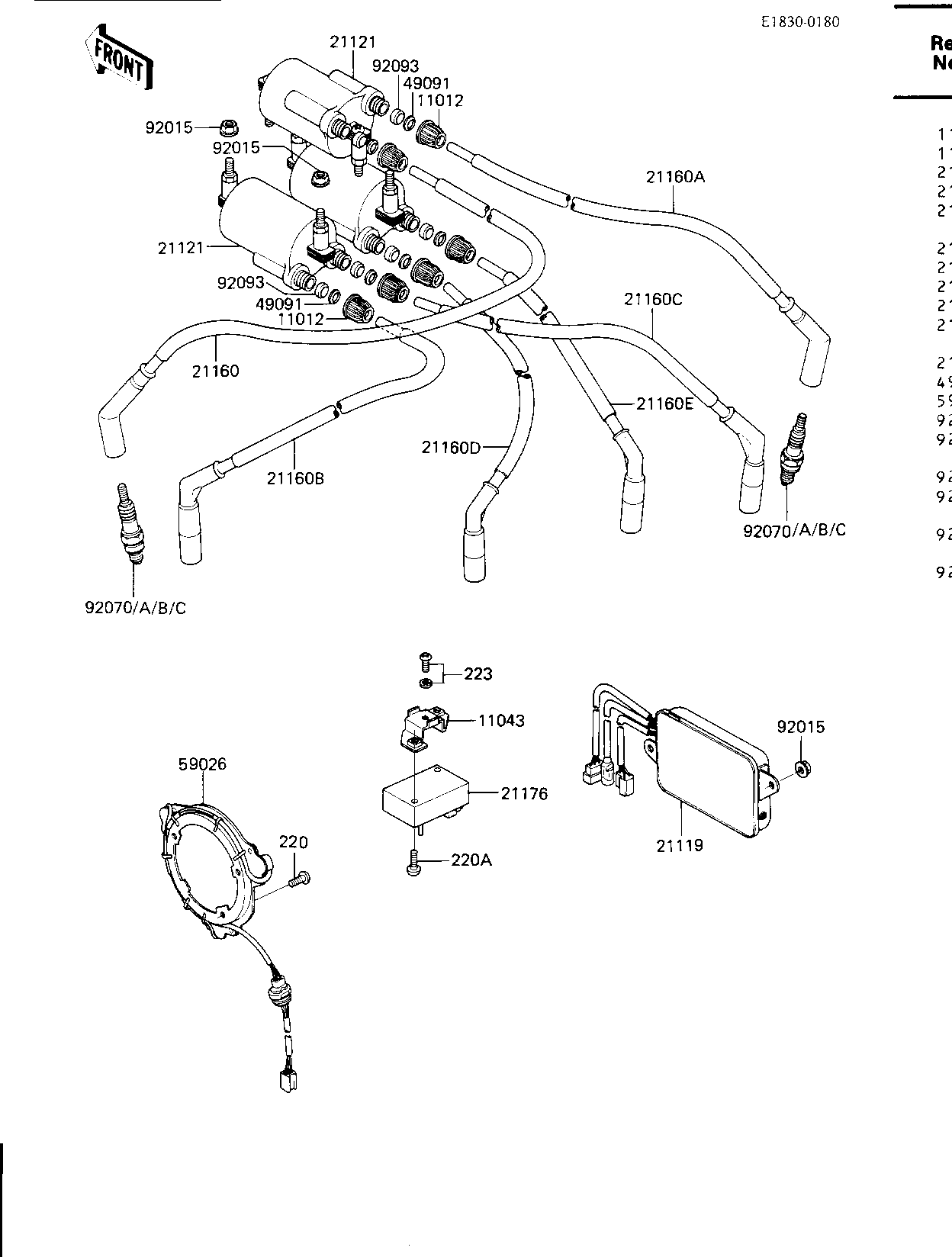

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,IGNITION COIL | 11012 | 11012-1376 | 6 | ||
| BRACKET-B,SENSOR | 11043 | 11043-1338 | 1 | ||
| IGNITER | 21119 | 21119-1073 | 1 | ||
| COIL-IGNITION,#1 | 21121 | 21121-1112 | 3 | ||
| CAP-ASSY-PLUG,#1 | 21160 | 21160-1055 | 1 | ||
| CAP-ASSY-PLUG,#6 | 21160A | 21160-1056 | 1 | ||
| CAP-ASSY-PLUG,#2 | 21160B | 21160-1057 | 1 | ||
| CAP-ASSY-PLUG.#5 | 21160C | 21160-1058 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 21160D | 21160-105 | 1 | ||
| CAP-ASSY-PLUG,#4 | 21160E | 21160-1060 | 1 | ||
| SENSOR,VACUUM | 21176 | 21176-1006 | 1 | ||
| WASHER-SEAL | 49091 | 49091-1051 | 6 | ||
| COIL-PULSING | 59026 | 59026-1027 | 1 | ||
| NUT-6MM | 92015 | 92015-1078 | 8 | ||
| SPARK PLUG BPR6ES | 92070 | BPR6ES | 6 | ||
| SPARK PLUG BPR7ES | 92070A | BPR7ES | AR | ||
| SEAL | 92093 | 92093-1156 | 6 | ||
| SCREW PAN HEAD 6X12 | 220 | 220B0612 | 3 | ||
| SCREW-PAN HEAD,6X30 | 220A | 220C0630 | 2 | ||
| SCREW-PAN-WS-CROS | 223 | 223C0612 | 1 |
