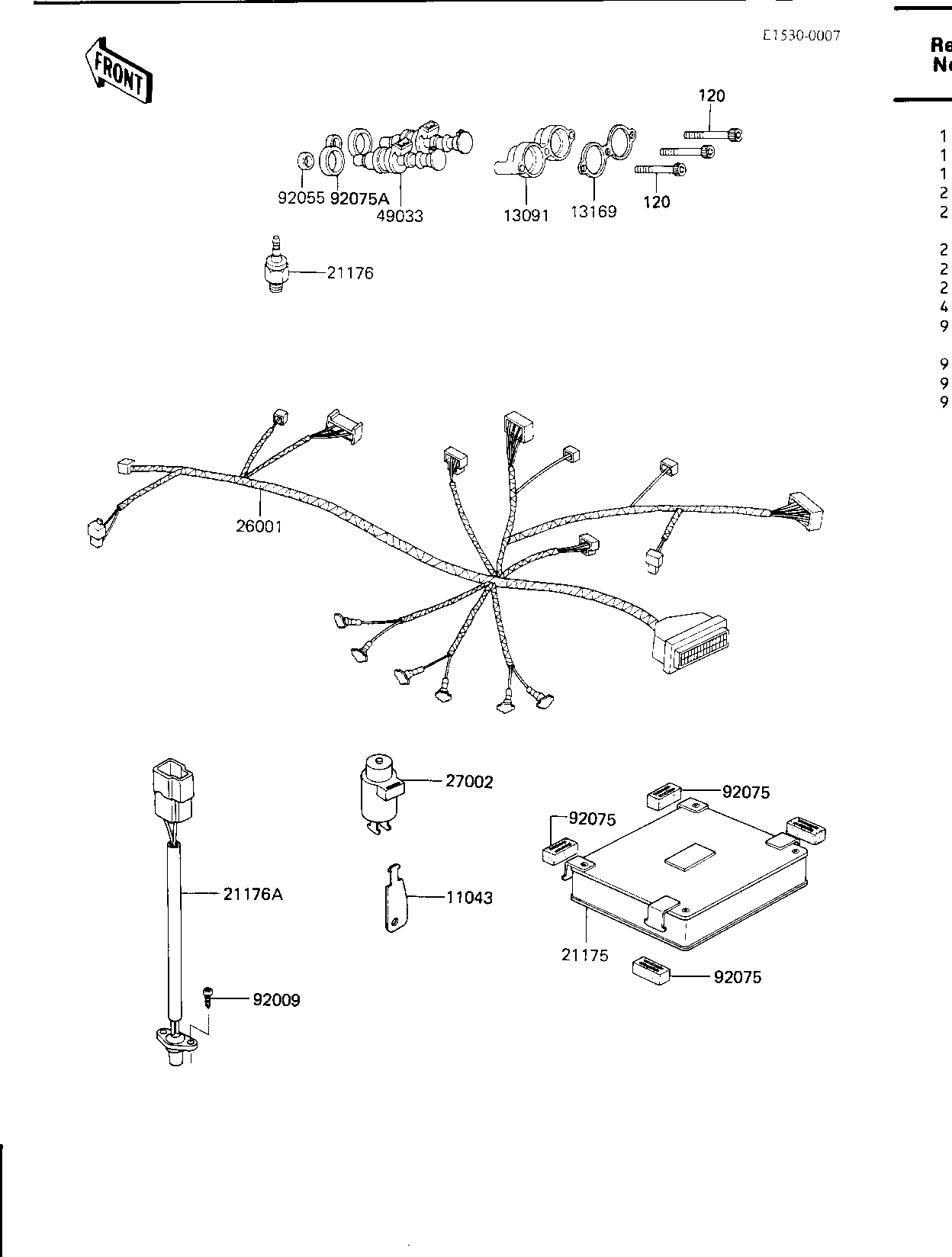

1985 Voyager - FUEL INJECTION EQUIPMENT
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET-B,DFI PUMP RE | 11043 | 11043-1318 | 1 | ||
| HOLDER,INJECTION NOZZ | 13091 | 13091-1184 | 3 | ||
| PLATE,INJECTION NOZZL | 13169 | 13169-1605 | 3 | ||
| CONTROL UNIT-ELECTRON | 21175 | 21175-1008 | 1 | ||
| SENSOR-TEMPERATURE | 21176 | 21176-1002 | 1 | ||
| SENSOR,AIR-TEMPERATUR | 21176A | 21176-1003 | 1 | ||
| HARNESS,D.F.I | 26001 | 26001-1567 | 1 | ||
| RELAY-ASSY | 27002 | 27002-1051 | 1 | ||
| NOZZLE-INJECTION | 49033 | 49033-1002 | 6 | ||
| SCREW,TAPPING,3X12,BL | 92009 | 92009-1028 | 2 | ||
| INSULATOR,FUEL INJECT | 92055 | 92055-1082 | 6 | ||
| DAMPER,CONTROL UNIT | 92075 | 92075-1312 | 4 | ||
| DAMPER,FUEL INJECT | 92075A | 92075-1617 | 6 | ||
| BOLT-SOCKET | 120 | 120S0540 | 9 |
