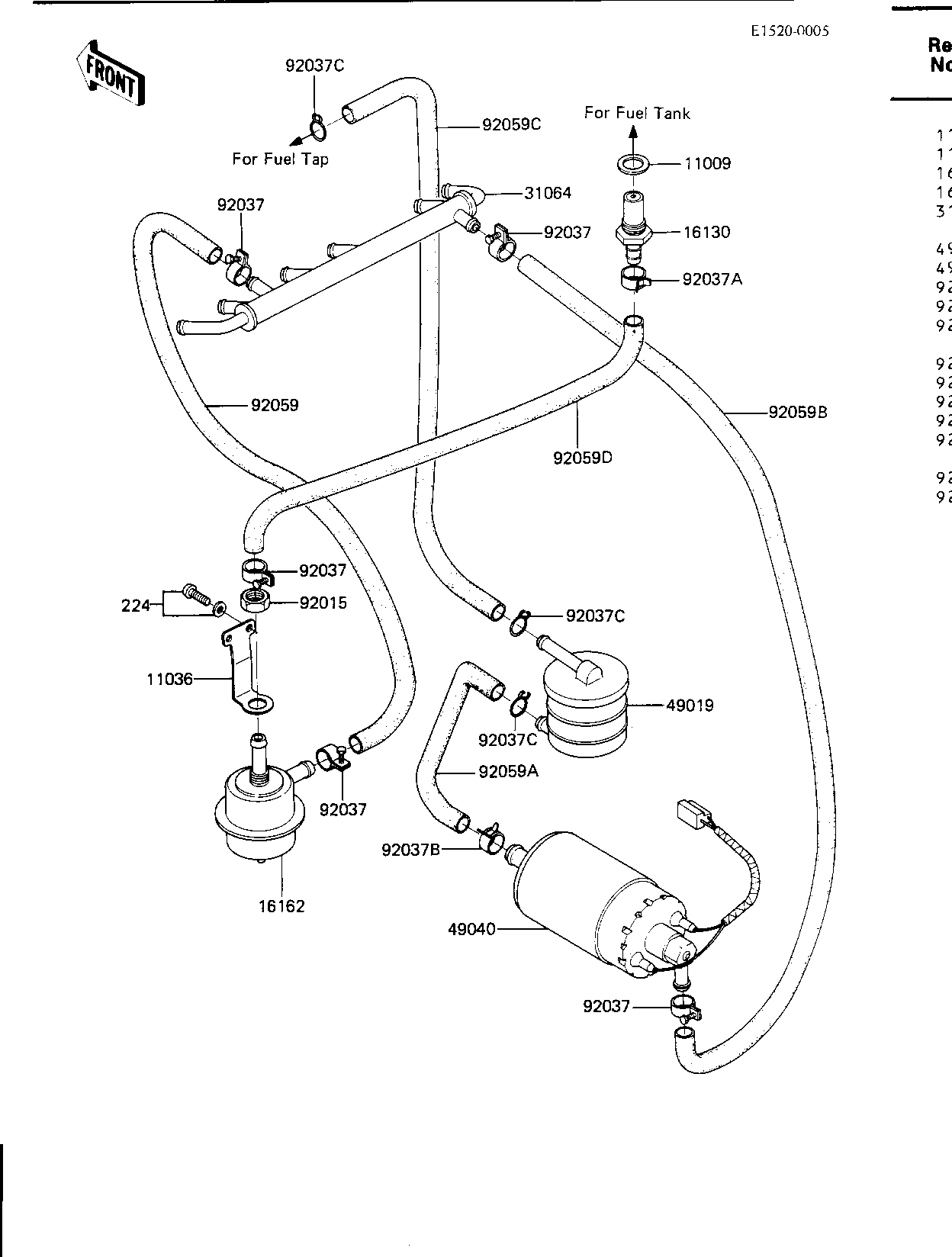

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,RELIEF VLV FIT | 11009 | 11009-1182 | 1 | ||
| BRACKET-A,REGULATOR | 11036 | 11036-1960 | 1 | ||
| VALVE ASSY,RELIEF | 16130 | 16130-1002 | 1 | ||
| REGULATOR-FUEL | 16162 | 16162-1002 | 1 | ||
| PIPE-COMP,FUEL | 31064 | 31064-1010 | 1 | ||
| FILTER,FUEL | 49019 | 49019-1001 | 1 | ||
| PUMP-FUEL | 49040 | 49040-1007 | 1 | ||
| NUT,12MM | 92015 | 92015-1395 | 1 | ||
| CLAMP | 92037 | 92037-1178 | 5 | ||
| CLAMP | 92037A | 92037-1181 | 1 | ||
| CLAMP,FUEL TUBE,ID-15 | 92037B | 92037-1365 | 1 | ||
| CLAMP,FUEL TUBE | 92037C | 92037-1271 | 3 | ||
| TUBE,13.5X360 | 92059 | 92059-1273 | 1 | ||
| TUBE,PUMP FILTER | 92059A | 92059-1275 | 1 | ||
| TUBE,13.5X610 | 92059B | 92059-1276 | 1 | ||
| TUBE,7.5X13.5X680 | 92059C | 92059-1277 | 1 | ||
| TUBE,13.5X270 | 92059D | 92059-1397 | 1 | ||
| SCREW-PAN-WP-CROS | 224 | 224C0508 | 2 |
