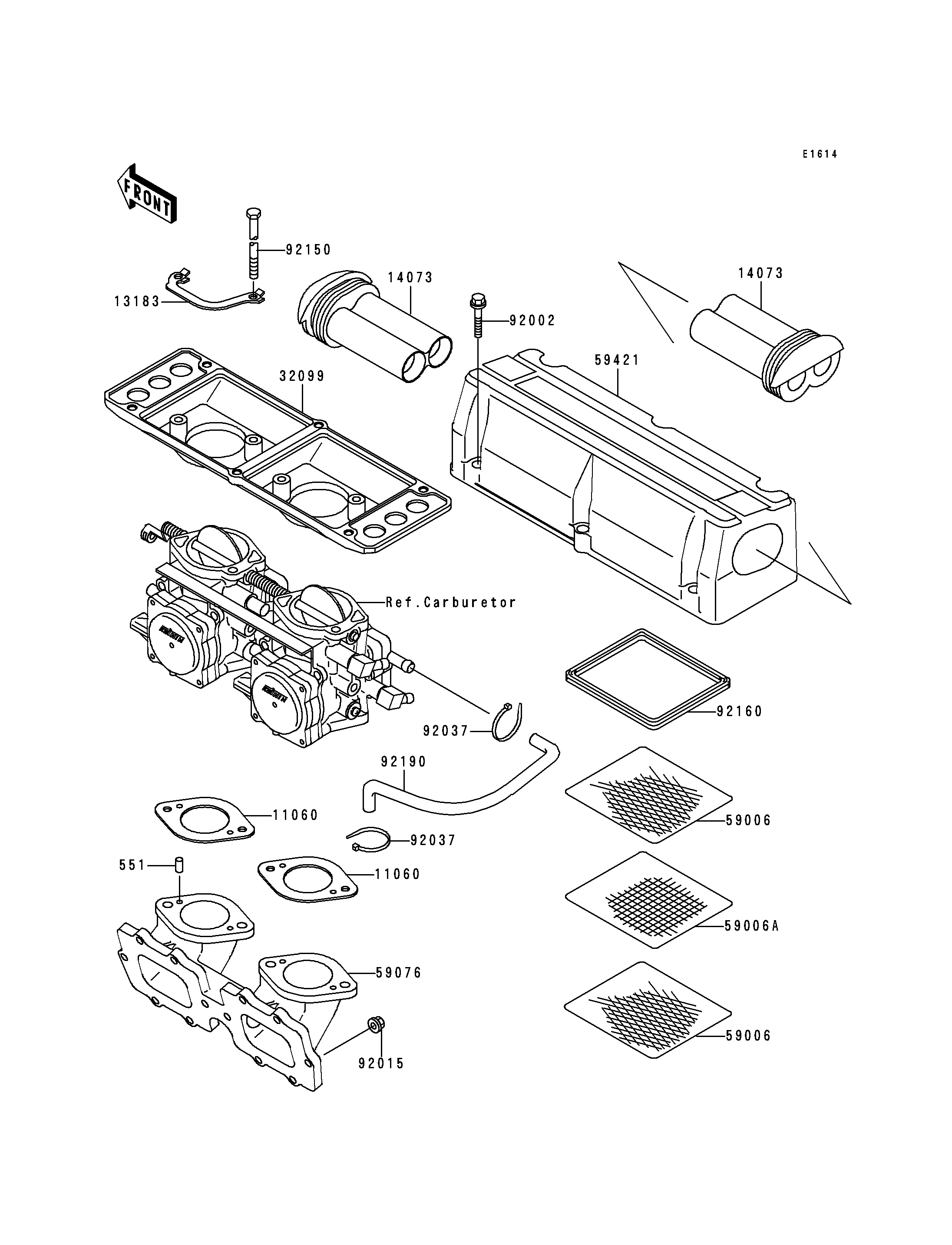

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
551
11060
11060
13183
14073
14073
32099
59006
59006
59006A
59076
59421
92002
92015
92037
92037
92150
92160
92190
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PIN-DOWEL | 551 | 551R0408 | 4 | ||
| GASKET | 11060 | 11060-3758 | 2 | ||
| PLATE | 13183 | 13183-3726 | 2 | ||
| DUCT | 14073 | 14073-3745 | 2 | ||
| CASE | 32099 | 32099-3770 | 1 | ||
| ARRESTER-FLAME | 59006 | 59006-3707 | 4 | ||
| ARRESTER-FLAME | 59006A | 59006-3708 | 2 | ||
| MANIFOLD-INTAKE | 59076 | 59076-3721 | 1 | ||
| COVER-INTAKE | 59421 | 59421-3719 | 1 | ||
| BOLT,6X30 | 92002 | 92002-3726 | 6 | ||
| NUT,6MM | 92015 | 92015-3767 | 12 | ||
| CLAMP | 92037 | 92037-1173 | 2 | ||
| BOLT,6X125 | 92150 | 92150-3784 | 4 | ||
| DAMPER | 92160 | 92160-3704 | 2 | ||
| TUBE | 92190 | 92190-3965 | 1 |
