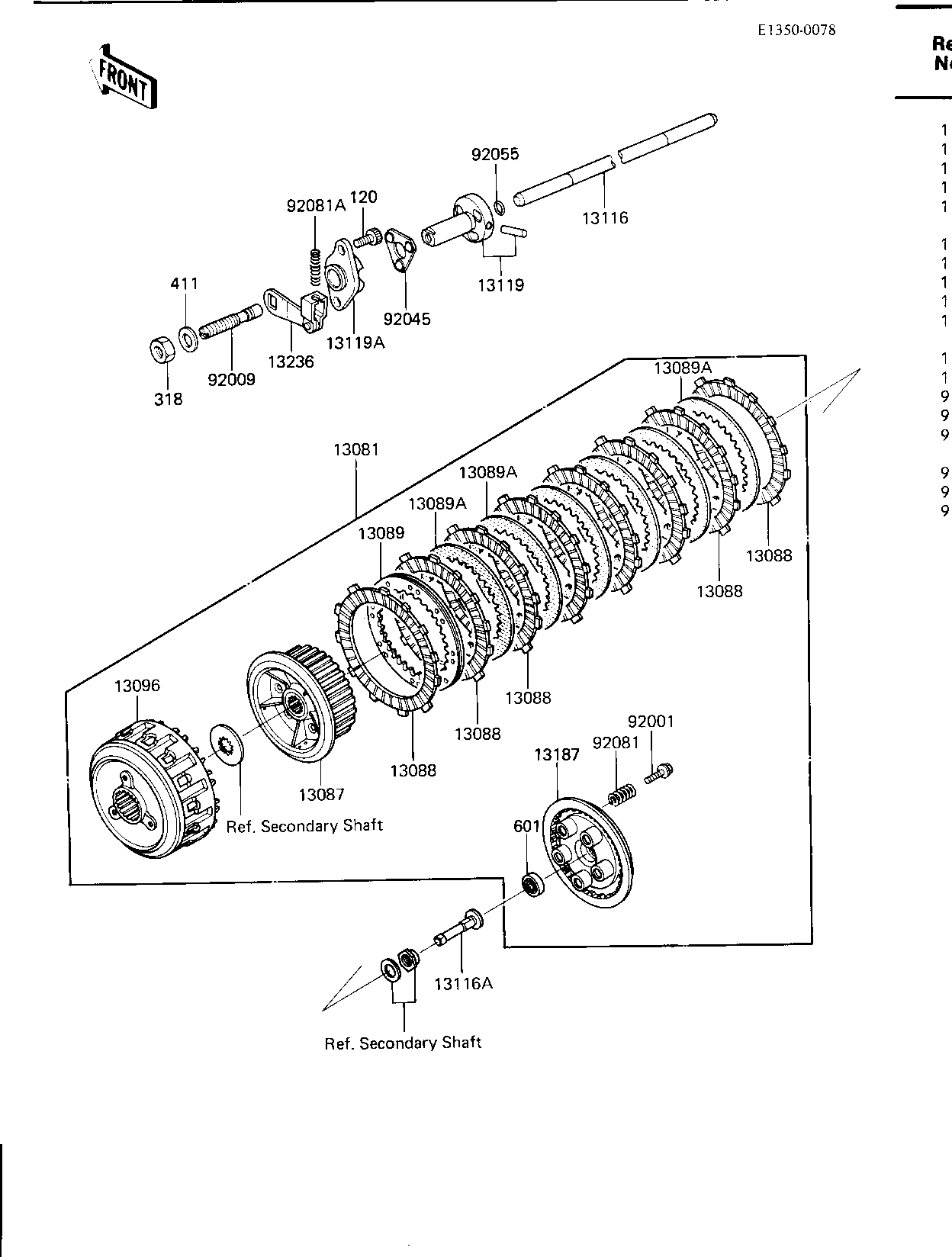

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CLUTCH-ASSY | 13081 | 13081-1172 | 1 | ||
| HUB-CLUTCH | 13087 | 13087-1055 | 1 | ||
| PLATE-FRICTION | 13088 | 13088-1018 | 8 | ||
| PLATE-CLUTCH | 13089 | 13089-1056 | 1 | ||
| PLATE-CLUTCH,STEEL | 13089A | 13089-1057 | 6 | ||
| HOUSING-CLUTCH | 13096 | 13096-1059 | 1 | ||
| ROD-PUSH,CLUTCH | 13116 | 13116-1050 | 1 | ||
| ROD-PUSH | 13116A | 13116-1108 | 1 | ||
| CAM,CLUTCH RELEASE A | 13119 | 13119-1007 | 1 | ||
| CAM,CLUTCH RELEASE B | 13119A | 13119-1008 | 1 | ||
| PLATE-CLUTCH OPERATIN | 13187 | 13187-1015 | 1 | ||
| LEVER-COMP,CLUTCH REL | 13236 | 13236-1055 | 1 | ||
| BOLT,CLUTCH SPR FITT | 92001 | 92001-1066 | 5 | ||
| SCREW,CLUTCH RELEASE | 92009 | 92009-1052 | 1 | ||
| BALL,ASSY,CLUTCH RELS | 92045 | 92045-1023 | 1 | ||
| "O" RING,5MM | 92055 | 670B1505 | 1 | ||
| SPRING,CLUTCH | 92081 | 92081-1033 | 5 | ||
| SPRING,COIL,9.7X95 | 92081A | 92081-1532 | 1 | ||
| BOLT,6X14 | 120 | 120P0614 | 2 | ||
| NUT 8MM | 318 | 318B0800 | 1 | ||
| NUT 8MM | 318 | 318B0800 | 1 | ||
| WASHER PLAIN 8MM | 411 | 411B0800 | 1 | ||
| BEARING-BALL | 601 | 92045-1235 | 1 |
| CLUTCH-ASSY | |
| REF # | 13081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HUB-CLUTCH | |
| REF # | 13087 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-FRICTION | |
| REF # | 13088 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| PLATE-CLUTCH | |
| REF # | 13089 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-CLUTCH,STEEL | |
| REF # | 13089A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| HOUSING-CLUTCH | |
| REF # | 13096 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-PUSH,CLUTCH | |
| REF # | 13116 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-PUSH | |
| REF # | 13116A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAM,CLUTCH RELEASE A | |
| REF # | 13119 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAM,CLUTCH RELEASE B | |
| REF # | 13119A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-CLUTCH OPERATIN | |
| REF # | 13187 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-COMP,CLUTCH REL | |
| REF # | 13236 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,CLUTCH SPR FITT | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| SCREW,CLUTCH RELEASE | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BALL,ASSY,CLUTCH RELS | |
| REF # | 92045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "O" RING,5MM | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,CLUTCH | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| SPRING,COIL,9.7X95 | |
| REF # | 92081A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X14 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT 8MM | |
| REF # | 318 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT 8MM | |
| REF # | 318 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 8MM | |
| REF # | 411 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL | |
| REF # | 601 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
