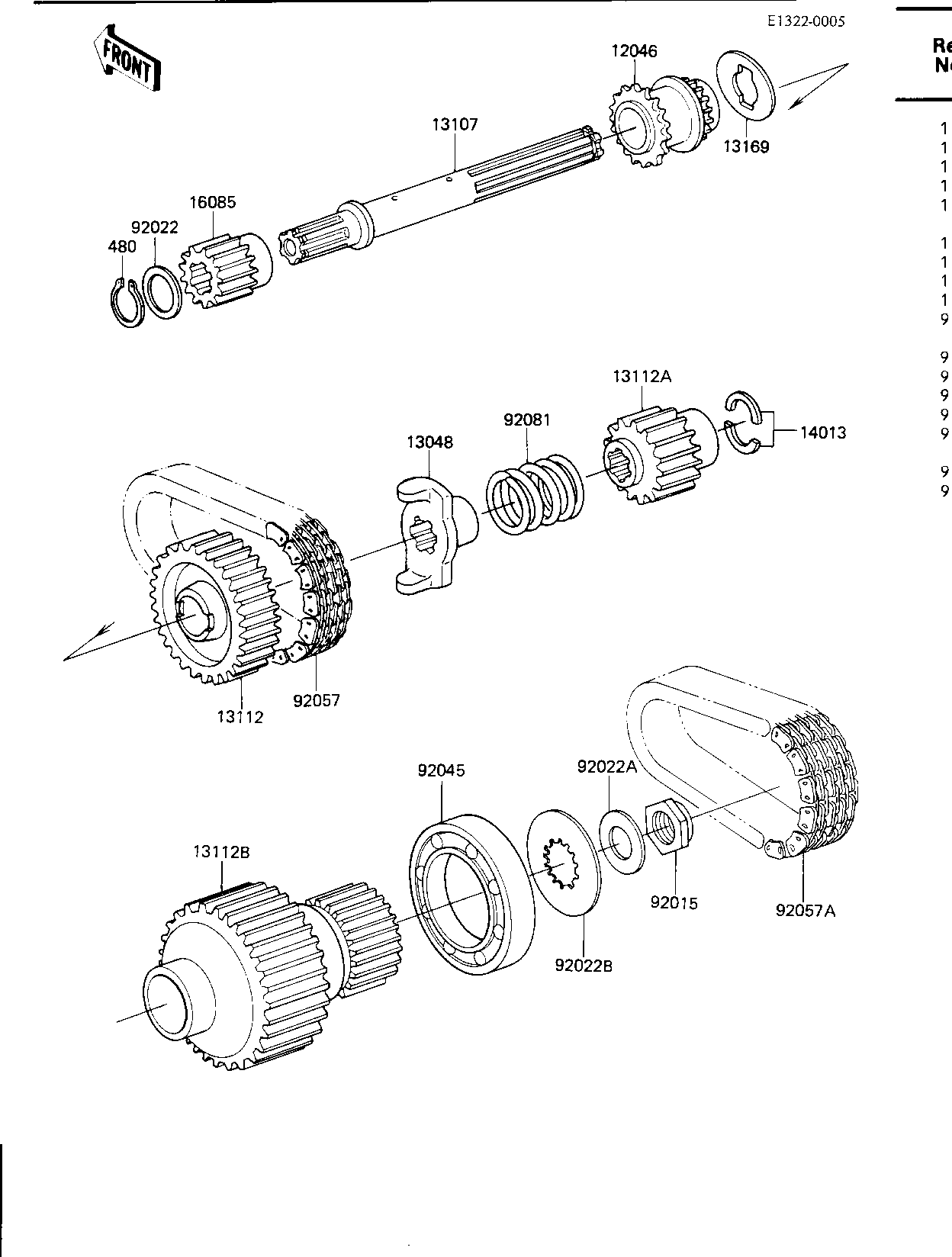

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SPROCKET,TIMING,28,24 | 12046 | 12046-1011 | 1 | ||
| CAM-DAMPER,PRIMARY | 13048 | 13048-1016 | 1 | ||
| SHAFT,SECONDARY | 13107 | 13107-1007 | 1 | ||
| SPROCKET-PRIMARY,32T | 13112 | 13112-1008 | 1 | ||
| SPROCKET-PRIMARY,21T | 13112A | 13112-1010 | 1 | ||
| SPROCKET-PRIMARY,25T | 13112B | 13112-1051 | 1 | ||
| PLATE,25X54X1.2 | 13169 | 13169-1327 | 1 | ||
| RING,POSITON | 14013 | 14013-1001 | 2 | ||
| GEAR,OIL PUMP DRIVE | 16085 | 16085-1004 | 1 | ||
| NUT,20MM | 92015 | 92015-1555 | 1 | ||
| WASHER,25.3X33X1.0 | 92022 | 92022-1109 | 1 | ||
| WASHER,PLAIN,2.3X20.3 | 92022A | 92022-1116 | 1 | ||
| WASHER,CLUTCH | 92022B | 92022-1404 | 1 | ||
| BEARING,BALL,#6009 | 92045 | 92045-1015 | 1 | ||
| CHAIN,PRIMARY,50L | 92057 | 92057-1075 | 1 | ||
| CHAIN,SECONDARY | 92057A | 92057-1127 | 1 | ||
| SPRING,CAM FOLLOWER | 92081 | 92081-1085 | 1 | ||
| CIRCLIP,25M/M | 480 | 480J2500 | 1 |
| SPROCKET,TIMING,28,24 | |
| REF # | 12046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAM-DAMPER,PRIMARY | |
| REF # | 13048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT,SECONDARY | |
| REF # | 13107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET-PRIMARY,32T | |
| REF # | 13112 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET-PRIMARY,21T | |
| REF # | 13112A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET-PRIMARY,25T | |
| REF # | 13112B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,25X54X1.2 | |
| REF # | 13169 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING,POSITON | |
| REF # | 14013 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GEAR,OIL PUMP DRIVE | |
| REF # | 16085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,20MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,25.3X33X1.0 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN,2.3X20.3 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,CLUTCH | |
| REF # | 92022B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING,BALL,#6009 | |
| REF # | 92045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CHAIN,PRIMARY,50L | |
| REF # | 92057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CHAIN,SECONDARY | |
| REF # | 92057A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,CAM FOLLOWER | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,25M/M | |
| REF # | 480 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
