Parts Diagrams |

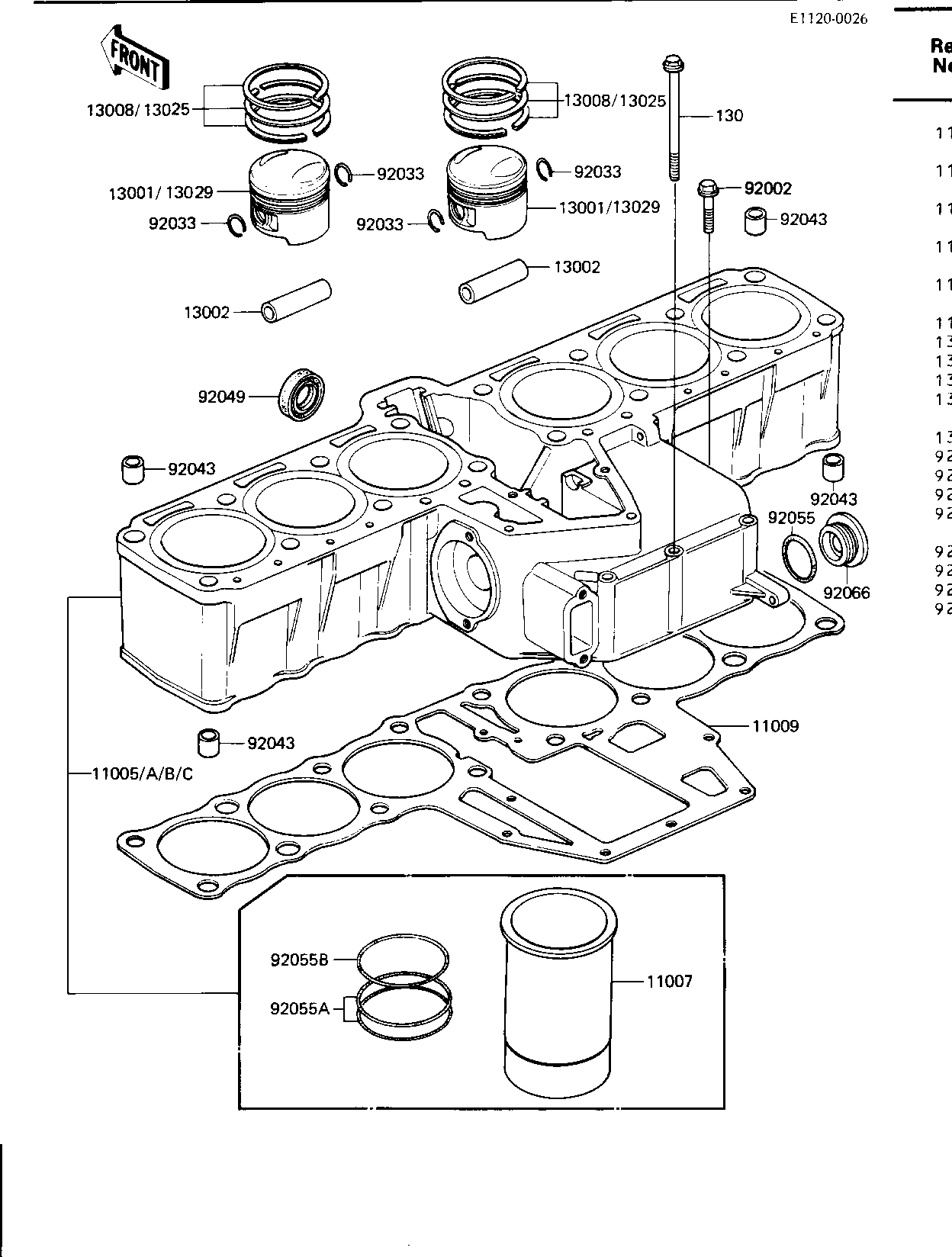

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CYLINDER-ENGINE | 11005B | 11005-1403 | 1 | CN,US | |
| CYLINDER-ENGINE | 11005C | 11005-1405 | 1 | CA | |
| LINER-CYLINDER | 11007 | 11007-1006 | 6 | ||
| GASKET,CYLINDER BASE | 11009 | 11009-1101 | 1 | ||
| PISTON-ENGINE | 13001 | 13001-1120 | 6 | ||
| PIN-PISTON | 13002 | 13002-032 | 6 | ||
| RING-SET-PISTON,STD | 13008 | 13008-5059 | 6 | ||
| RING-SET-PISTON-L | 13025 | 13025-5025 | 6 | ||
| PISTON-ENGINE L | 13029 | 13029-1053 | 6 | ||
| BOLT,6X28 | 92002 | 92002-1105 | 1 | ||
| CIRCLIP PISTON PIN | 92033 | 92036-005 | 12 | ||
| PIN,11X14X12.3 | 92043 | 92043-1266 | 4 | ||
| OIL SEAL,TC17317 | 92049 | 92049-1028 | 1 | ||
| "O" RING,RELEASE PLUG | 92055 | 92055-091 | 1 | ||
| "0" RING,67MM | 92055A | 92055-1032 | 12 | ||
| "0" RING,67.5MM | 92055B | 92055-1035 | 6 | ||
| PLUG,RELEASE | 92066 | 92067-024 | 1 | ||
| BOLT-FLANGED | 130 | 130Y0685 | 3 |
