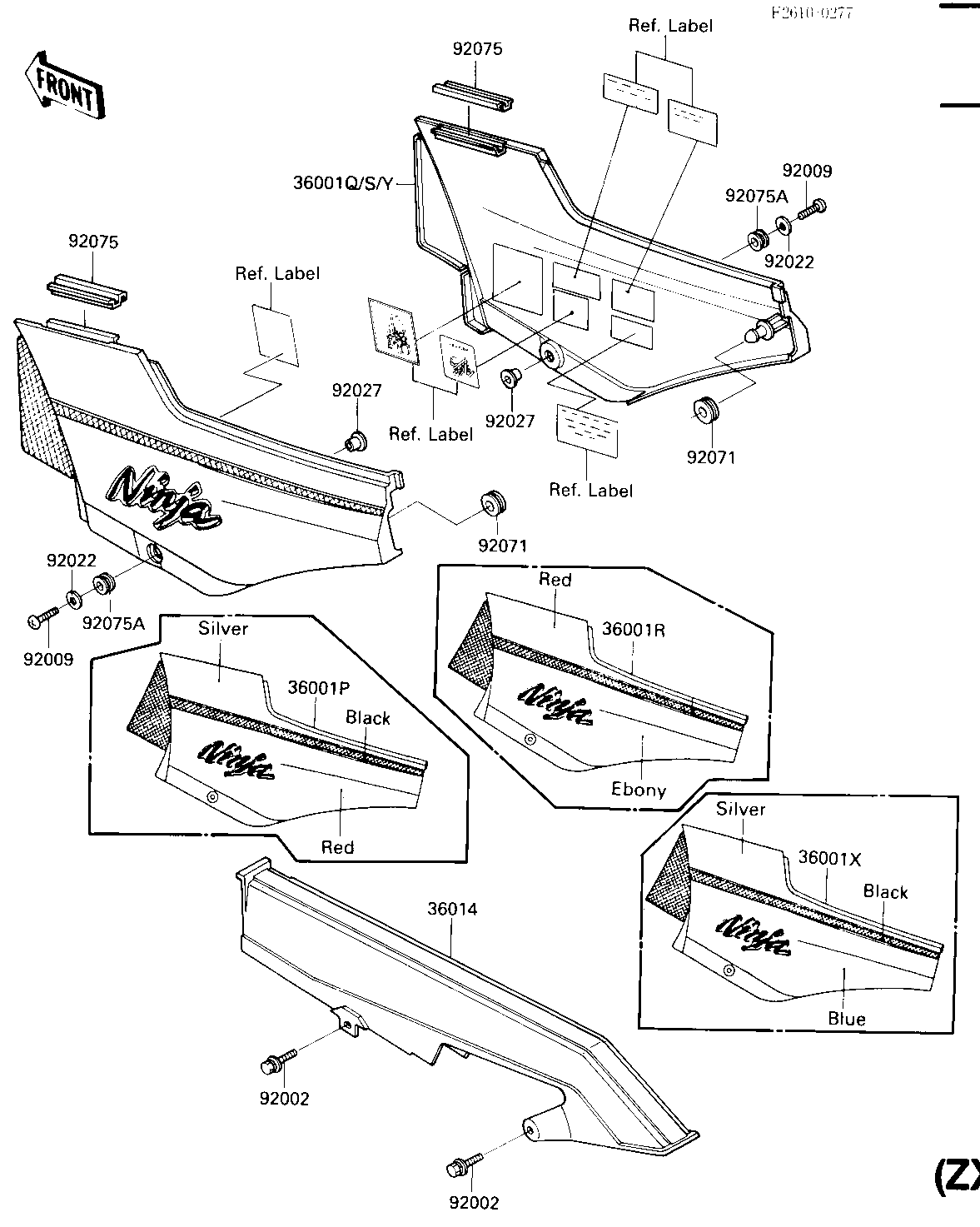

1985 Ninja® - SIDE COVERS/CHAIN COVER (ZX900-A2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER-SIDE,LH,BLACK/R | 36001P | 36001-5436-M8 | 1 | CA,US | |
| COVER-SIDE,RH;BLACK/R | 36001Q | 36001-5437-M8 | 1 | CA,US | |
| COVER-SIDE,LH,EBONY/F | 36001R | 36001-5444-J3 | 1 | ||
| COVER-SIDE,RH,EBONY/F | 36001S | 36001-5445-J3 | 1 | ||
| COVER-SIDE,LH,BLACK/BLUE/ (Can | 36001X | 36001-5474-M2 | 1 | CN | |
| COVER-SIDE,RH,BLACK/BLUE/ (Can | 36001Y | 36001-5475-M2 | 1 | CN | |
| CASE-CHAIN | 36014 | 36014-1165 | 1 | ||
| BOLT,6X16 | 92002 | 92002-1136 | 2 | ||
| SCREW | 92009 | 92009-1663 | 2 | ||
| WASHER,6.5X20X1.6 | 92022 | 92022-1619 | 2 | ||
| COLLAR | 92027 | 92027-1795 | 2 | ||
| GROMMET | 92071 | 92071-056 | 2 | ||
| DAMPER,SIDE COVER | 92075 | 92075-1601 | 2 | ||
| DAMPER | 92075A | 92075-1634 | 2 |
| COVER-SIDE,LH,BLACK/R | |
| REF # | 36001P |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CA,US |
| COVER-SIDE,RH;BLACK/R | |
| REF # | 36001Q |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CA,US |
| COVER-SIDE,LH,EBONY/F | |
| REF # | 36001R |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,RH,EBONY/F | |
| REF # | 36001S |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,LH,BLACK/BLUE/ (Can | |
| REF # | 36001X |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CN |
| COVER-SIDE,RH,BLACK/BLUE/ (Can | |
| REF # | 36001Y |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CN |
| CASE-CHAIN | |
| REF # | 36014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X16 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X20X1.6 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,SIDE COVER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
