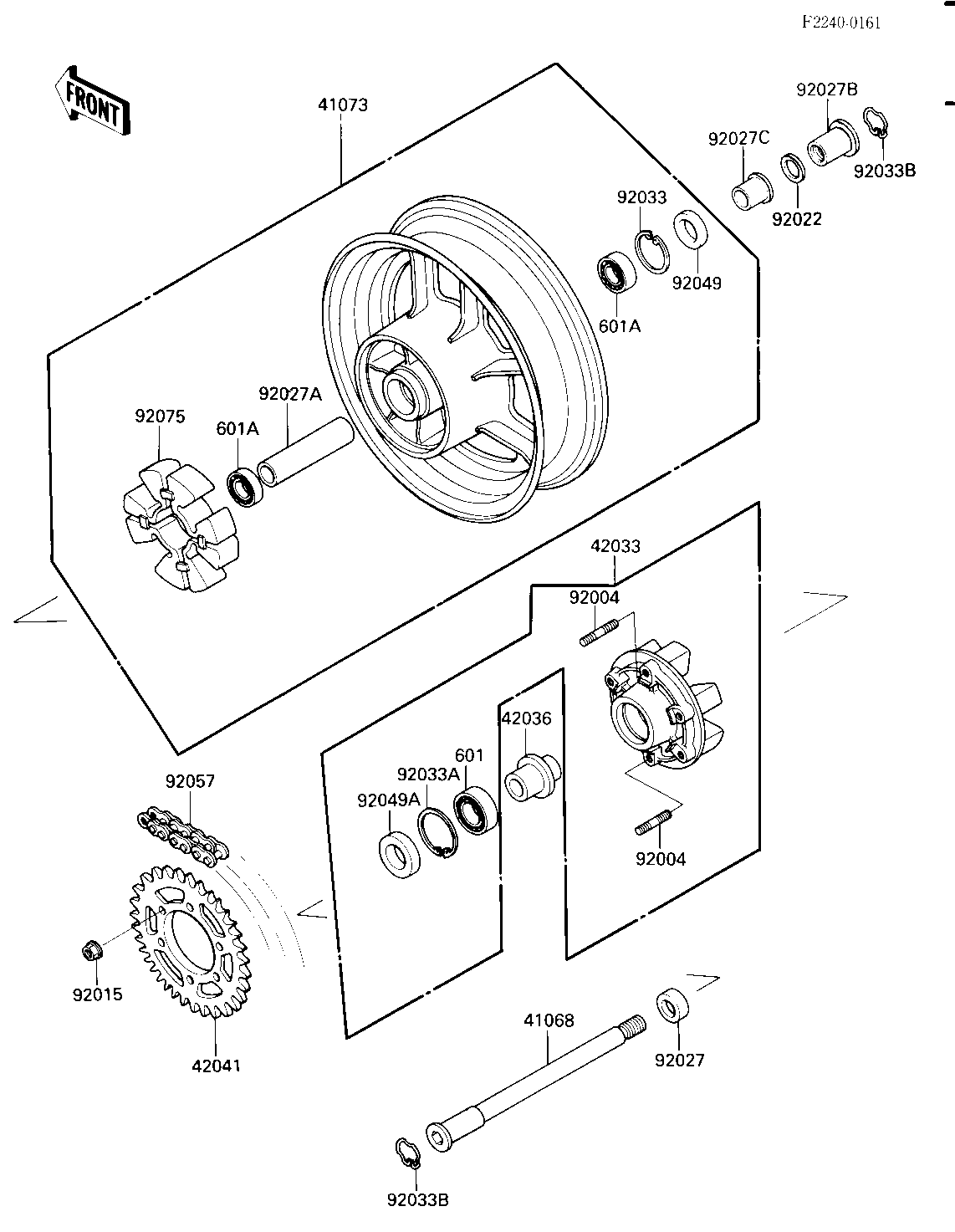

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| AXLE,RR | 41068 | 41068-1162 | 1 | ||
| WHEEL-ASSY,RR,M.GRAY | 41073 | 41073-1283-J9 | 1 | ||
| COUPLING-ASSY,RR HUB | 42033 | 42033-1110 | 1 | ||
| SLEEVE,RR HUB COUPLNG | 42036 | 42036-1030 | 1 | ||
| SPROCKET-HUB,50T | 42041 | 42041-1190 | 1 | ||
| STUD,10X19.5 | 92004 | 92004-1151 | 6 | ||
| NUT,FLANGED,10MM | 92015 | 92015-1502 | 6 | ||
| WASHER,23X32X2.3 | 92022 | 92022-1618 | 1 | ||
| COLLAR,RR HUB COUPLIN | 92027 | 92027-1713 | 1 | ||
| COLLAR,L=104 | 92027A | 92027-1714 | 1 | ||
| COLLAR,RR AXLE,L=28 | 92027B | 92027-1810 | 1 | ||
| COLLAR,RR HUB,L=33 | 92027C | 92027-1811 | 1 | ||
| CIRCLIP,47M/M | 92033 | 92033-1042 | 1 | ||
| CIRCLIP,62M/M | 92033A | 92033-1044 | 1 | ||
| RING-SNAP,RR AXLE | 92033B | 92033-1156 | 2 | ||
| OIL SEAL,AG1556EO | 92049 | 92049-1056 | 1 | ||
| OIL SEAL | 92049A | 92050-027 | 1 | ||
| CHAIN,DRIVE,EK530KVDO | 92057 | 92057-1169 | 1 | ||
| DAMPER,SHOCK,RR HUB | 92075 | 92075-1593 | 1 | ||
| BALL BEARING,#6206 | 601 | 601B6206 | 1 | ||
| BRG,BALL,#6303ZZC3 | 601A | 601B6303ZZ | 2 |
