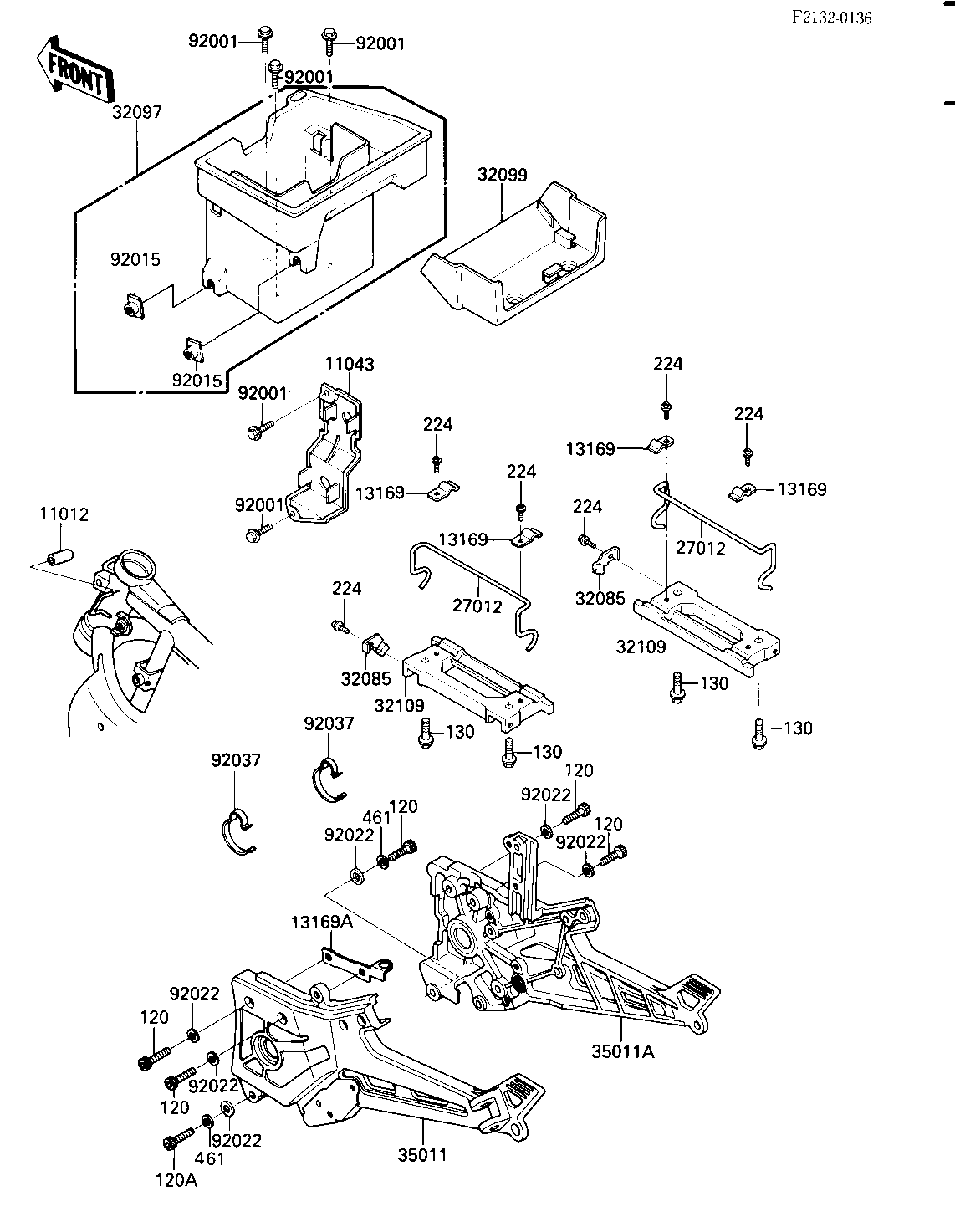

1984 Ninja® - BATTERY CASE/ELECTRO BRACKET
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,CABLE CLAMP | 11012 | 11012-1438 | 1 | ||
| BRACKET,ELECTRIC | 11043 | 11043-1419 | 1 | ||
| PLATE,GRIP | 13169 | 13169-1760 | 4 | ||
| PLATE,STAY,UPP,LH | 13169A | 13169-1928 | 1 | ||
| HOOK,GRIP | 27012 | 27012-1311 | 2 | ||
| STOPPER,HOOK | 32085 | 32085-1187 | 2 | ||
| CASE-BATTERY | 32097 | 32097-1102 | 1 | ||
| CASE,SEAT COVER | 32099 | 32099-1064 | 1 | CN,US | |
| GRIP-FRAME | 32109 | 32109-1108 | 2 | ||
| STAY,MUFFLER,LH | 35011 | 35011-1214 | 1 | ||
| STAY,MUFFLER,RH | 35011A | 35011-1215 | 1 | ||
| BOLT,6X12 | 92001 | 92001-1771 | 5 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1303 | 2 | ||
| WASHER,8.5X16X2.5 | 92022 | 92022-1595 | 6 | ||
| CLAMP | 92037 | 92037-1552 | 2 | ||
| BOLT | 120 | 120P0835 | 5 | ||
| BOLT,ALLEN,8X45 | 120A | 120P0845 | 1 | ||
| BOLT,FLANGED,8X14 | 130 | 130G0814 | 4 | ||
| SCREW-PAN-WP-CROS | 224 | 224C0508 | 6 | ||
| WASHER SPRING 8MM | 461 | 461F0800 | 2 |
