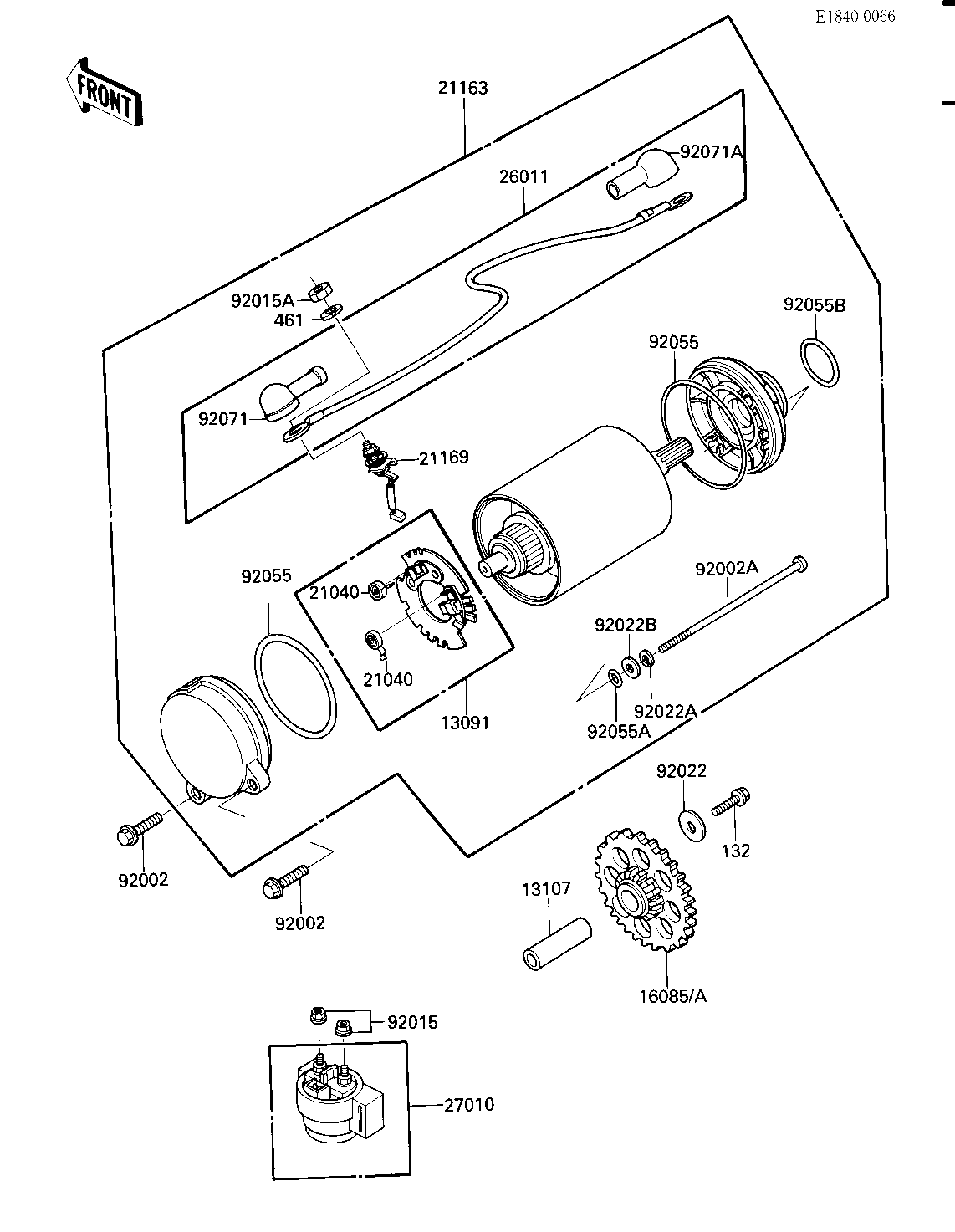

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER,CARBON BRUSH | 13091 | 13091-1325 | 1 | ||
| SHAFT,IDLE GEAR | 13107 | 13107-1106 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 16085 | 16085-3 | 1 | ||
| SPRING-BRUSH | 21040 | 21040-1051 | 2 | ||
| STARTER-ELECTRIC | 21163 | 21163-1060 | 1 | ||
| TERMINAL,STARTER | 21169 | 21169-1051 | 1 | ||
| WIRE-LEAD,STARTER MOT | 26011 | 26011-1286 | 1 | ||
| SWITCH,STARTER | 27010 | 27010-1314 | 1 | ||
| BOLT,6X20 | 92002 | 92001-1947 | 2 | ||
| BOLT | 92002A | 92002-1377 | 2 | ||
| NUT-6MM | 92015 | 92015-1078 | 2 | ||
| NUT,6MM | 92015A | 92015-1457 | 1 | ||
| WASHER,6X19.5X2 | 92022 | 92022-1517 | 1 | ||
| WASHER-SPRING | 92022A | 92022-1622 | 2 | ||
| WASHER | 92022B | 92022-1623 | 2 | ||
| RING-O,64MM | 92055 | 92055-1260 | 2 | ||
| O-RING | 92055A | 92055-1261 | 2 | ||
| RING-O,24.4MM | 92055B | 92055-1262 | 1 | ||
| GROMMET,STARTER TERMI | 92071 | 92071-1120 | 1 | ||
| GROMMET,TERMINAL | 92071A | 92071-1121 | 1 | ||
| BOLT-FLANGED-SMALL | 132 | 132G0612 | 1 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 1 |
| HOLDER,CARBON BRUSH | |
| REF # | 13091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT,IDLE GEAR | |
| REF # | 13107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 16085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING-BRUSH | |
| REF # | 21040 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| STARTER-ELECTRIC | |
| REF # | 21163 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TERMINAL,STARTER | |
| REF # | 21169 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRE-LEAD,STARTER MOT | |
| REF # | 26011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH,STARTER | |
| REF # | 27010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X20 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT-6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,6X19.5X2 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-SPRING | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92022B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-O,64MM | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| O-RING | |
| REF # | 92055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-O,24.4MM | |
| REF # | 92055B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET,STARTER TERMI | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET,TERMINAL | |
| REF # | 92071A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
