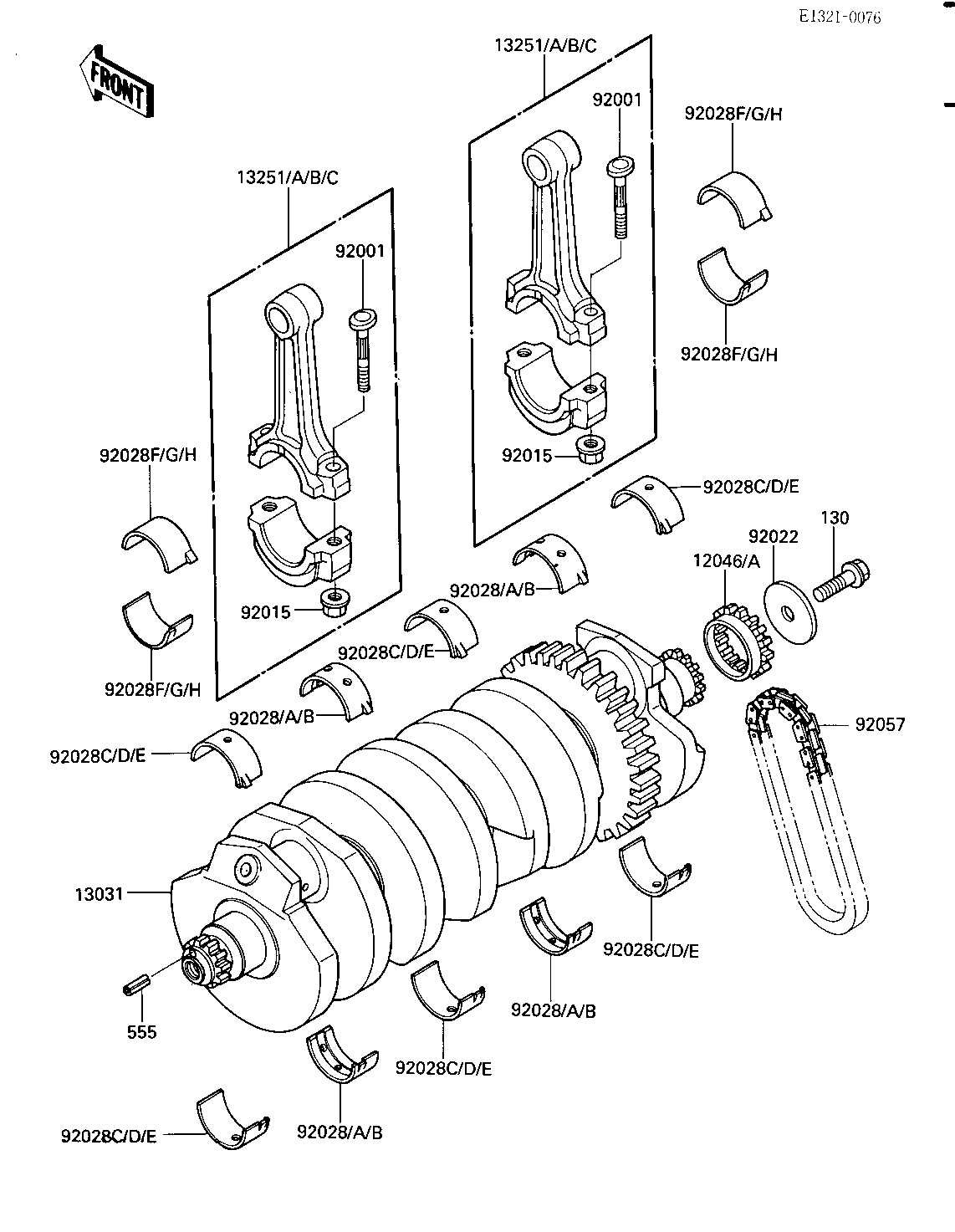

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SPROCKET,19T | 12046 | 12046-1057 | 1 | ||
| CRANKSHAFT-COMP | 13031 | 13031-1332 | 1 | ||
| ROD-ASSY-CONNECTING,J | 13251 | 13251-1052-JJ | 4 | ||
| ROD-ASSY-CONNECTING,J | 13251A | 13251-1052-JJ | 4 | ||
| ROD-ASSY-CONNECTING,J | 13251B | 13251-1052-JJ | 4 | ||
| ROD-ASSY-CONNECTING,J | 13251C | 13251-1052-JJ | 4 | ||
| BOLT,CONNECTING ROD,8 | 92001 | 92001-1887 | 8 | ||
| NUT,FLANGED,8MM | 92015 | 92015-1311 | 8 | ||
| WASHER,8.5X36X4 | 92022 | 92022-1633 | 1 | ||
| BUSHING,CRANKSHAFT | 92028 | 92028-1100 | AR | ||
| BUSHING,CRANKSHAFT | 92028A | 92028-1101 | AR | ||
| BUSHING,CRANKSHAFT | 92028B | 92028-1102 | AR | ||
| BUSHING,CRANKSHAFT,BL | 92028C | 92028-1272 | AR | ||
| BUSHING,CRANKSHAFT,BL | 92028D | 92028-1273 | AR | ||
| BUSHING,CRANKSHAFT,BR | 92028E | 92028-1274 | AR | ||
| BUSHING,CONNECTING RO | 92028F | 92028-1321 | AR | ||
| BUSHING,CONNECTING RO | 92028G | 92028-1322 | AR | ||
| BUSHING,CONNECTING RO | 92028H | 92028-1323 | AR | ||
| CHAIN | 92057 | 92057-1292 | 1 | ||
| BOLT-FLANGED,8X25 | 130 | 130G0825 | 1 | ||
| PIN-SPRING | 555 | 555A0410 | 1 |
| SPROCKET,19T | |
| REF # | 12046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANKSHAFT-COMP | |
| REF # | 13031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-ASSY-CONNECTING,J | |
| REF # | 13251 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| ROD-ASSY-CONNECTING,J | |
| REF # | 13251A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| ROD-ASSY-CONNECTING,J | |
| REF # | 13251B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| ROD-ASSY-CONNECTING,J | |
| REF # | 13251C |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,CONNECTING ROD,8 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| WASHER,8.5X36X4 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANKSHAFT | |
| REF # | 92028 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANKSHAFT | |
| REF # | 92028A |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANKSHAFT | |
| REF # | 92028B |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANKSHAFT,BL | |
| REF # | 92028C |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANKSHAFT,BL | |
| REF # | 92028D |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANKSHAFT,BR | |
| REF # | 92028E |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CONNECTING RO | |
| REF # | 92028F |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CONNECTING RO | |
| REF # | 92028G |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CONNECTING RO | |
| REF # | 92028H |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| CHAIN | |
| REF # | 92057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X25 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-SPRING | |
| REF # | 555 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
