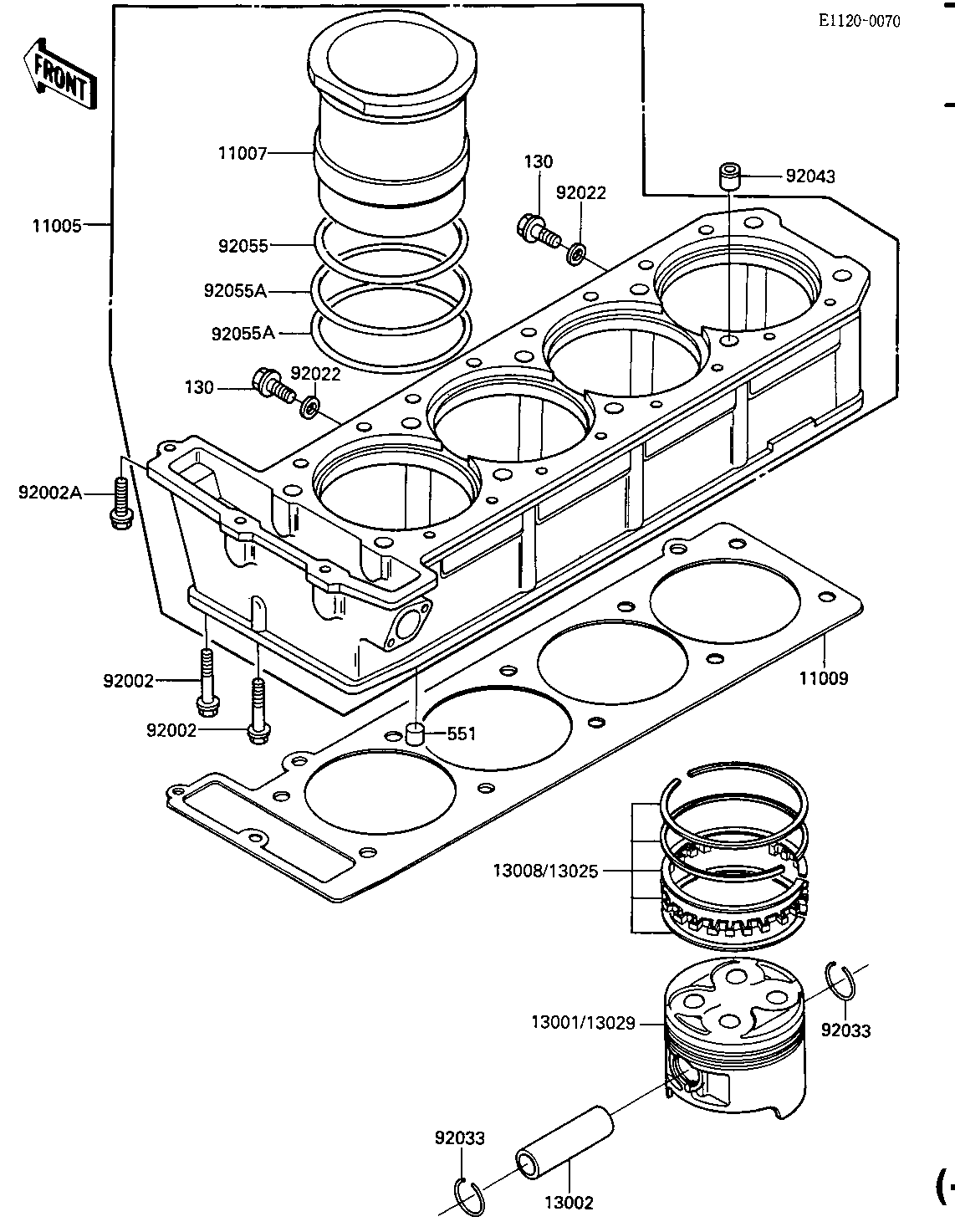

1984 Ninja® - CYLINDER/PISTONS (-E/NO. 030893)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CYLINDER-ENGINE 11005 11005-1352 1
LINER-CYLINDER 11007 11007-1063 4
GASKET,CYLINDER BASE 11009 11009-1386 1
PISTON-ENGINE,STD 13001 13001-1205 4
PIN-PISTON,12X18X57.2 13002 13002-1023 4
RING-SET-PISTON,STD 13008 13008-1053 4
RING-SET PISTON L,O/S 13025 13025-1053 4
PISTON-ENGINE L,O/S 0 13029 13029-1142 4
BOLT,6X38 92002 92001-1899 2
BOLT,6X30 92002A 92002-1138 1
WASHER,PLAIN 92022 92022-304 2
RING-SNAP,18MM 92033 92033-1099 8
PIN,DOWEL,14MM 92043 92042-032 2
RING-O,78MM 92055 92055-1229 4
RING-O,79.5MM 92055A 92055-1230 8
BOLT-FLANGED,6X10,BLA 130 130C0610 2
PIN-DOWEL 551 551A1012 2
