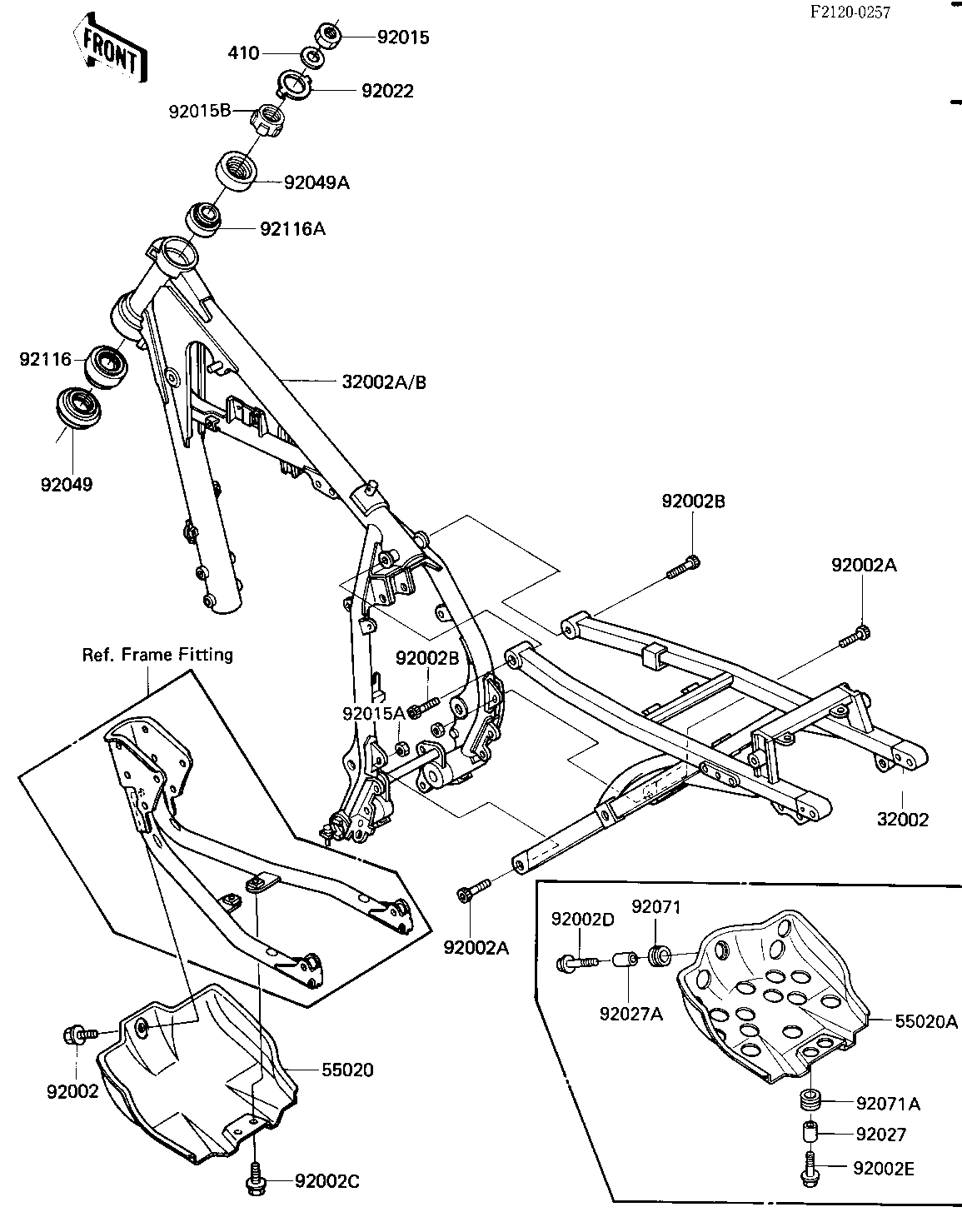

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FRAME-COMP,RR | 32002 | 32002-1662 | 1 | ||
| FRAME-COMP,FR | 32002A | 32002-1675 | 1 | CN,US | |
| FRAME-COMP,FR | 32002B | 32002-1755 | 1 | CA | |
| GUARD,ENGINE | 55020 | 55020-1184 | 1 | (JKAKL4A1 EA009467) | |
| GUARD,ENGINE | 55020A | 55020-1184 | 1 | (JKAKL4A1 EA009468) | |
| BOLT,8X12 | 92002 | 92002-1117 | 1 | (JKAKL4A1 EA009467) | |
| BOLT,SOCKET,8X30 | 92002A | 92002-1179 | 2 | ||
| BOLT,SOCKET,8X40 | 92002B | 92002-1181 | 2 | ||
| BOLT,FLANGED,6X12 | 92002C | 92002-1186 | 2 | (JKAKL4A1 EA009467) | |
| BOLT,FLANGED,8X20 | 92002D | 92002-1417 | 1 | (JKAKL4A1 EA009468) | |
| BOLT,6X20 | 92002E | 92002-1418 | 2 | (JKAKL4A1 EA009468) | |
| NUT,18MM | 92015 | 92015-1404 | 1 | ||
| NUT,8MM | 92015A | 92015-1406 | 2 | ||
| NUT | 92015B | 92015-1546 | 1 | ||
| WASHER,CLAW,18.5X30X2 | 92022 | 92022-1555 | 1 | ||
| COLLAR | 92027 | 92027-153 | 2 | (JKAKL4A1 EA009468) | |
| COLLAR,L=12 | 92027A | 92027-1842 | 1 | (JKAKL4A1 EA009468) | |
| SEAL-OIL,XMHE36X52X4J | 92049 | 92049-1162 | 1 | ||
| SEAL-OIL,STEERING STE | 92049A | 92049-1214 | 1 | ||
| GROMMET | 92071 | 92071-1010 | 1 | (JKAKL4A1 EA009468) | |
| GROMMET,RESERVIOR TAN | 92071A | 92071-1115 | 2 | (JKAKL4A1 EA009468) | |
| BRG,ROLLER,HR320/28XJ | 92116 | 92116-1009 | 1 | ||
| BEARING-ROLLER,25X47X | 92116A | 92116-1052 | 1 | ||
| W-PLAIN-S | 410 | 410F1800 | 1 |
