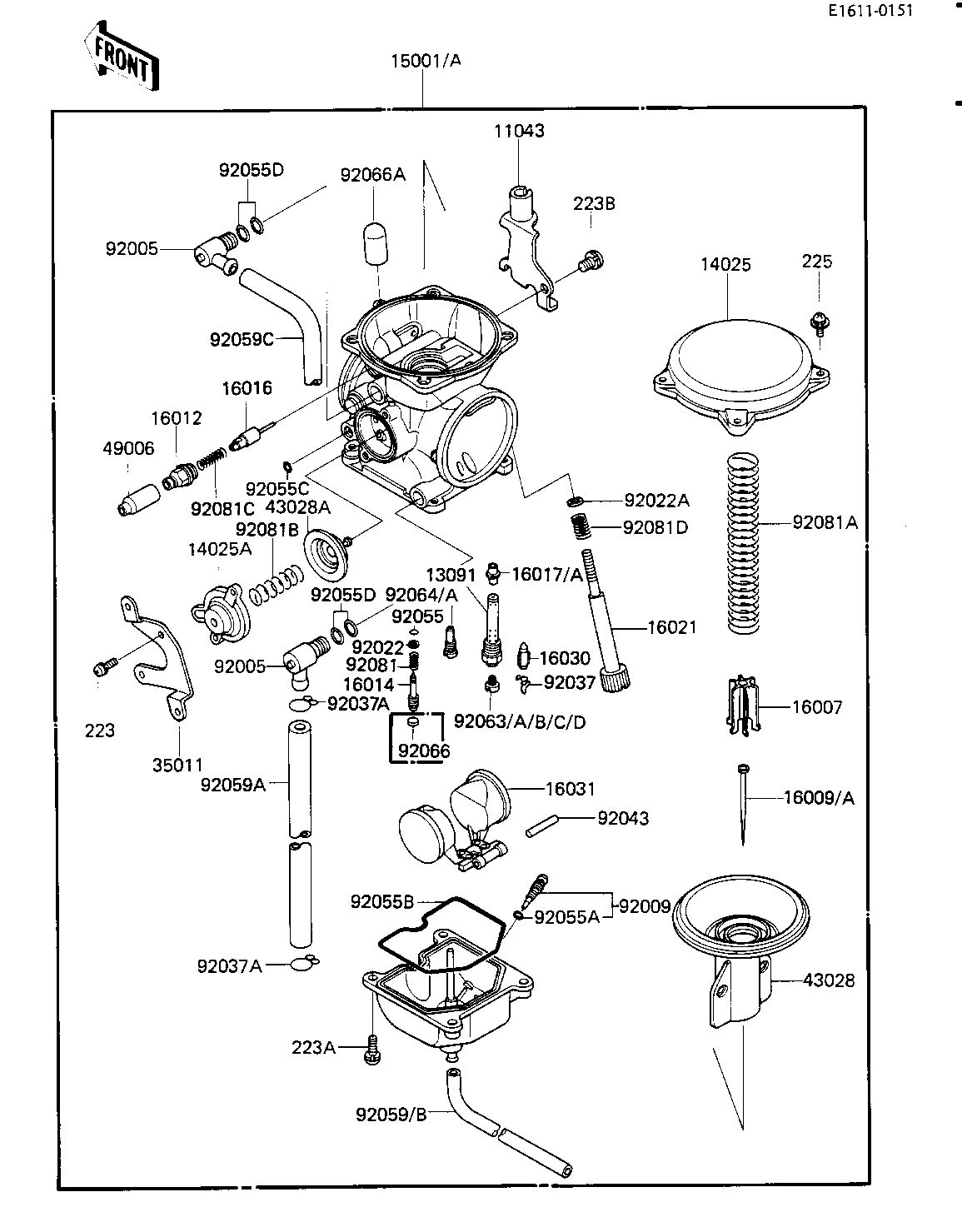

1984 KL600 - CARBURETOR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-B,THROTTLE CA 11043 11043-1336 1
HOLDER,NEEDLE JET,03E 13091 13091-1312 1
COVER,MIXING CHAMBER 14025 14025-1890 1
COVER,AIR CUT VALVE 14025A 14025-1903 1
CARBURETOR (Canada) 15001 16001-1960 1 CN
CARBURETOR 15001A 16001-1961 1 CA,US
SEAT-SPRING,DIAPHRAGM 16007 16007-1113 1
NEEDLE-JET,N24C 16009 16009-1233 1 CA,US
NEEDLE-JET,N24B (Canada) 16009A 16009-1234 1 CN
CAP-STARTER PLUNGER 16012 16012-1055 1
SCREW-PILOT AIR 16014 16014-1053 1
PLUNGER 16016 16016-1057 1
JET-NEEDLE,#6 (Canada) 16017 16017-1253 1 CN
JET-NEEDLE,01A36 16017A 16017-1254 1 CA,US
SCREW-THROTTLE STOP 16021 16021-1109 1
VALVE-FLOAT 16030 16030-1057 1
FLOAT 16031 16031-1056 1
STAY,AIR CUT VALVE 35011 35011-1232 1
DIAPHRAGM,VALVE 43028 43028-1062 1
DIAPHRAGM,AIR CUT VAL 43028A 43028-1053 1
BOOT,STARTER PLUNGER 49006 49006-1165 1
FITTING,L-TYPE 92005 92005-1120 2
SCREW,DRAIN 92009 92009-1095 1
WASHER,PLAIN 92022 92022-1003 1
WASHER,THROTTLE STOP 92022A 92022-1587 1
CLIP,FLOAT VALVE 92037 16044-007 1
CLAMP,TUBE 92037A 92037-1531 2
PIN,FLOAT 92043 92043-1148 1
O RING,PILOT ADJ 92055 92055-1002 1
"O" RING,DRAIN SCREW 92055A 92055-1053 1
RING-O,FLOAT CHAMBER 92055B 92055-1222 1
RING-O 92055C 92055-1245 1
RING-O 92055D 92055-1246 4
TUBE,3.5X6.5X330,OVER 92059 92059-1380 1 CN
TUBE,6.5X11.5X150 92059A 92059-1463 1
TUBE,3.5X6.5X210 92059B 92059-1464 1 CA,US
TUBE,6.5X9.5X500 92059C 92059-1465 1
MAIN JET,#140 92063 92063-1013 1 (OFF ROAD USE ONLY)
MAIN JET,#135 92063A 92063-1014 1 (OFF ROAD USE ONLY)
MAIN JET,#138 92063B 92063-1015 1
MAIN JET,#142 92063C 92063-1016 1 (OFF ROAD USE ONLY)
JET-MAIN,#132 92063D 92063-1076 1 (OFF ROAD USE ONLY)
JET-PILOT,#38 92064 92064-1050 1 (OFF ROAD USE ONLY)
JET-PILOT,#40 92064A 92064-1108 1
PLUG,PILOT SCREW 92066 92066-1051 1 CA,US
RUBBER PLUG 92066A 92068-006 1
SPRING,PIROT ADJ SCRW 92081 92081-1002 1
SPRING,DIAPHRAGM VALV 92081A 92081-1718 1
SPRING,AIR CUT VALVE 92081B 92081-1719 1
SPRING,PLUNGER 92081C 92081-1720 1
SPRING,THROTTLE STOP 92081D 92081-1721 1
SCREW-PAN-WS-CROS 223 223C0410 2
SCREW-PAN-WS-CROS 223A 223C0416 4
SCREW-PAN-WS-CROS 223B 223C0510 1
SCREW-PAN-WSP-CROS 225 225C0418 4
