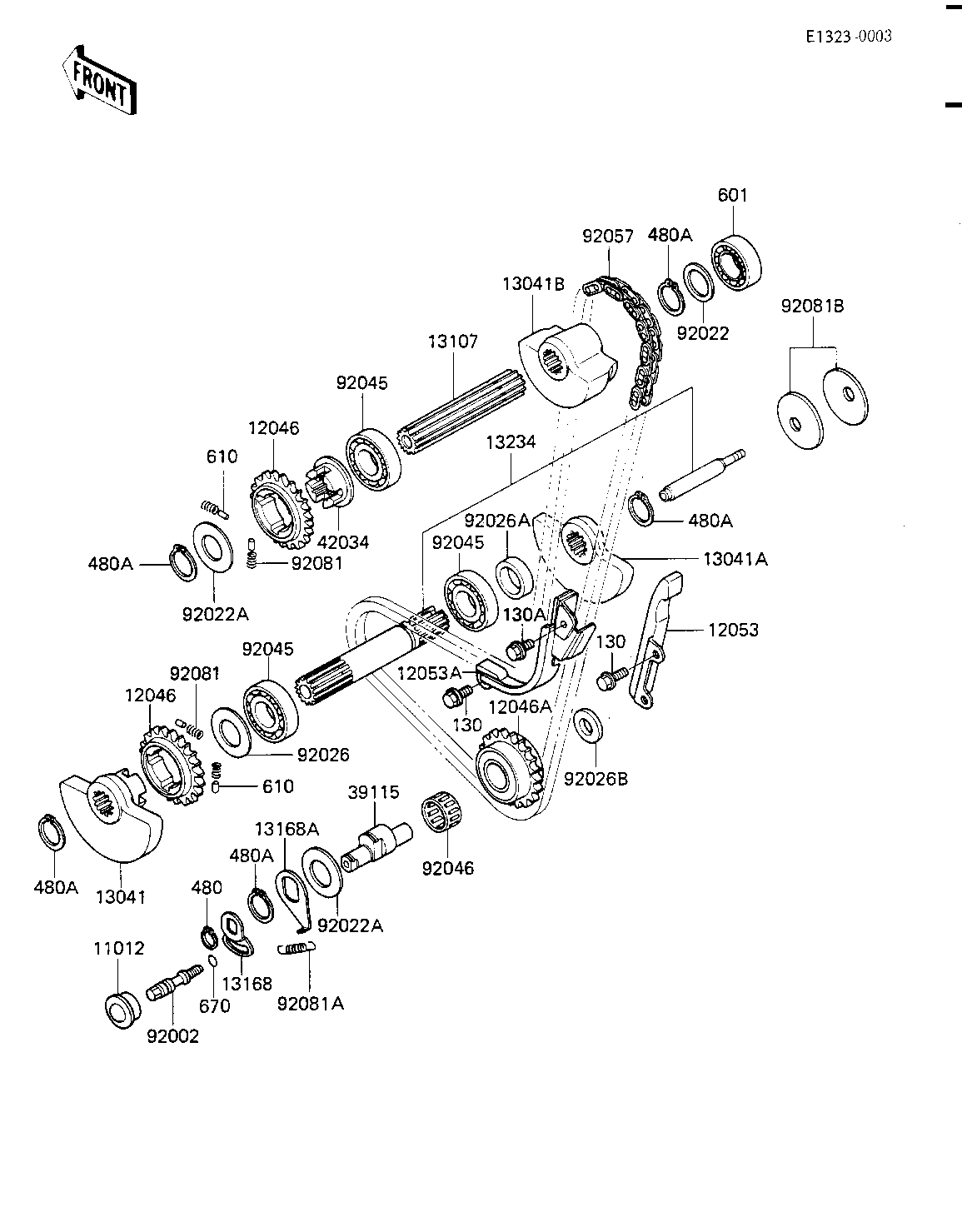

1984 KL600 - BALANCER

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1369 1
SPROCKET,BALANCER,18T 12046 12046-1053 2
SPROCKET,IDLER,18T 12046A 12046-1054 1
GUIDE-CHAIN,RR 12053 12053-1111 1
GUIDE-CHAIN 12053A 12053-1129 1
BALANCER,FR,LH 13041 13041-1078 1
BALANCER,FR,RH 13041A 13041-1052 1
BALANCER,RR 13041B 13041-1053 1
SHAFT,BALANCER,RR 13107 13107-1104 1
LEVER,IDLER SHAFT 13168 13168-1436 1
LEVER 13168A 13168-1238 1
SHAFT-COMP,BALANCER 13234 13234-1051 1
SHAFT-IDLER 39115 39115-1054 1
COUPLING,BALANCER 42034 42034-1053 1
BOLT,IDLER LEVER 92002 92001-1857 1
WASHER THRUST 92022 92022-112 1
WASHER,20.3X36X1.5 92022A 92022-1489 2
SPACER,20.2X36X3 92026 92026-1208 1
SPACER,20.2X30X11 92026A 92026-1209 1
SPACER,12.2X25X4.3 92026B 92026-1211 1
BEARING-BALL,#6204 92045 92045-1032 3
BEARING-NEEDLE,20X24X 92046 92046-1127 1
CHAIN,BALANCER,BF06HX 92057 92057-1158 1
SPRING,BALANCER 92081 92081-135 8
SPRING,IDLER SHAFT 92081A 92144-1445 1
SPRING,10.2X40X0.8 92081B 92081-1755 2
BOLT-FLANGED,6X16 130 130G0616 3
BOLT-FLANGED,6X18 130A 130G0618 1
CIRCLIP 12MM 480 480J1200 1
CIRCLIP, 20MM 480A 480J2000 5
BEARING-BALL 601 601A6004 1
PIN DOWEL 4X8 610 610A0408 8
"O" RING,7MM 670 670B1507 1
