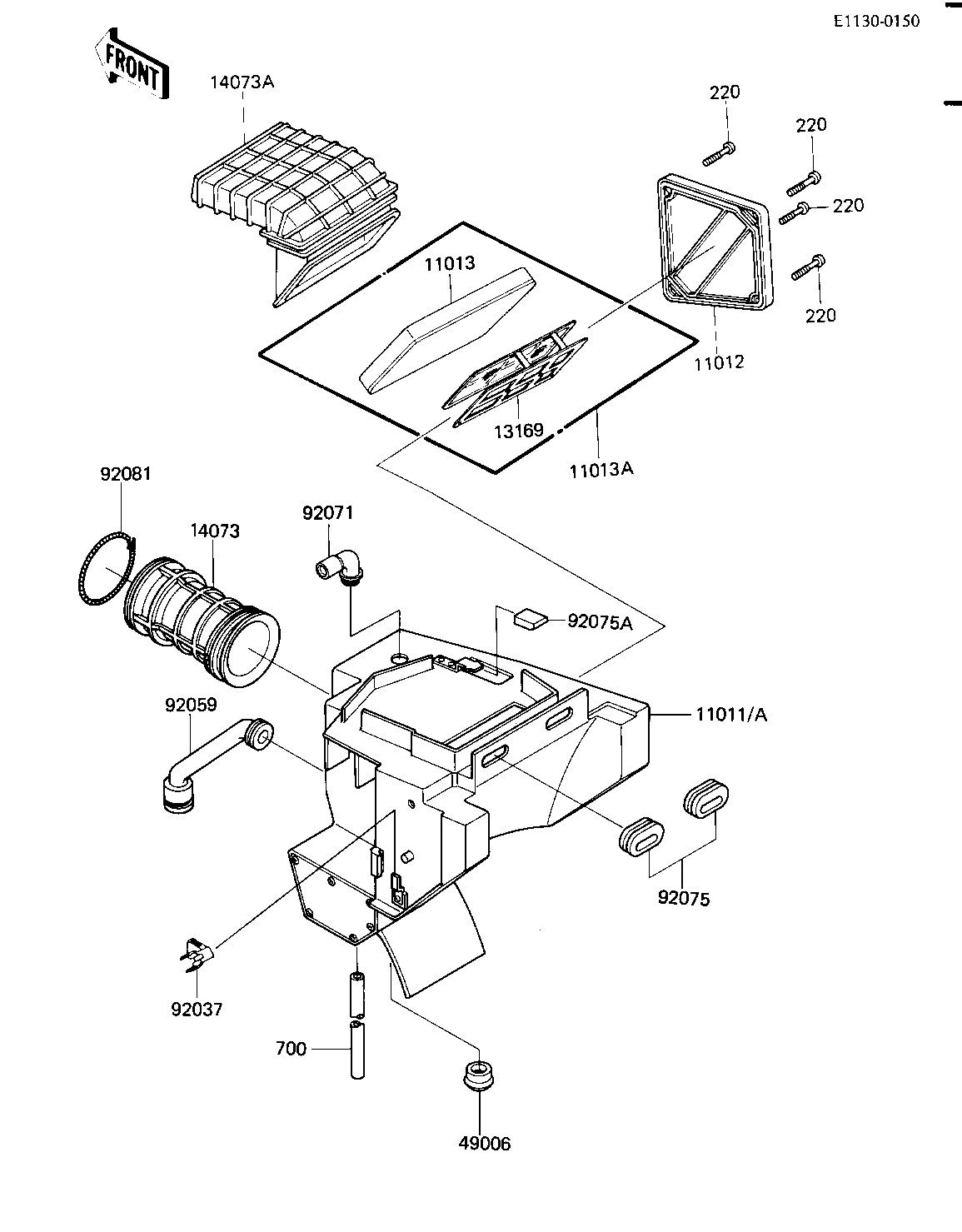

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CASE-AIR FILTER | 11011 | 11011-1160 | 1 | CN,US | |
| CASE-AIR FILTER | 11011A | 11011-1174 | 1 | CA | |
| CAP,ELEMENT | 11012 | 11012-1371 | 1 | ||
| ELEMENT-AIR FILTER | 11013 | 11013-1080 | 1 | ||
| ELEMENT-AIR FILTER | 11013A | 11013-1108 | 1 | ||
| PLATE,ELEMENT | 13169 | 13169-1632 | 1 | ||
| DUCT,CARBURETOR | 14073 | 14073-1161 | 1 | ||
| DUCT,INTAKE | 14073A | 14073-1162 | 1 | ||
| BOOT,AIR FILTER | 49006 | 49006-1098 | 1 | ||
| CLAMP | 92037 | 92037-1574 | 1 | ||
| TUBE,BREATHER | 92059 | 92059-1379 | 1 | ||
| GROMMET,AIR FILTER | 92071 | 92071-1114 | 1 | CA | |
| DAMPER,AIR FILTER | 92075 | 92075-1513 | 2 | ||
| DAMPER,AIR FILTER | 92075A | 92075-1589 | 1 | ||
| SPRING,DUCT | 92081 | 92081-1638 | 1 | ||
| SCREW PAN HEAD 6X12 | 220 | 220B0612 | 4 | ||
| TUBE-VINYL 6X300 | 700 | 700Q06300 | 1 |
