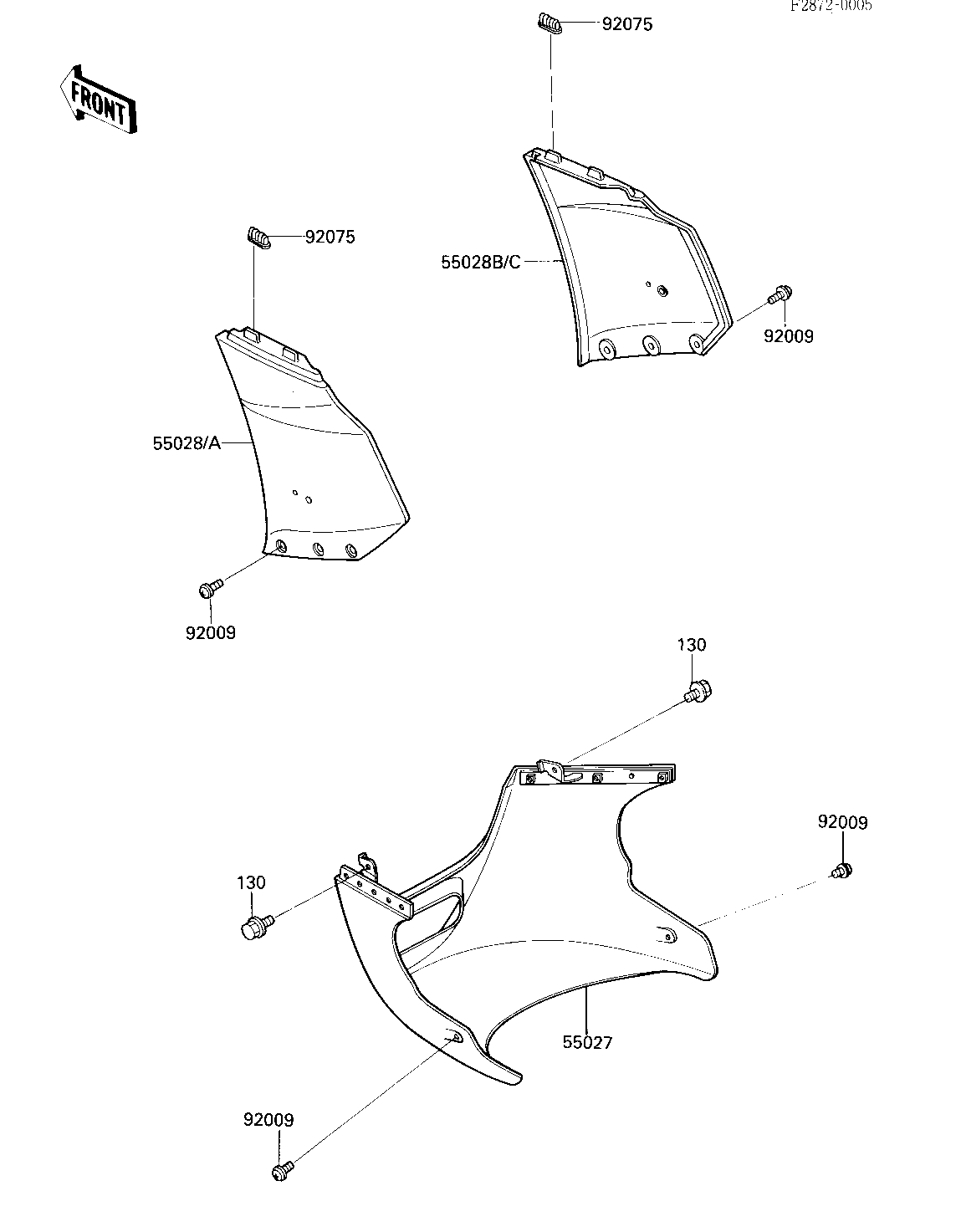

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COWLING-ASSY,LWR,F.BL | 55027 | 55027-1063-21 | 1 | ||
| COWLING,CNT,LH,F.RED (Canada) | 55028 | 55028-1083-B1 | 1 | CN | |
| COWLING,CNT,LH,EBONY | 55028A | 55028-1083-H8 | 1 | ||
| COWLING,CNT,RH,F.RED (Canada) | 55028B | 55028-1084-B1 | 1 | CN | |
| COWLING,CNT,RH,EBONY | 55028C | 55028-1084-H8 | 1 | ||
| SCREW,6X14 | 92009 | 92009-1288 | 8 | ||
| DAMPER,COWLING UPPER | 92075 | 92075-1565 | 4 | ||
| BOLT-FLANGED,6X12 | 130 | 130C0612 | 2 |
