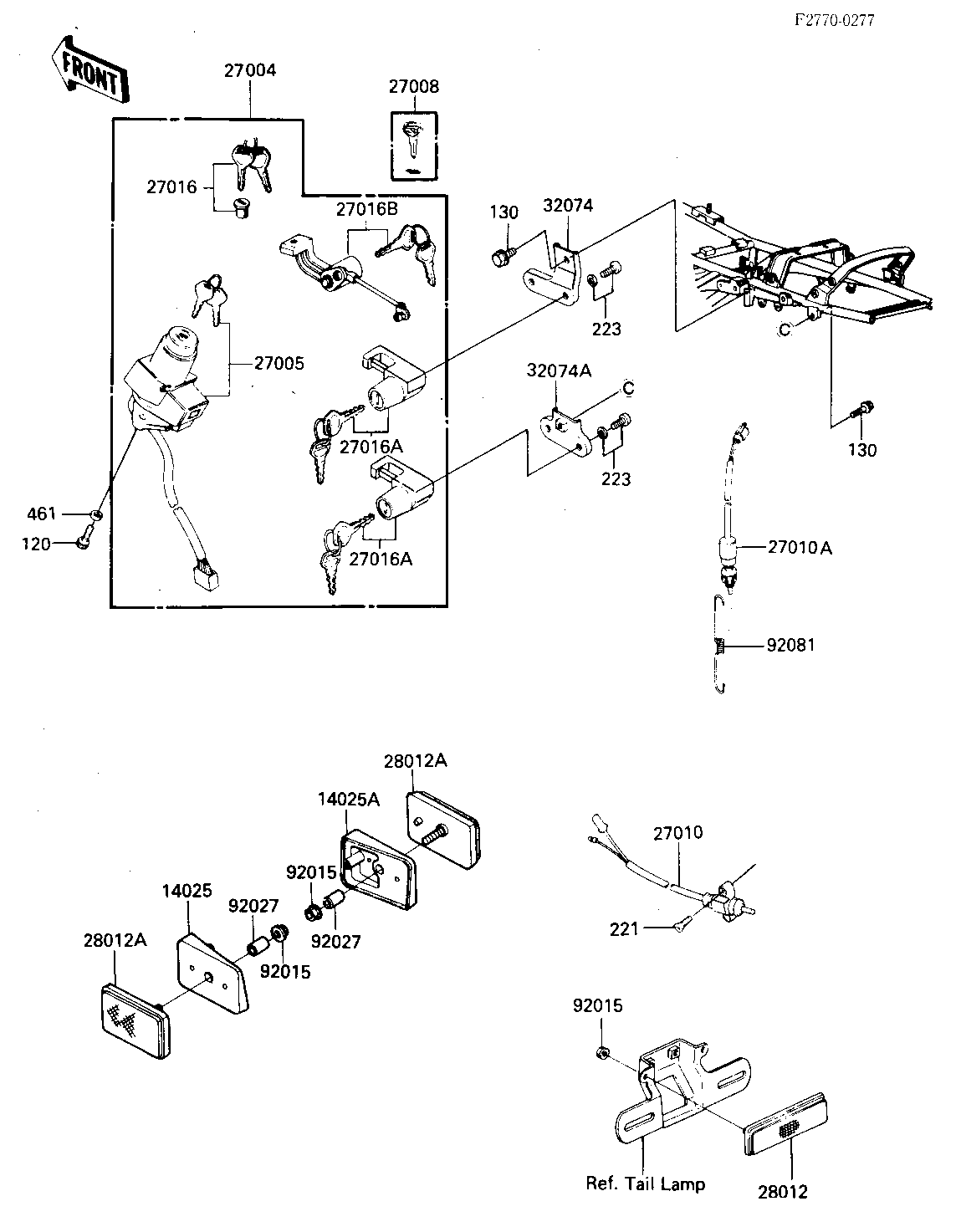

1985 GPz 750 - IGNITION SWITCH/LOCKS/REFLECTORS
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,REFLECTOR,FR | 14025 | 14025-1886 | 1 | ||
| COVER,REFLECTOR,FR | 14025A | 14025-1887 | 1 | ||
| SWITCH-ASSY | 27004 | 27004-5211 | 1 | ||
| SWITCH-ASSY-IGNITION | 27005 | 27005-5035 | 1 | ||
| KEY-LOCK,BLANK | 27008 | 27008-1103 | 1 | (OPTION) | |
| SWITCH,SIDE STAND | 27010 | 27010-1065 | 1 | ||
| SWITCH,BRAKE LAMP | 27010A | 27010-1093 | 1 | ||
| LOCK-ASSY,FUEL TANK | 27016 | 27016-5068 | 1 | ||
| LOCK-ASSY,HELMET | 27016A | 27016-5070 | 2 | ||
| LOCK-ASSY,SEAT | 27016B | 27016-5071 | 1 | ||
| REFLECTOR,REAR REFLEX | 28012 | 28012-1005 | 1 | ||
| REFLECTOR-REFLEX,FR | 28012A | 28012-1052 | 2 | ||
| BRACKET-LOCK,HELMET,F | 32074 | 32074-1058 | 2 | ||
| BRACKET-LOCK,HELMET,R | 32074A | 32074-1059 | 1 | ||
| NUT,FLANGED,5MM | 92015 | 92015-1259 | 4 | ||
| COLLAR,5X8X14.5 | 92027 | 92027-1789 | 2 | ||
| BRAKE SWITCH SPRING | 92081 | 27011-021 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 120 | 120A0616 | 2 | ||
| BOLT,FLANGED,6X10 | 130 | 130B0610 | 2 | ||
| SCREW-CSK-CROS | 221 | 221C0520 | 2 | ||
| SCREW-PAN-WS-CROS | 223 | 223B0508 | 4 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 2 |
