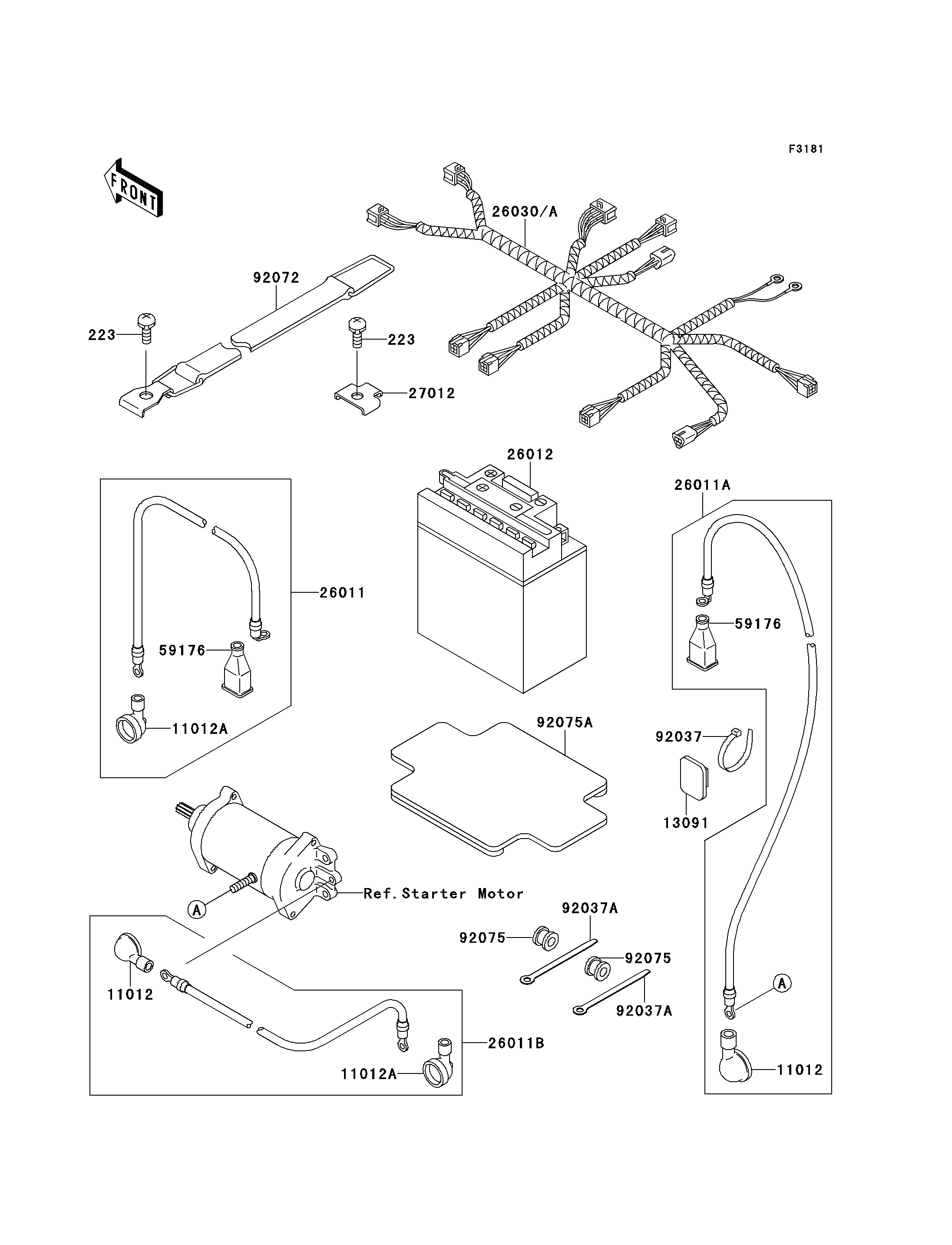

1996 Super Sport XI - Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
223
223
11012
11012
11012A
11012A
13091
26011
26011A
26011B
26012
26030
27012
59176
59176
92037
92037A
92037A
92072
92075
92075
92075A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-WS-CROS,6X14 223 223R0614 4
CAP 11012 11012-3004 2
CAP,LEAD WIRE 11012A 11012-3726 2
HOLDER,BAND 13091 13091-3764 1
WIRE-LEAD,RELAY-BATTERY 26011 26011-3795 1
WIRE-LEAD,STARTER-BATTERY 26011A 26011-3796 1
WIRE-LEAD,RELAY-STARTER 26011B 26011-3797 1
BATTERY,YB16CL-B,12V 19AH 26012 26012-3720 1
HARNESS 26030 26030-3705 1
HOOK 27012 27012-3751 2
CAP.,TERMINAL 59176 59176-501 2
CLAMP 92037 92037-1173 1
CLAMP,L=100 92037A 92037-3736 2
BAND,BATTERY 92072 92072-3748 2
DAMPER 92075 92075-1650 2
DAMPER,BATTERY 92075A 92075-3714 1
