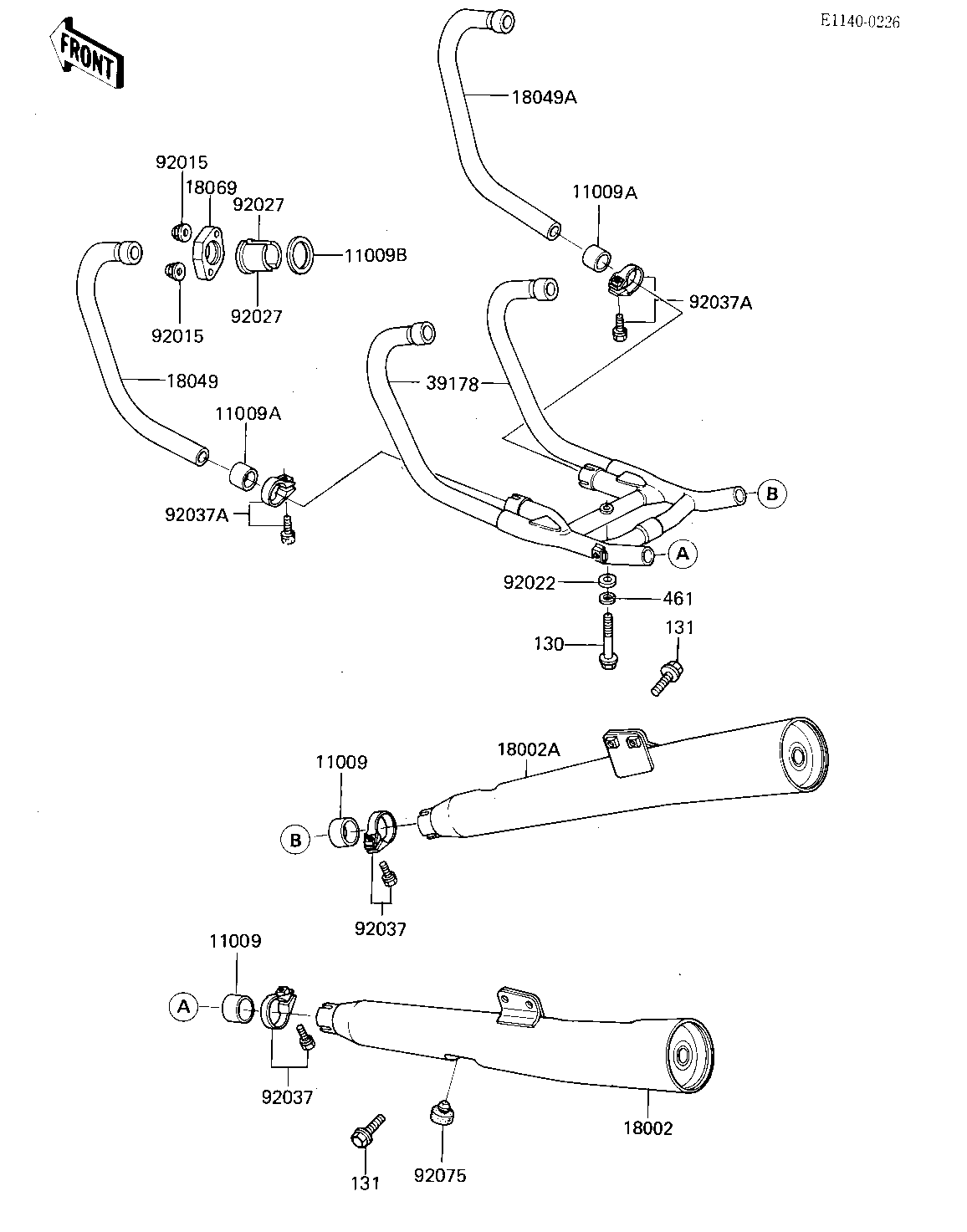

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,MANIFOLD EXHAU | 11009 | 11060-1068 | 2 | ||
| GASKET,EXHAUST PIPE C | 11009A | 11009-1667 | 2 | ||
| GASKET,EXHAUST PIPE H | 11009B | 11009-1866 | 4 | ||
| BODY-COMP-MUFFLER,LH | 18002 | 18002-1494 | 1 | ||
| BODY-COMP-MUFFLER,RH | 18002A | 18002-1495 | 1 | ||
| PIPE-EXHAUST,#2 | 18049 | 18049-1178 | 1 | ||
| PIPE-EXHAUST,#3 | 18049A | 18049-1179 | 1 | ||
| HOLDER-EXHAUST PIPE,F | 18069 | 18069-1029 | 4 | ||
| MANIFOLD-COMP-EXHAUST | 39178 | 39178-1020 | 1 | ||
| NUT,CAP,8MM,BLACK | 92015 | 92015-1174 | 8 | ||
| WASHER,10.5X26X2.3,BL | 92022 | 92022-1396 | 1 | ||
| COLLAR,L=14.5,BLACK | 92027 | 92027-1456 | 8 | ||
| CLAMP,MUFFLER,BLACK | 92037 | 92037-1270 | 2 | ||
| CLAMP,42MM,BLACK | 92037A | 92037-1350 | 2 | ||
| DAMPER RUBB MAIN STAD | 92075 | 92075-015 | 1 | ||
| BOLT-FLANGED | 130 | 130J0865 | 1 | ||
| BOLT-FLANGED,8X25,BLA | 131 | 131J0825 | 4 | ||
| WASHER-SPRING,8MM,BLA | 461 | 461K0800 | 1 |
