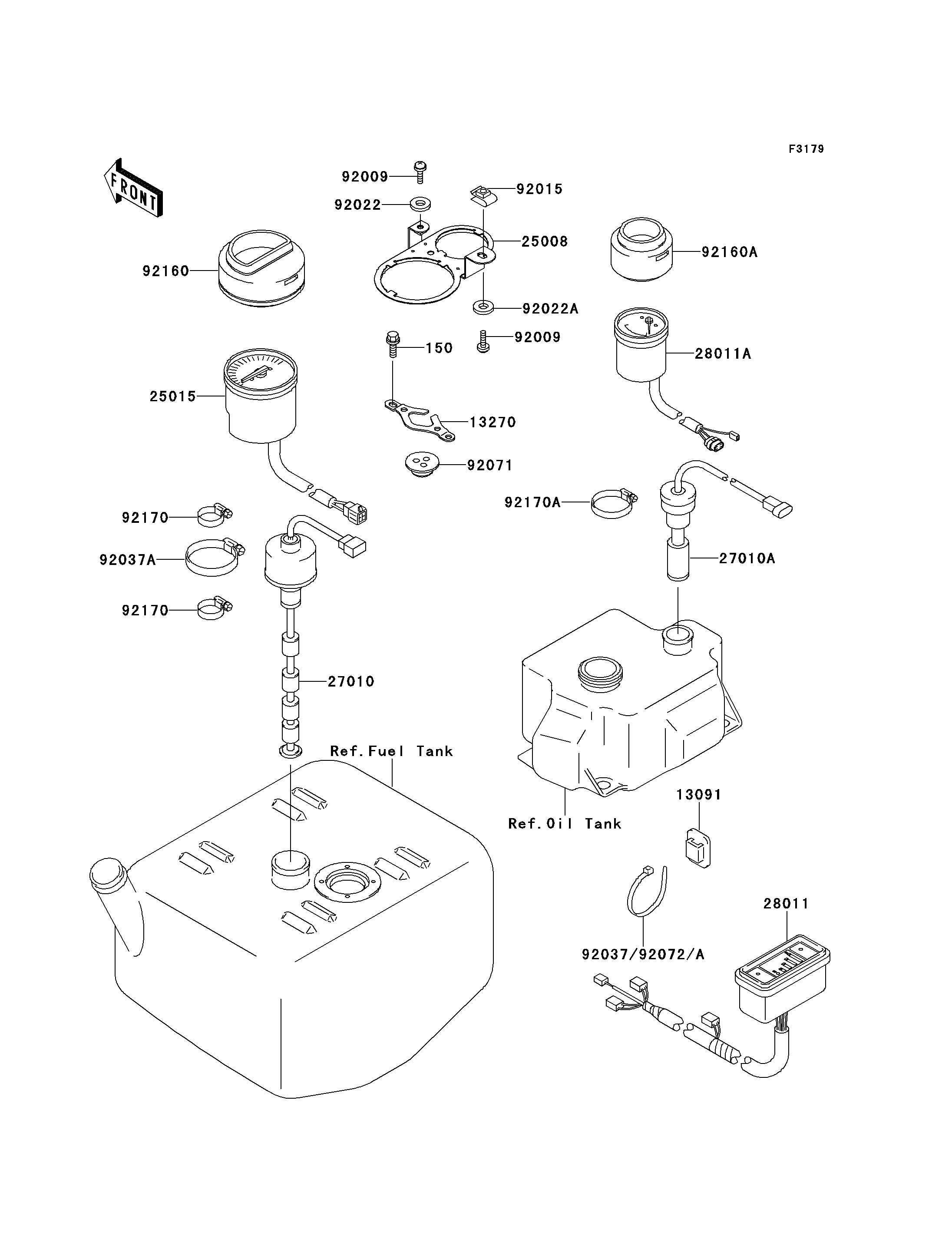

1996 Super Sport XI - Meters

DOWNLOAD PDF
SELECT A NEW PART
150
13091
13270
25008
25015
27010
27010A
28011
28011A
92009
92009
92015
92022
92022A
92037
92037A
92071
92072
92072A
92160
92160A
92170
92170
92170A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-WS,6X14 150 150R0614 2
HOLDER,BAND 13091 13091-3764 4
PLATE,GROMMET 13270 13270-3737 1
BRACKET-METER,TACHO&TRIM 25008 25008-3707 1
TACHOMETER,X1000R/MIN 25015 25015-3702 1
SWITCH,FUEL LEVEL 27010 27010-3727 1
SWITCH,OIL LEVEL 27010A 27010-3729 1
METER,FUEL 28011 28011-3702 1
METER,TRIM 28011A 28011-3717 1
SCREW,6X18 92009 92009-3805 2
NUT,6MM 92015 92015-3763 1
WASHER,6.5X16X1 92022 92022-1143 1
WASHER,6.5X20X1.5 92022A 92022-3710 1
CLAMP 92037 92037-1173 2
CLAMP 92037A 92037-3009 1
GROMMET 92071 92071-3797 1
BAND,L=292.1 92072 92072-3509 1
BAND 92072A 92072-3778 3
DAMPER,TACHOMETER 92160 92160-3829 1
DAMPER,TRIM METER 92160A 92160-3830 1
CLAMP 92170 92170-3718 2
CLAMP 92170A 92170-3734 1
