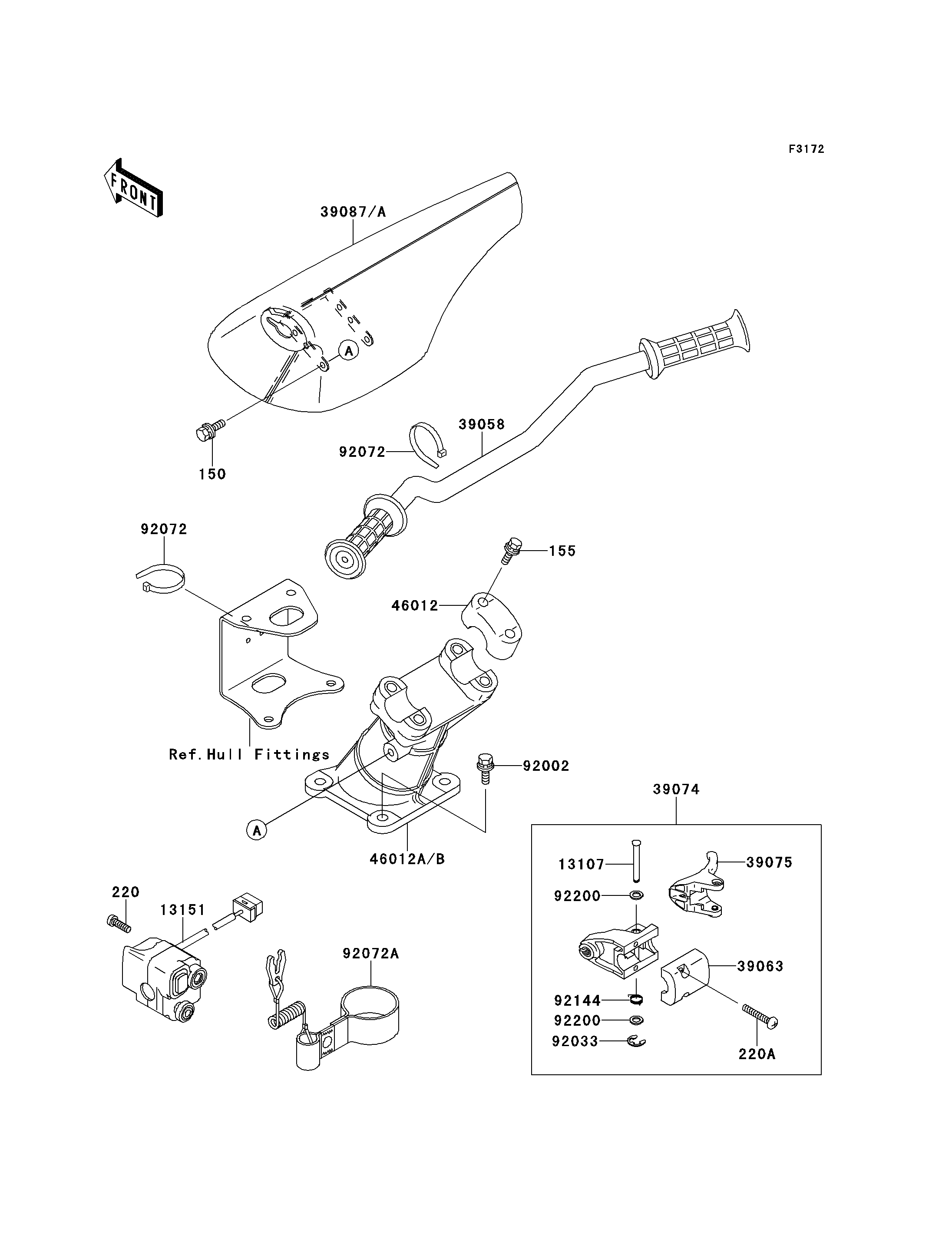

1996 Super Sport XI - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
150
155
220
220A
13107
13151
39058
39063
39074
39075
39087A
46012
46012A
92002
92033
92072
92072
92072A
92144
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-WS,6X14 150 150R0614 2
BOLT-WSP-SMALL,8X35 155 155R0835 4
SCREW-PAN-CROS,5X30 220 220R0530 3
SCREW-PAN-CROS 220A 220R0630 2
SHAFT 13107 13107-3740 1
SWITCH-COMP,STOP&START&TRIM 13151 13151-3713 1
HANDLE-COMP,GRAY 39058 39058-3714-RA 1
HOUSING-CONTROL 39063 39063-3720 1
LEVER-ASSY-THROTTLE 39074 39074-3717 1
LEVER-THROTTLE 39075 39075-3710 1
PAD-HANDLE,C.BLUE 39087A 39087-3717-PR 1
HOLDER-HANDLE,UPP 46012 46012-3720 2
HOLDER-HANDLE,LWR 46012A 46012-3723 1
BOLT,8X25 92002 92002-3774 4
RING-SNAP 92033 92033-3723 1
BAND 92072 92072-3778 2
BAND,TETHER SWITCH 92072A 92072-3784 1
SPRING 92144 92144-3749 1
WASHER 92200 92200-3738 2
