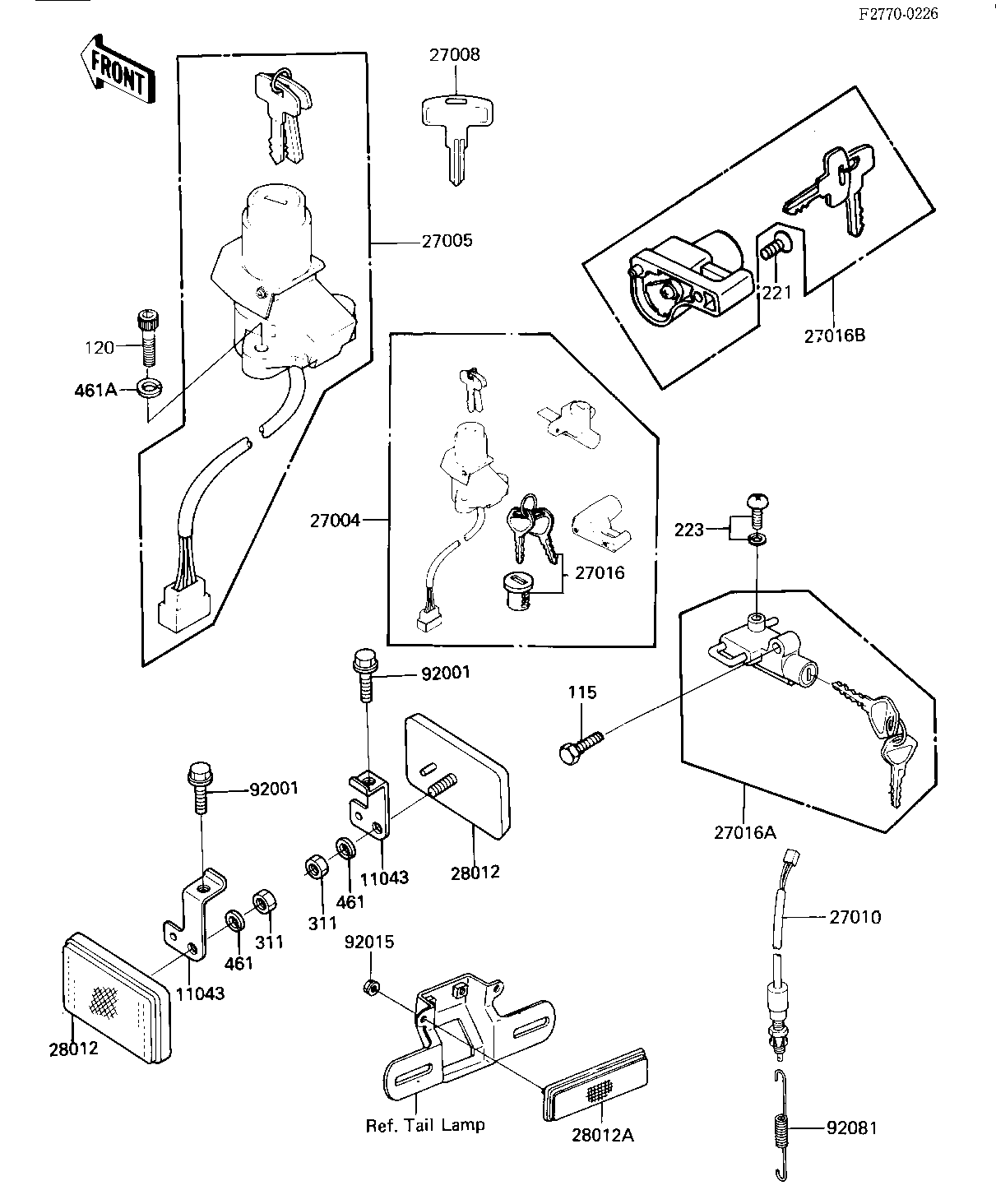

1986 GPz - IGNITION SWITCH/LOCKS/REFECTORS
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,FR,REFLECTOR | 11043 | 11043-1423 | 2 | ||
| SWITCH-ASSY | 27004 | 27004-5203 | 1 | ||
| SWITCH-ASSY-IGNITION | 27005 | 27005-5047 | 1 | ||
| KEY-LOCK,BLANK | 27008 | 27008-1103 | 1 | OPTION | |
| SWITCH,BRAKE LAMP | 27010 | 27010-1093 | 1 | ||
| LOCK-ASSY,FUEL TANK | 27016 | 27016-5068 | 1 | ||
| LOCK-ASSY,SEAT | 27016A | 27016-5069 | 1 | ||
| LOCK-ASSY,HELMET | 27016B | 27016-5067 | 1 | ||
| REFLECTOR,REFLEX(FRON | 28012 | 28012-1003 | 2 | ||
| REFLECTOR,REAR REFLEX | 28012A | 28012-1005 | 1 | ||
| BOLT,6X14,BLACK | 92001 | 92001-1847 | 2 | ||
| NUT,FLANGED,5MM | 92015 | 92015-1259 | 2 | ||
| SPRING-BRAKE LAMP SW | 92081 | 27011-011 | 1 | ||
| BOLT-SMALL-UPSET,8X30 | 115 | 115C0830 | 1 | ||
| BOLT-SOCKET | 120 | 120T0616 | 2 | ||
| SCREW-CSK-CROS | 221 | 221C0516 | 1 | ||
| SCREW-PAN-WS-CROS | 223 | 223C0610 | 1 | ||
| NUT,5MM | 311 | 311B0500 | 2 | ||
| WASHER SPRING 5MM | 461 | 461F0500 | 2 | ||
| WASHER-SPRING | 461A | 461L0600 | 2 |
| BRACKET,FR,REFLECTOR | |
| REF # | 11043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SWITCH-ASSY | |
| REF # | 27004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH-ASSY-IGNITION | |
| REF # | 27005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| KEY-LOCK,BLANK | |
| REF # | 27008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | OPTION |
| SWITCH,BRAKE LAMP | |
| REF # | 27010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LOCK-ASSY,FUEL TANK | |
| REF # | 27016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LOCK-ASSY,SEAT | |
| REF # | 27016A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LOCK-ASSY,HELMET | |
| REF # | 27016B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| REFLECTOR,REFLEX(FRON | |
| REF # | 28012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| REFLECTOR,REAR REFLEX | |
| REF # | 28012A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X14,BLACK | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,5MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING-BRAKE LAMP SW | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-SMALL-UPSET,8X30 | |
| REF # | 115 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-CSK-CROS | |
| REF # | 221 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-WS-CROS | |
| REF # | 223 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,5MM | |
| REF # | 311 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 5MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER-SPRING | |
| REF # | 461A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
