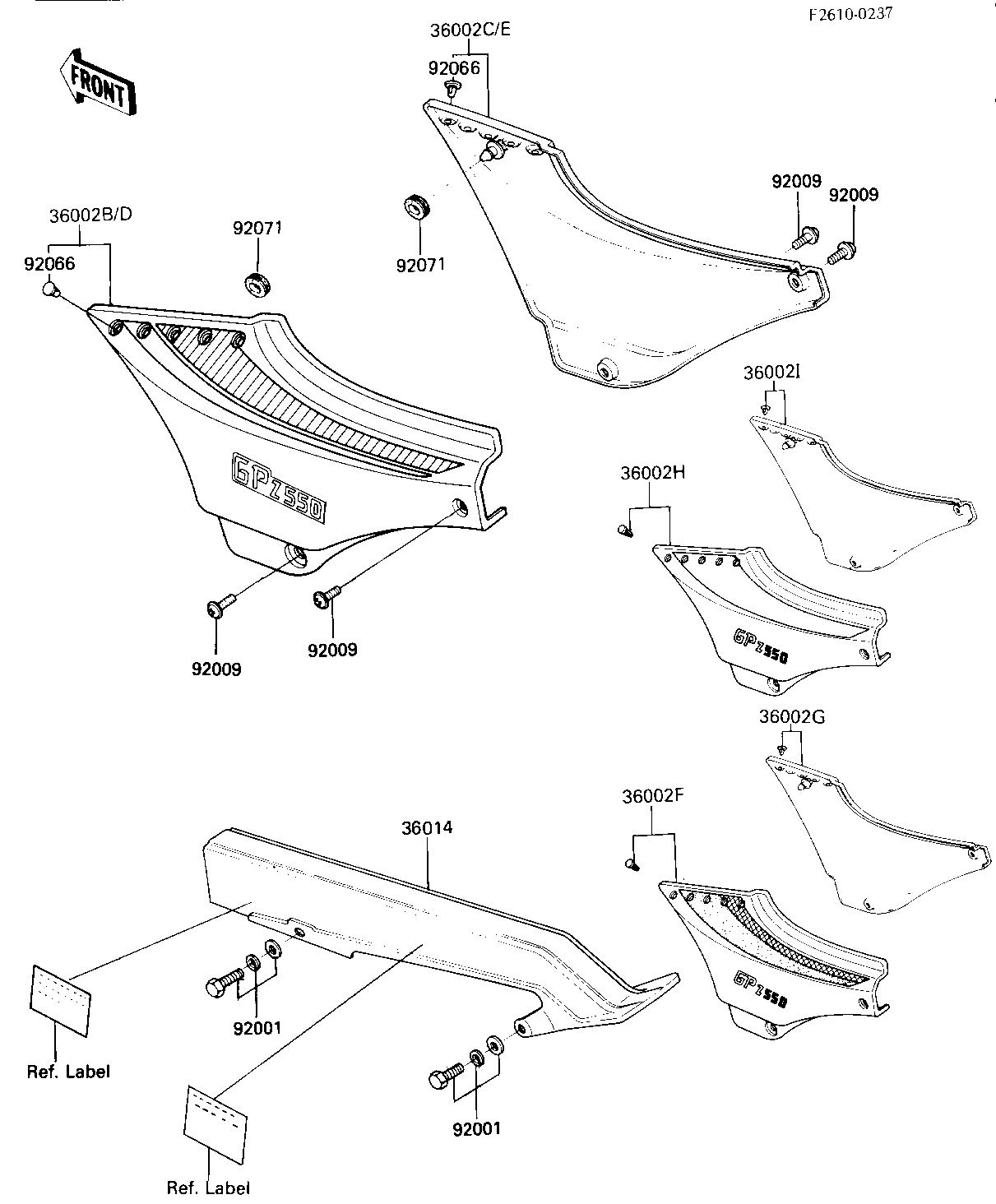

1986 GPz - SIDE COVERS/CHAIN COVER (ZX550-A1/A2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER-SIDE,LH,G.SILVE | 36002B | 36001-5356-F2 | 1 | ||
| COVER-SIDE,RH,G.SILVE | 36002C | 36001-5357-F2 | 1 | ||
| COVER-SIDE,LH,F.RED | 36002D | 36001-5362-B1 | 1 | ||
| COVER-SIDE,RH,F.RED | 36002E | 36001-5363-B1 | 1 | ||
| CASE-CHAIN | 36014 | 36014-1107 | 1 | ||
| BOLT,6X12,BLACK | 92001 | 92001-1956 | 2 | ||
| SCREW,6X14 | 92009 | 92009-1288 | 4 | ||
| PLUG,SIDE COVER | 92066 | 92066-1127 | 10 | ||
| GROMMET,SIDE COVER | 92071 | 92071-1043 | 2 |
| COVER-SIDE,LH,G.SILVE | |
| REF # | 36002B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,RH,G.SILVE | |
| REF # | 36002C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,LH,F.RED | |
| REF # | 36002D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,RH,F.RED | |
| REF # | 36002E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-CHAIN | |
| REF # | 36014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X12,BLACK | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X14 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PLUG,SIDE COVER | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| GROMMET,SIDE COVER | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
