Parts Diagrams |

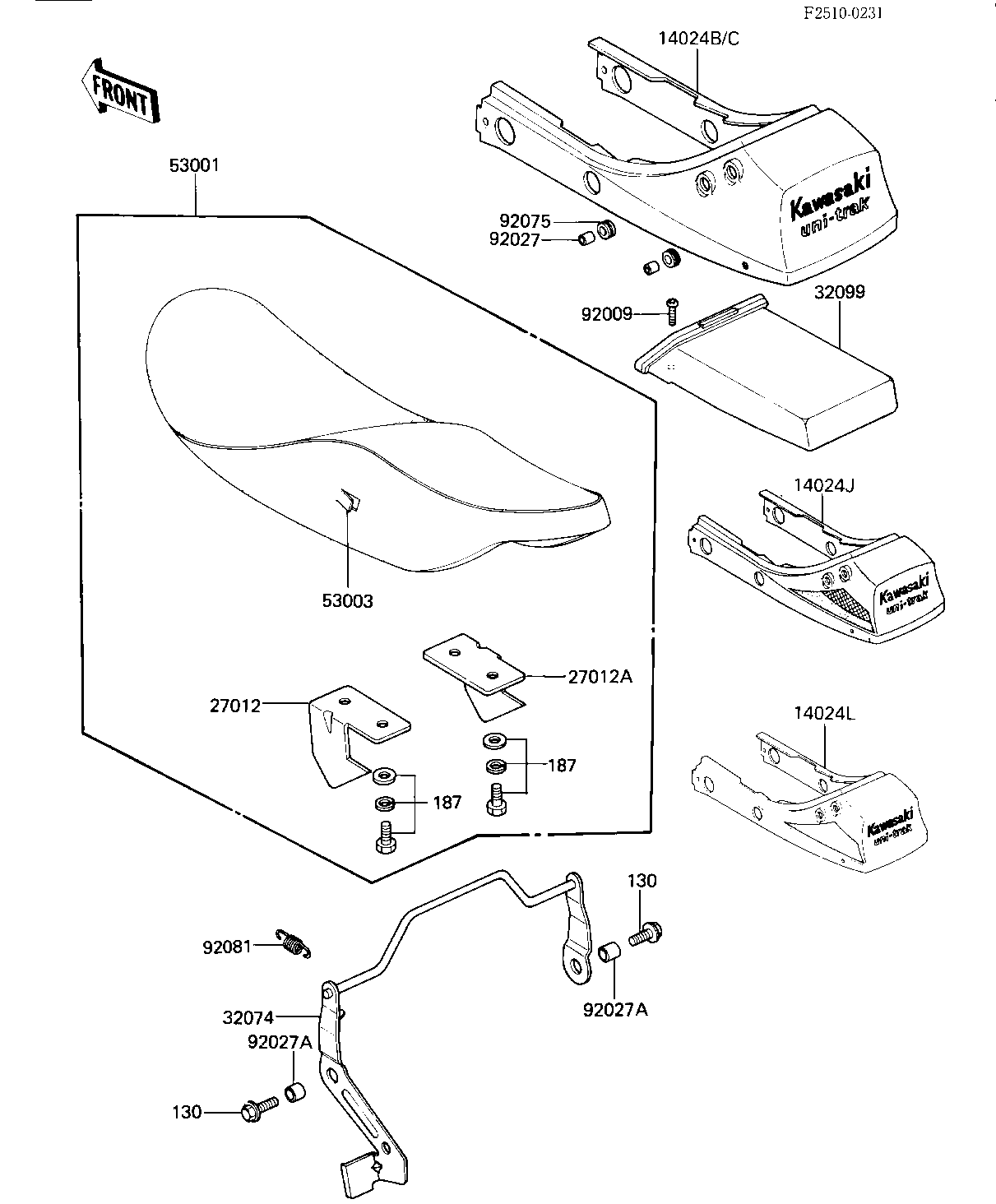

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,SEAT,F.RED | 14024B | 14025-5166-B1 | 1 | ||
| COVER,SEAT,G.SILVER | 14024C | 14025-5166-F2 | 1 | ||
| HOOK,SEAT,LH | 27012 | 27012-1045 | 1 | ||
| HOOK,SEAT,RH | 27012A | 27012-1046 | 1 | ||
| BRACKET-LOCK,SEAT | 32074 | 32074-1051 | 1 | ||
| CASE,TOOL | 32099 | 32099-1039 | 1 | CN,US | |
| SEAT-ASSY,DUAL | 53001 | 53001-1364 | 1 | ||
| LEATHER,SEAT | 53003 | 53003-1106 | 1 | ||
| SCREW,TAPPING,6MM | 92009 | 92009-1261 | 2 | CN,US | |
| COLLAR,6.8X10X8.5 | 92027 | 92027-129 | 4 | ||
| COLLAR,8.2X13X6 | 92027A | 92027-1565 | 2 | ||
| DAMPER RUBBER | 92075 | 92075-1028 | 4 | ||
| SPRING,HOOK RETURN | 92081 | 92081-1466 | 1 | ||
| BOLT-FLANGED,8X16,BLA | 130 | 130C0816 | 2 | ||
| BOLT 6X14 | 187 | 187B0614 | 4 |
| COVER,SEAT,F.RED | |
| REF # | 14024B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,SEAT,G.SILVER | |
| REF # | 14024C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOOK,SEAT,LH | |
| REF # | 27012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOOK,SEAT,RH | |
| REF # | 27012A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-LOCK,SEAT | |
| REF # | 32074 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE,TOOL | |
| REF # | 32099 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CN,US |
| SEAT-ASSY,DUAL | |
| REF # | 53001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEATHER,SEAT | |
| REF # | 53003 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,6MM | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | CN,US |
| COLLAR,6.8X10X8.5 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR,8.2X13X6 | |
| REF # | 92027A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SPRING,HOOK RETURN | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X16,BLA | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT 6X14 | |
| REF # | 187 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
