Parts Diagrams |

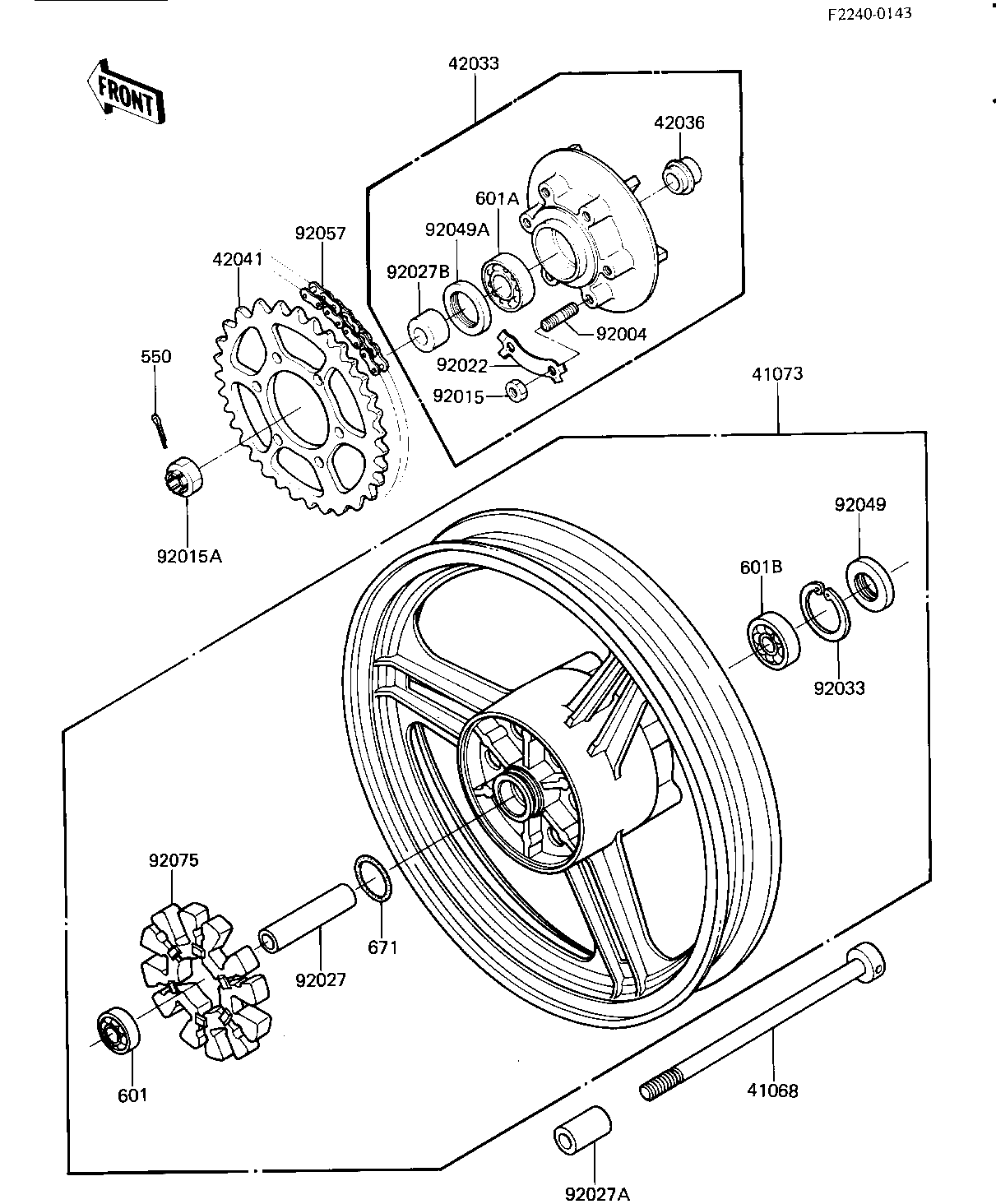

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| AXLE,RR | 41068 | 41068-1086 | 1 | ||
| WHEEL-ASSY,RR,M.GRAY | 41073 | 41073-1275-J9 | 1 | ||
| COUPLING-ASSY | 42033 | 42033-1053 | 1 | ||
| SLEEVE,L=25 | 42036 | 42036-1055 | 1 | ||
| SPROCKET-HUB,38T | 42041 | 42041-1165 | 1 | ||
| STUD,10X18 | 92004 | 92004-1062 | 6 | ||
| NUT 10MM | 92015 | 42045-005 | 6 | ||
| NUT CASTLE,16MM | 92015A | 92015-055 | 1 | ||
| WASHER,LOCK | 92022 | 92022-1212 | 3 | ||
| COLLAR,17X25X92 | 92027 | 92027-1545 | 1 | ||
| COLLAR,17X28X32 | 92027A | 92027-1569 | 1 | ||
| COLLAR,L=21 | 92027B | 92027-1661 | 1 | ||
| CIRCLIP,47M/M | 92033 | 92033-1042 | 1 | ||
| OIL SEAL,AG1556EO | 92049 | 92049-1056 | 1 | ||
| OIL SEAL WTC35527 | 92049A | 92052-006 | 1 | ||
| DR CHAIN EK520 104L | 92057 | 92057-1159 | 1 | ||
| DAMPER | 92075 | 92075-1436 | 1 | ||
| PIN-COTTER,4.0X35 | 550 | 550D4035 | 1 | ||
| BRG,BALL,#6203ZZC3 | 601 | 601B6203ZZ | 1 | ||
| BEARING BALL #6205 | 601A | 601B6205 | 1 | ||
| BRG,BALL,#6303ZZC3 | 601B | 601B6303ZZ | 1 | ||
| O RING | 671 | 671B2550 | 1 |
