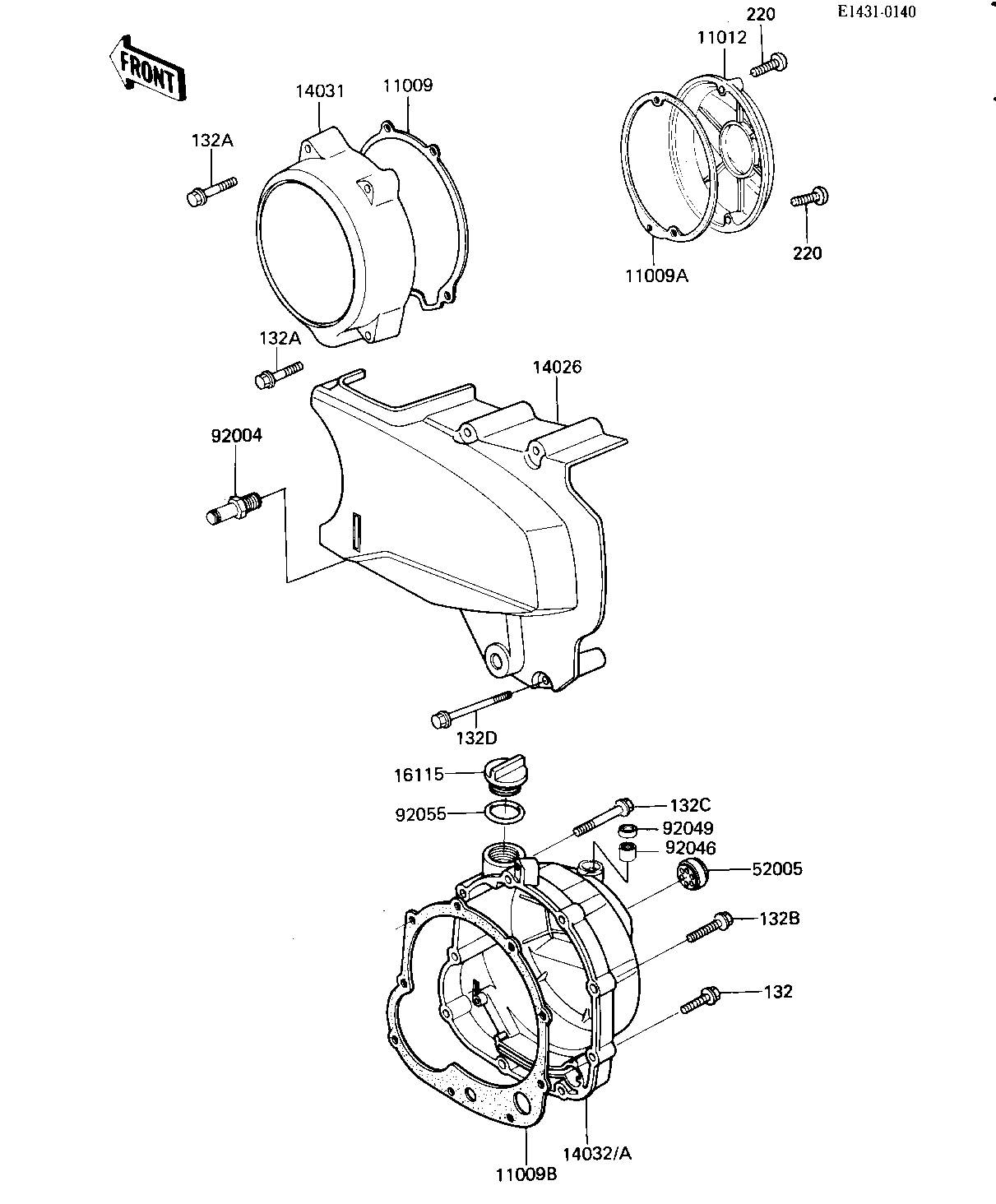

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,GENERATOR COVE | 11009 | 11060-1055 | 1 | ||
| GASKET,PULSING COIL C | 11009A | 11060-1053 | 1 | ||
| GASKET,CLUTCH COVER | 11009B | 11060-1054 | 1 | ||
| CAP,PULSING COIL,BLAC | 11012 | 11012-1287 | 1 | ||
| COVER-CHAIN | 14026 | 14026-1087 | 1 | ||
| COVER-GENERATOR | 14031 | 14031-1116 | 1 | ||
| COVER-CLUTCH | 14032A | 14032-1255 | 1 | ||
| CAP-OIL FILLER | 16115 | 16115-1009 | 1 | ||
| GAUGE,OIL LEVEL | 52005 | 52005-1009 | 1 | ||
| STUD,CHANGE LEVER PIV | 92004 | 92004-1038 | 1 | ||
| BEARING,NEEDLE,HK1210 | 92046 | 92046-1010 | 1 | ||
| SEAL-OIL | 92049 | 92049-1271 | 1 | ||
| "0" RING,31MM | 92055 | 92055-049 | 1 | ||
| BOLT-FLANGED-SMALL | 132 | 132J0630 | 4 | ||
| BOLT-FLANGED-SMALL | 132A | 132J0640 | 4 | ||
| BOLT-FLANGED-SMALL | 132B | 132J0645 | 3 | ||
| BOLT-FLANGED-SMALL | 132C | 132J0660 | 2 | ||
| BOLT-FLANGED-SMALL | 132D | 132J0670 | 4 | ||
| SCREW-PAN HEAD,6X30 | 220 | 220C0630 | 2 |
