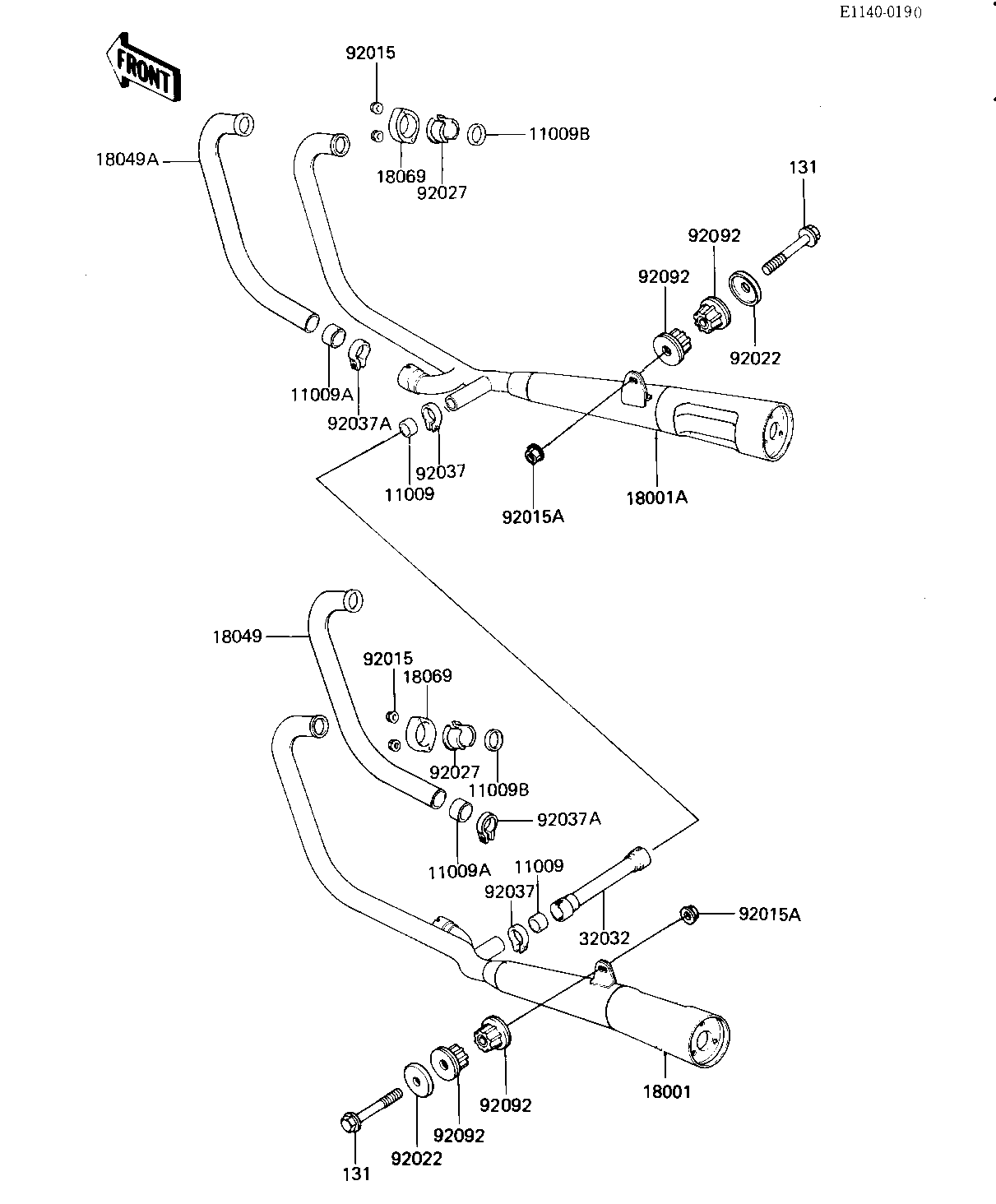

1986 GPz - MUFFLER

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,MUFFLER CONNEC 11009 11060-1051 2
GASKET,EXHAUST PIPE C 11009A 11009-1667 2
GASKET,EXHAUST PIPE H 11009B 11009-1866 4
MUFFLER,LH 18001 18001-1486 1
MUFFLER,RH 18001A 18001-1487 1
PIPE-EXHAUST,#2 18049 18049-1219 1
PIPE-EXHAUST,#3 18049A 18049-1220 1
HOLDER-EXHAUST PIPE,F 18069 18069-1021 4
PIPE,MUFFLER CONNECTI 32032 32032-1690 1
NUT,CAP 6MM,BLACK 92015 92015-1170 8
NUT,FLANGED,10MM 92015A 92015-1387 2
WASHER 92022 92022-1355 2
COLLAR,39.5X30,F.BLAC 92027 92027-1451 8
CLAMP,37MM,BLACK 92037 92037-1464 2
CLAMP,42MM,BLACK 92037A 92037-1350 2
BUSHING-RUBBER 92092 92092-1013 4
BOLT-FLANGED,10X55 131 131J1055 2
