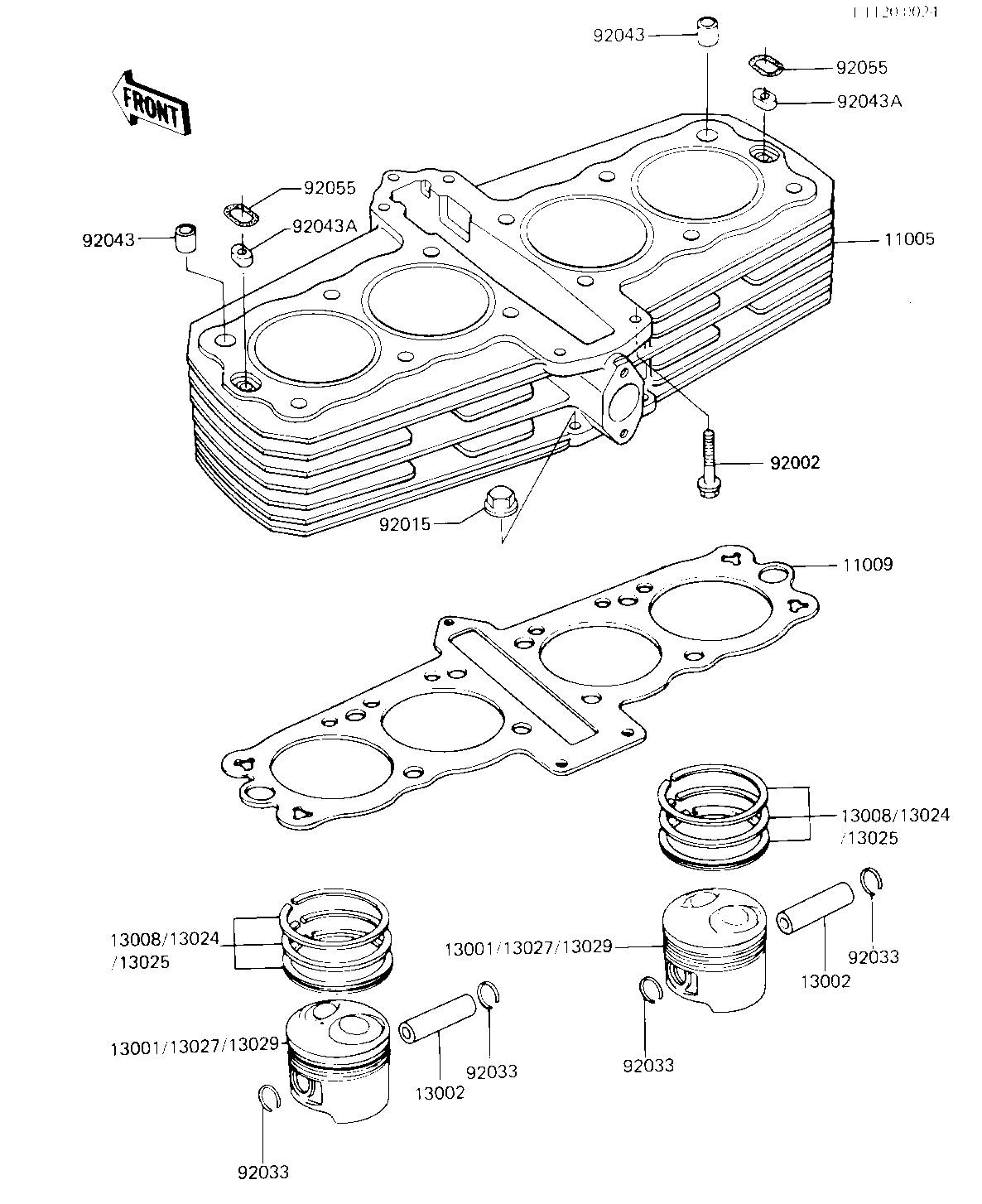

1986 GPz - CYLINDER/PISTONS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CYLINDER-ENGINE 11005 11005-1313 1
GASKET,CYLINDER BASE 11009 11009-1932 1
PISTON-ENGINE,STD 13001 13001-1166 4
PIN-PISTON 13002 13002-1012 4
RING-SET-PISTON,STD 13008 13008-1009 4
RING-SET-PISTON-LL 13024 13024-1010 4
RING-SET-PISTON-L 13025 13025-1010 4
PISTON-ENGINE LL,0/S, 13027 13027-1112 4
PISTON-ENGINE L,0/S,0 13029 13029-1111 4
BOLT,6X28 92002 92002-1104 5
NUT,CAP 6MM,BLACK 92015 92015-1170 3
CIRCLIP,PISTON 92033 92033-1050 8
PIN,DOWEL,12MM 92043 92042-031 2
PIN,OIL LINE 92043A 92043-1210 2
RING-O 92055 92055-1147 2
